Disassembly

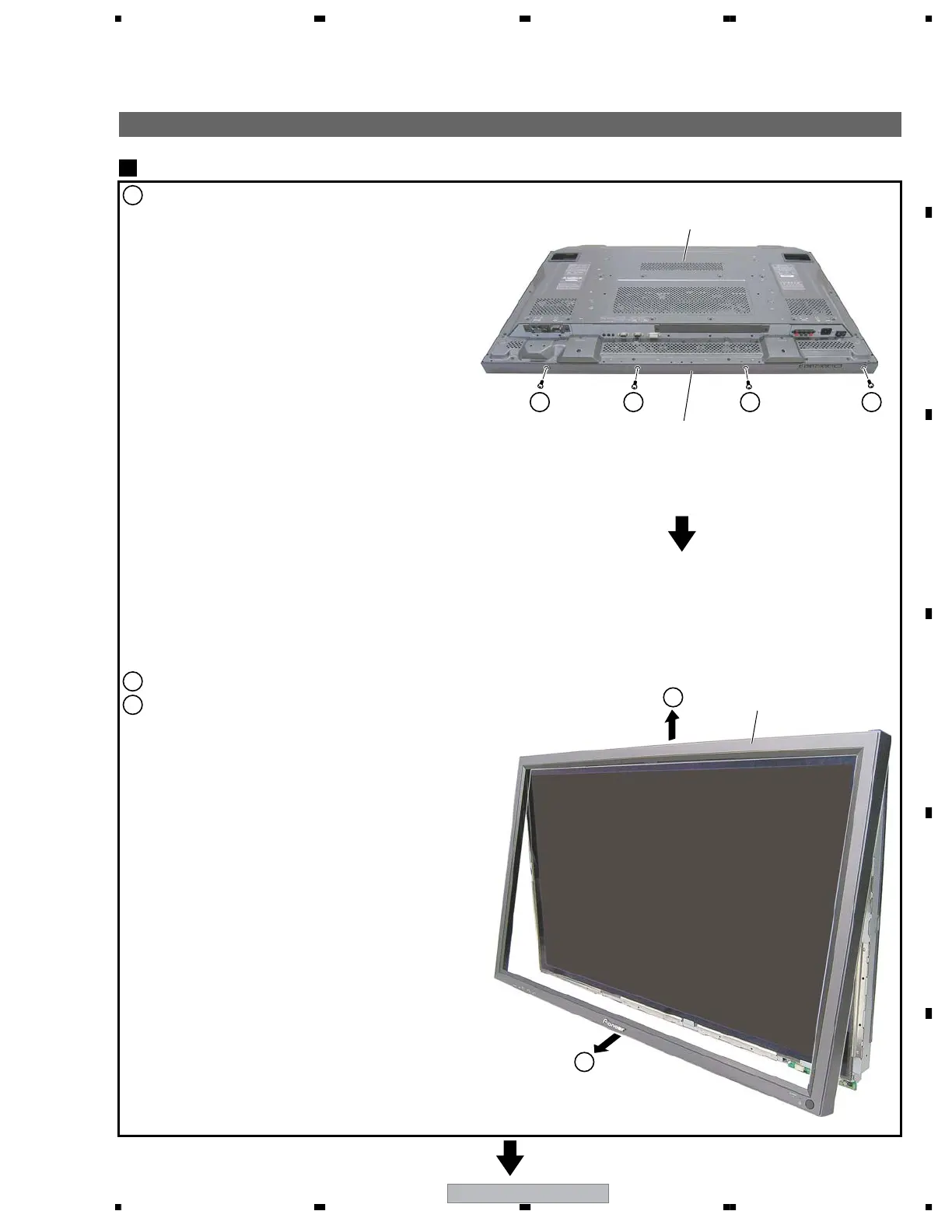

Front Case Assy (425CMX)
1
1
Remove the four screws. (AMZ30P060FTB)
2
Pull the lower part of the Front case Assy (425CMX) toward you and out.
3
Remove the Front case Assy (425CMX), by pulling it upward.
Front case Assy (425CMX)
Front case Assy (425CMX)
Rear case
1
2
3
