PDP-427CMX
6
1234
1234
C
D
F
A
B
E
• EXPLODED VIEWS
PDP SERVICE ASSY

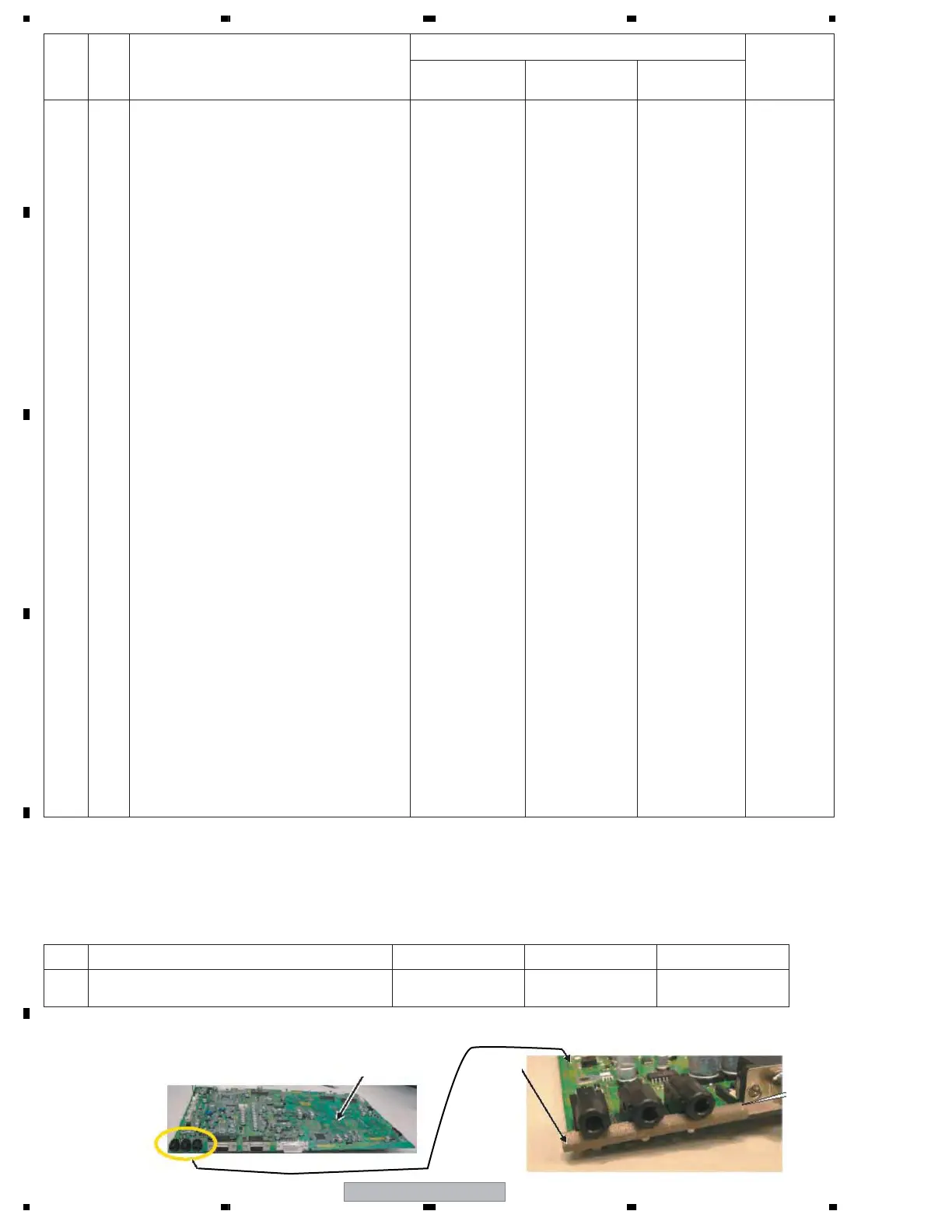

AWU1181 and AWU1160 are constructed the same except for the following:
CHASSIS SECTION
11-39
Image Stick Caution Sheet ARM1299 ARM1299 Not used
FRONT and REAR SECTION
13- 6
NSP
Name Label AAL2726 AAL2906 AAL2907
13-11 Caution Label AAX3253 AAX3465 AAX3465
11-13 Front Case Assy AMB2885 AMB2980 AMB2980
11-14 Filter AMR3510 AMR3662 AMR3662
11-16 Pioneer Badge AAM1101 AAM1112 AAM1112
11-17 Control Cover AMR3512 AMR3622 AMR3622
FRAME SECTION
19- 8 Front Chassis U Assy ANA1907 ANA2067 ANA2087
19- 9 Front Chassis R Assy ANA1918 ANA2084 ANA2084
19-10 Front Chassis LA Assy ANA1926 ANA2085 ANA2085
19-25 Gasket (0.5x5x30) ANA1823 ANA1913 ANA1913
CHASSIS SECTION
23- 8 Flexible Cable (J110) ADD1330 ADD1378 ADD1378
23- 9 Flexible Cable (J117) ADD1331 ADD1379 ADD1379
23-10 Flexible Cable (J119) ADD1332 ADD1380 ADD1380
23-11 Flexible Cable (J120) ADD1333 ADD1381 ADD1381
23-12 Flexible Cable (J211) ADD1334 ADD1382 ADD1382
23-16 PCB Spacer AEC1941 AEC2087 AEC2087
Gasket AUDIO Not used ANK1905 ANK1905
No. 8
PDP SERVICE ASSY SECTION
23- 1 PDP Serviice Assy 42H6D1 AWU1160 AWU1181
AWU1181
FRONT FRAME SECTION
Gasket (0.5x5x30) Not used ANK1823
ANK1823 No. 1
Gasket (T7x10x220) Not used ANK1923
ANK1923 No. 2
Gasket (T7x10x130) Not used ANK1924
ANK1924 No. 3
Gasket (T7x10x50) Not used ANK1925
ANK1925 No. 4
Conductive Tape A (W20x490) Not used ANK1934
ANK1934 No. 5
Conductive Tape B (W20x260) Not used ANK1935
ANK1935 No. 6
Conductive Tape C (W20x60) Not used ANK1930
ANK1930 No. 7
Ref. No.
Mark Symbol and Description
Rart No.
Remarks
PDP-425CMX
/LUC5
PDP-427CMX
/LUC
PDP-42MXE20
/TYVP5
Notes : • The numbers in the remarks column correspond to the numbers on the “ EXPLODED and FRONT FRAME SECTION ”.
• For PCB ASSEMBLIES, Refer to “CONTRAST OF PCB ASSEMBLIES”, “7. SCHEMATIC DIAGRAM” and “8. PCB
CONNECTION DIAGRAM” .
Mark Symbol and Description AWU1160 AWU1181 Remarks
NSP Panel Chassis (FT)Assy AWU1136 AWU1168
MAIN Assy
No. 8
Gasket
AUDIO
To Next Page
