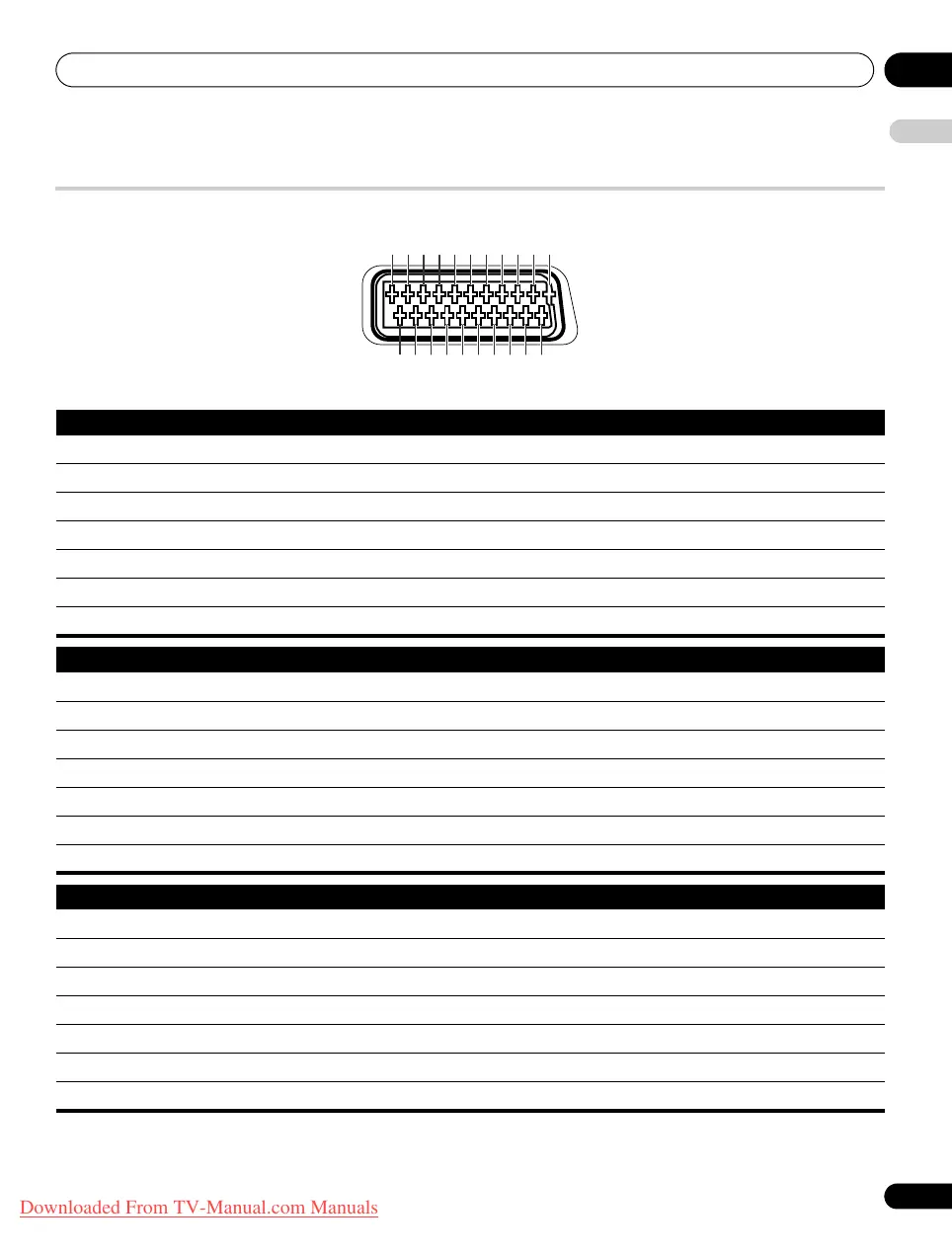

SCART pin assignments
Various audio and video devices may be connected via the SCART terminals.
SCART (INPUT 1)
1 Audio right output 2 Audio right input 3 Audio left output
4 Common earth for audio 5 Earth for Blue 6 Audio left input
7 Blue input 8 Audio-video control 9 Earth for Green
10 Not used 11 Green input 12 Not used
13 Earth for Red 14 Earth for Red/Green/Blue control 15 Red input
16 Red/Green/Blue control 17 Earth for Video output 18 Earth for Video input
19 Video output 20 Video input 21 Plug shield
SCART (INPUT 2)
1 Audio right output 2 Audio right input 3 Audio left output
4 Common earth for audio 5 Earth 6 Audio left input
7 Not used 8 Audio-video control 9 Earth
10 AV link control 11 Not used 12 Not used
13 Earth 14 Earth 15 Chroma S-Video input
16 Not used 17 Earth for Video output 18 Earth for Video input/S-Video input
19 Video output 20 Video input/S-Video input 21 Plug shield
SCART (INPUT 3)
1 Audio right output 2 Audio right input 3 Audio left output
4 Common earth for audio 5 Earth for Blue 6 Audio left input
7 Blue input 8 Audio-video control 9 Earth for Green
10 AV link control 11 Green input 12 Not used
13 Earth for Red 14 Earth for Red/Green/Blue control 15 Chroma S-Video input
16 Red/Green/Blue control 17 Earth for Video output 18 Earth for Video input/S-Video input
19 Video output 20 Video input/S-Video input 21 Plug shield
1 3 5 7 9 11 13 15 17 19 21
2 4 6 8 10 12 14 16 18 20
