PDP-S50

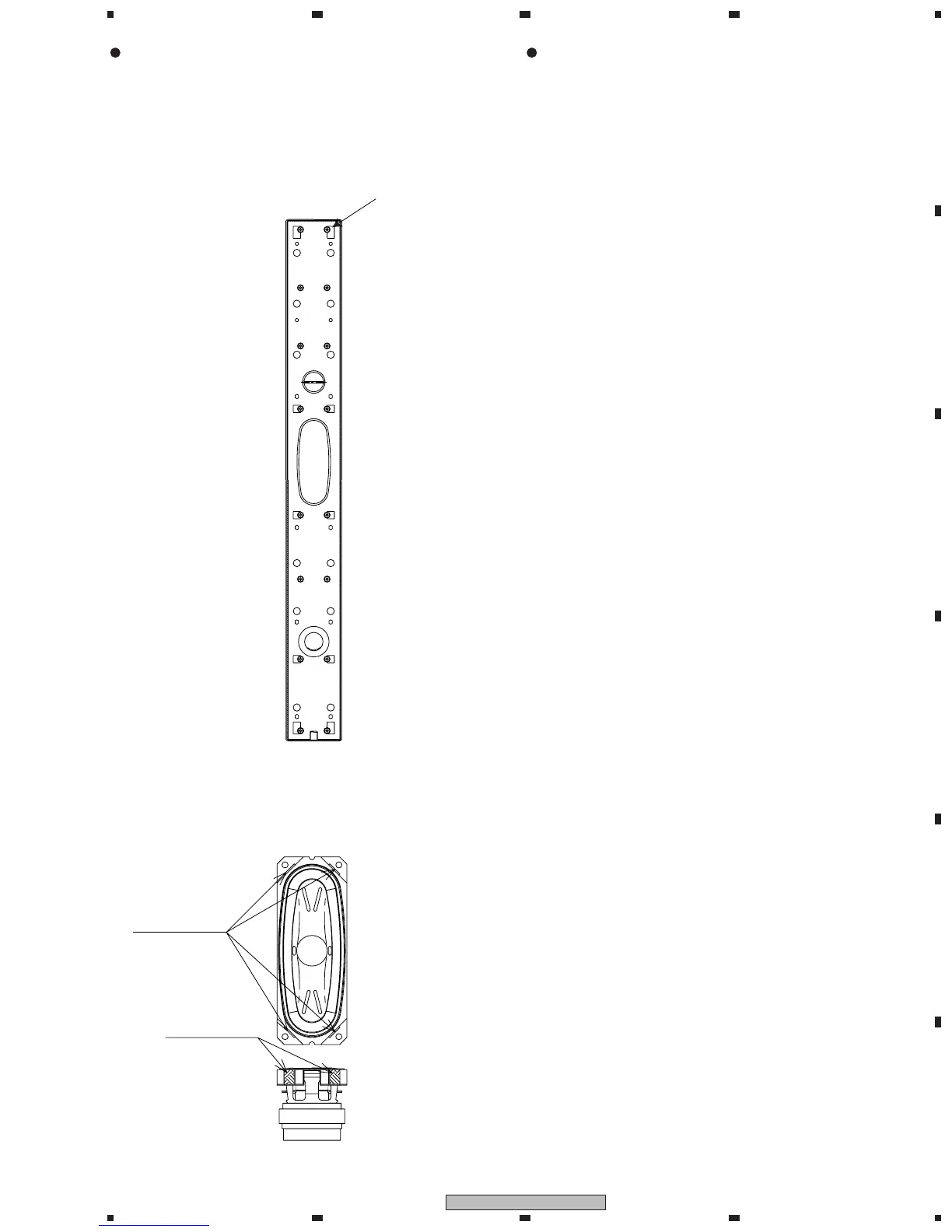

The woofer is attached to the baffle by 4 internal screws. To
detach it, first remove the baffle from cabinet by unfastening
external 16 screws. Then unfasten those screws. When attach-
ing it, face its plus terminal downward.
When changing it, stick the felt(SED1123 4pcs.) on the speci-
fied position of the woofer frame.
16 SCREWS
(BPZ40P100FTB)
Baffle
The tweeter is attached to the baffle by 2 internal screws. To
detach it, first remove the baffle from cabinet. Then unfasten
those screws. When attaching it, face its plus terminal (bigger
terminal) rightward.
LOCATIONS TO FIX FELT
Felt
(SED1123)
Felt
(SED1123)
