Pioneer PDP-S50 Service Manual

4
1
23
4
1234
C
D
F
A
B
E
PDP-S50
NSP 10 Accessory Set SME3676
NSP Polyethylene Bag S1 KHL1079
NSP Screws Set SME3677
Screw BMZ50P100FTB
NSP Polyethylene Bag S0 KHL1081
Speaker Wire Set SME3678
NSP Polyethylene Bag S0 KHL1081
NSP Speaker Wire SDS1189
NSP 11 Bracket Assy Set SME3681
12 Case SHA2513
13 Case SHA2514
14 Protection Sheet S1 SHC1831
15 Protection Sheet SHC1837
16 Protection Sheet SHC1838
17 Bracket (L-Top) Assy SXG1090
18 Bracket (L-Bot) Assy SXG1091
19 Bracket (R-Top) Assy SXG1092
20 Bracket (R-Bot) Assy SXG1093
1 Foam Pad SHA2512
2 Protector SHB1168
3 Protector SHB1169
4 Packing Case SHG2750
5 Packing Bag S2 SHL1363
NSP 6 Label Serial SRW1087
NSP 7 CS ASSY SMW1943
8 Gasket Set SME3674
NSP Gasket SEC1978
NSP Polyethylene Bag S2 SHL1309
NSP 9 Inst. Manual Set SME3732
NSP Polyethylene Bag S2 SHL1309
Operating Instructions SRD1327
(English, French)

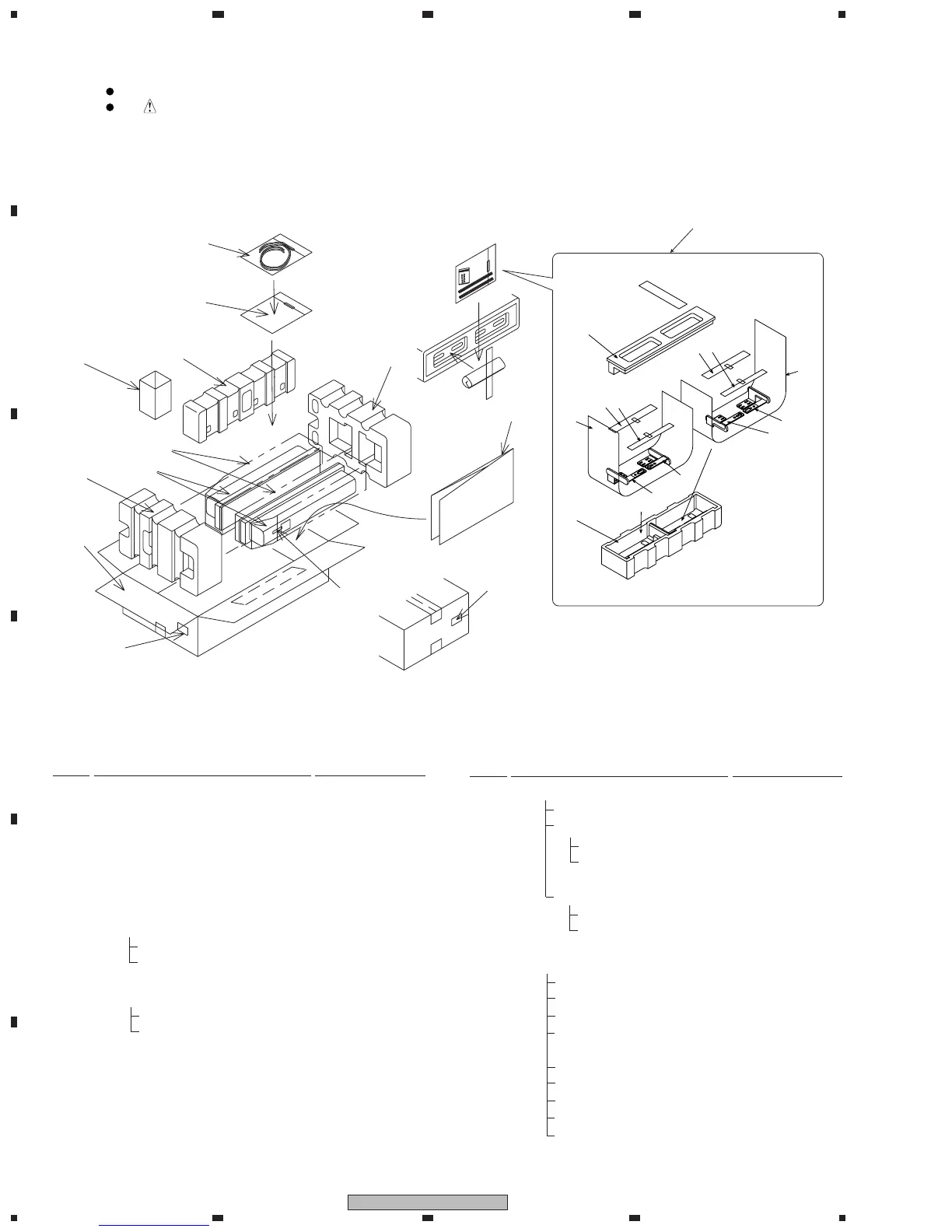

2.EXPLODED VIEW
2.1 PACKING
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
NOTES:
PACKING PARTS LIST
Mark No. Description Part No.
Mark No. Description Part No.
8
9
11
2
1
5
7
4
6
1
10
3
6
12
15
16
14
13
19
20
18
17
14
15
16
