Pioneer PDP-S50 Service Manual

5
1
234
1
2
3
4
C
D
F
A
B
E
PDP-S50
Mark No. Description Part No.
Mark No. Description Part No.
1 Bracket (L-Top) ASSY SXG1090
NSP 2 Label(L-Top) SAK1016
3 Gasket SEC1979
4 Gasket SEC1980
NSP 5 Tape SEH1078
NSP 6 Bracket(L-Top) SNA1451
NSP 7 Cover L-T SNN1058
8 Bracket (L-Bot) ASSY SXG1091
NSP 9 Label(L-Bottom) SAK1017
10 Gasket SEC1979
11 Gasket SEC1981
NSP 12 Tape SEH1078
NSP 13 Bracket(L-Bottom) SNA1452
NSP 14 Cover L-B SNN1059

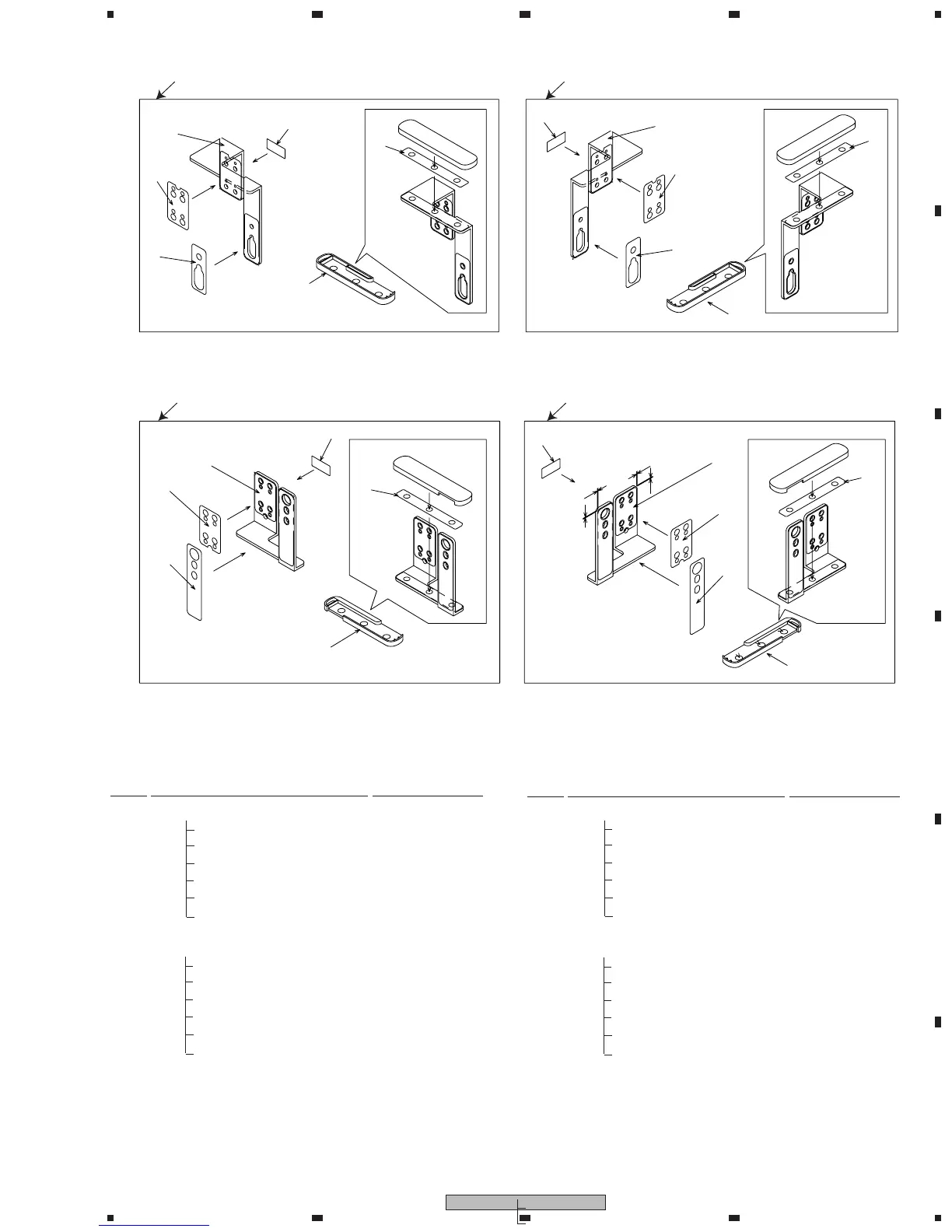

2.2 BRACKET ASSY
15 Bracket (R-Top) ASSY SXG1092
NSP 16 Label(R-Top) SAK1018
17 Gasket SEC1979
18 Gasket SEC1980
NSP 19 Tape SEH1078
NSP 20 Bracket(R-Top) SNA1453
NSP 21 Cover R-T SNN1060
22 Bracket (R-Bot) ASSY SXG1093
NSP 23 Label(R-Bottom) SAK1019
24 Gasket SEC1979
25 Gasket SEC1981
NSP 26 Tape SEH1078
NSP 27 Bracket(R-Bottom) SNA1454
NSP 28 Cover R-B SNN1061
BRACKET ASSY PARTS LIST
(1
)
(1)
(1
)
(1)
27
24
25
23
Bracket (L-Top) ASSY
Bracket (L-Bot) ASSY
Bracket (R-Top) ASSY
Bracket (R-Bot) ASSY
6
3
4
2
7
5
13
10
11
9
14
12
1
15
22
8
26
28
21
16
20
17
18
19
