Pioneer PDP-S50 Service Manual

7
1
234
1
2
3
4
C
D
F
A
B
E
PDP-S50
CS ASSY PARTS LIST
Mark No. Description Part No.
Mark No. Description Part No.
Network ASSY (SWN1781)

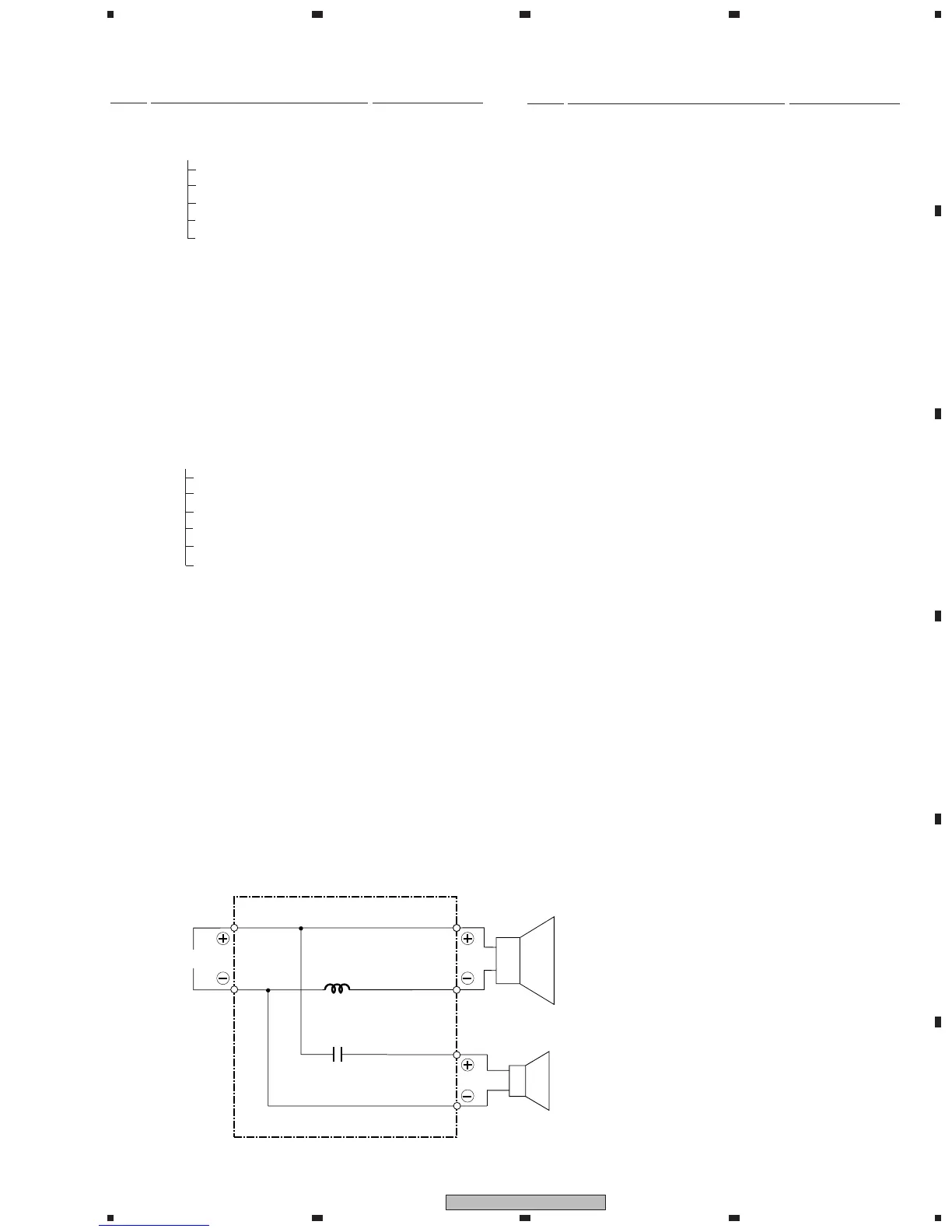

3.SCHEMATIC DIAGRAM
NSP 1 Cabinet SNK2899
NSP 2 Baffle SNK2941
3 Grille ASSY SMG1877
NSP Grille Cloth SAS1598
NSP Felt SED1125
NSP Double Face Tape SEH1062
NSP Grille Frame SMH1119
NSP Cosmetic Frame SNK2942
NSP 4 Gasket SEC1969
5 Screw BPZ40P100FTB
NSP 6 Gasket SEC1970
7 Speaker FK26AP32-55L
8 Speaker H132DC65-51F
NSP 9 Gasket SEC1971
NSP 10 MDF Bar SLX1162
11 Felt SED1123
NSP 12 Gasket SEB1255
13 Gasket SEC1724
14 Input Terminal SKX1097
NSP Spring KBH1002
NSP Terminal SKF1062
NSP Terminal SKF1063
NSP Case SNK2901
NSP Lever (Black) SNK2902
NSP Lever (Red) SNK2903
NSP 15 Felt SED1133
NSP 16 Port Tube Ring 26 SMR1382
NSP 17 Paper Tube 26 SMR1396
NSP 18 Insert Nut M5 SBN1056
NSP 19 Model Label SAN3887
NSP 20 Label Serial SRW1083
21 Tape SEH1077
22 Tape SEH1088
23 Gasket SEC1972
NSP 24 Gasket SEB1296
25 Screw BPZ30P080FTB
26 Screw BPZ35P080FTC
NSP 27 Packing SEB1244
NSP 28 Acoustic Absorbent SMT1243
NSP 29 Gasket SEB1295
NSP 30 Gasket SEC1967
NSP 31 Gasket SEB1294
NSP 32 Gasket SEC1965
NSP 33 Acoustic Absorbent SMT1297
NSP 34 Gasket SEC1966
NSP 35 Acoustic Absorbent SMT1298
NSP 36 Gasket SEC1968
NSP 37 Gasket SEC1973
38 Network ASSY SWN1781
39 Screw BPZ40P300FTC
40 Screw BPZ35P140FTC
NSP 41 Acoustic Absorbent SMT1299
NSP 42 Felt SED1113
43 Tape SEH1076
44 Tape SEH1094
Woofer
Tweeter
I NPUT
Red
Blue
White
White
1.8 µF/100 V
C
L
0.9 mH
