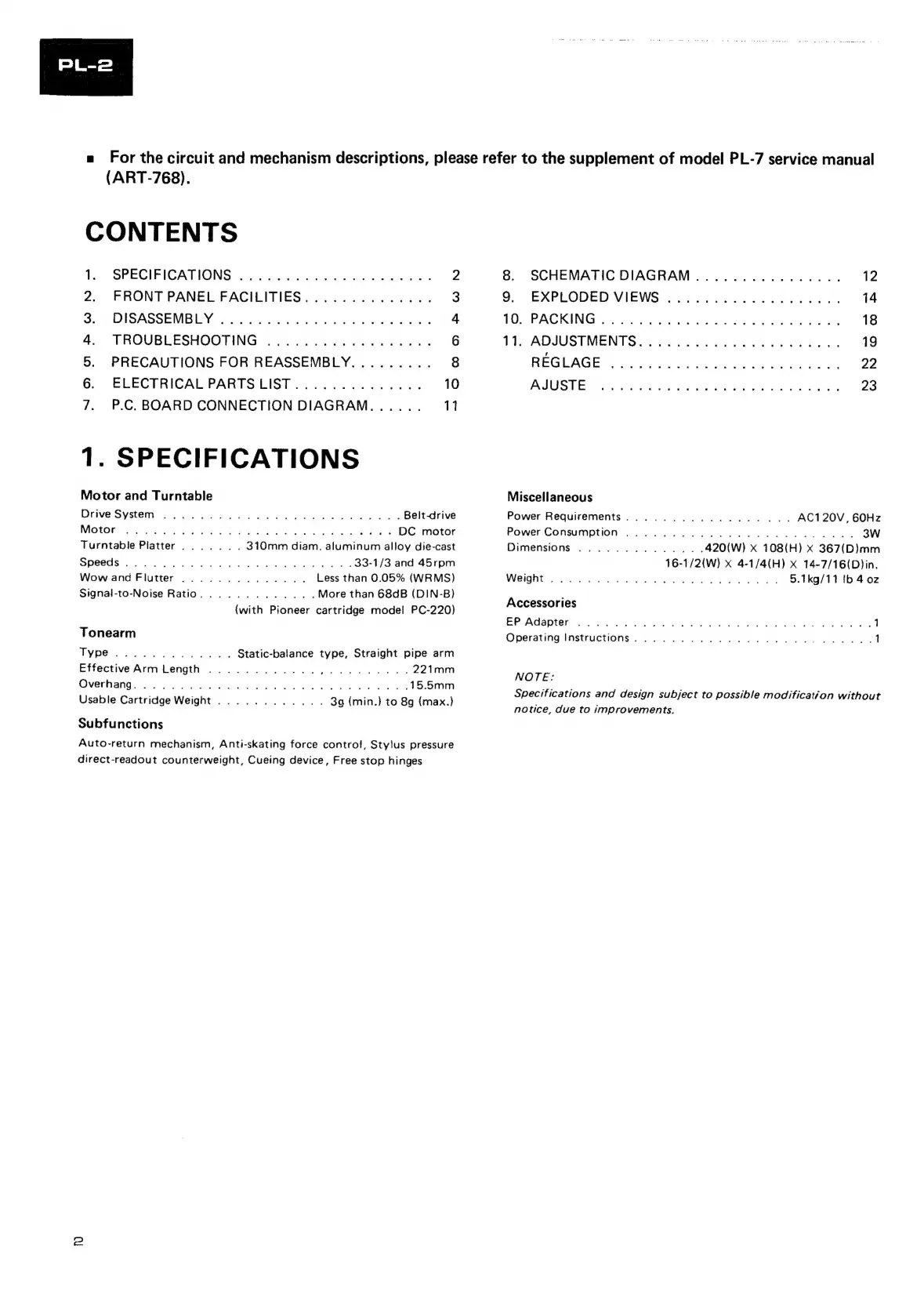

a
For
the
circuit
and
mechanism
descriptions,
please
refer
to
the
supplement
of
model
PL-7
service
manual
(ART-768).
CONTENTS
1, SPECIFICATIONS .2%.cex weds 4 be eee wes 2
2. FRONT PANEL FACILITIES.............. 3
Gs: DISASSEMBLY se ssnak ing. eS soceare. geet et ots 4
4. TROUBLESHOOTING ..............0005. 6
5. PRECAUTIONS FOR REASSEMBLY......... 8
6. ELECTRICAL PARTS LIST.............. 10
7. P.C. BOARD CONNECTION DIAGRAM...... 11
1. SPECIFICATIONS
Motor and Turntable
Drive SystOm 6.446 Se Pewee Ee we Hw SH le Belt-drive
WONG siege Bog eae Se Ay ee 8 Ok Bok See ees DC motor
Turntable Piatter ....... 310mm diam. aluminum alloy die-cast
DP RCGS x 8s Cader ab A ae ey le be ae SE eck 3d 33-1/3 and 45rpm
Wow and Flutter .............. Less than 0.05% (WRMS)
Signal-to-Noise Ratio. .........2... More than 68dB (DIN-B)
(with Pioneer cartridge model PC-220)
Tonearm
MEY cs Sth a So ct tees ae 3s Static-balance type, Straight pipe arm
Effective Arm Length ............,.....004. 221mm
OVOCIVANG e253 i eh, ed ee eee ee es Ge Ot eo es 15.5mm
Usable Cartridge Weight ...... . 3a (min.) to 8g (max.)
Subfunctions
Auto-return mechanism, Anti-skating force contro!, Stylus pressure
direct-readout counterweight, Cueing device, Free stop hinges
8. SCHEMATIC DIAGRAM ................ 12
9. EXPLODED VIEWS ....6.40 625 coi bees 14
TO APACKING:s.2. 22 5 dh ace a) & dard, & dee oe & Oh St 18
1d: ADJUSTMENTS £54 c wea sd BES aas DAs ¥ 19
REGULAGE 5k caaacie eee oe ecey aet 22
PSUISTE ieee oa ee ko ele ee als 23
Miscellaneous
Power Requirements.................. AC120V, 6OHz
Power Consumption 2 4.66 3066 Ge ers BA ER SL ES Su 3W
Dimensions .............., 420(W) X 108(H) X 367(D)mm
16-1/2(W) x 4-1/4(H) X 14-7/16(D)in.
WV SIE cs oes sa, Ses ee ee, Bt ae eo i Ge dee he Ge 5.1kg/11 tb 4 oz
Accessories
EP AGapIer: a. 2 a: fos: whle eh ete ea OMe eb Oe Oe A a ik 1
Operating Instructions... ......000...0. 20.0000 2 eee. 1
NOTE:
Specifications and design subject to possible modification without
notice, due to improvements.
