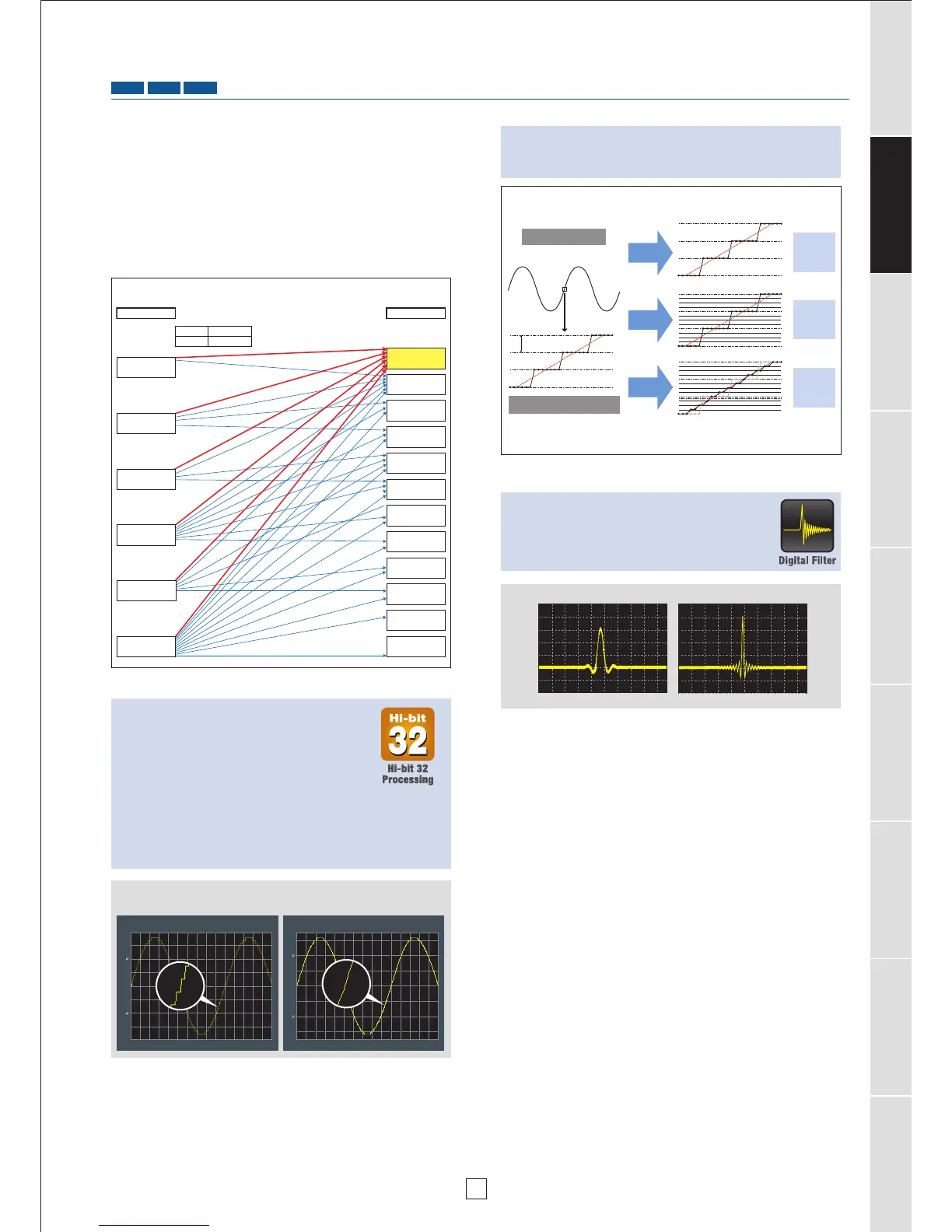

Pioneer SC-LX701 Product Reference Guide

10
Audio Technologies
AV RECEIVERS REFERENCE GUIDE
Audio Scaler
LX901 LX801 LX701
Pioneer’s Audio Scaler technology consists of Hi-bit32,
Up-Sampling, and Digital Filter. The Hi-bit32 Audio Processing
improves resolution and density, while the Up-Sampling reduces
noise. Then the Digital Filter creates soft, natural sound and
improves transient response and pre-echo effect. The three
features integrate to upscale all 2-channel audio content up to
176.4 kHz/192 kHz 32-bit playback—176.4 kHz/192 kHz 32-bit by
auto, and selectable from 176.4/192, 88.2/96, 44.1/48 kHz
frequency, 32/24-bit rate by manual setting—offering realistic
reproduction of the content. The features can be controlled on the
Sound Explorer screen of the iControlAV5 app.
Hi-bit32 Audio Processing
The technology works to create undistorted sound,
bringing out the best in the 32-bit DAC. The 32-bit
DAC hardware alone does not reproduce better
sound. Maximum performance is gained
by applying the Hi-bit32 processing to expand signal
resolution, creating more detailed, smooth sound,
closer to the original analogue signal. Hi-bit32 Audio
Processing also increases the sound pressure for a tactile listening
experience, and the more channels you have, the more impressive it
becomes. It is effective for multi-channel content on DVD/Blu-ray
Disc as well as CD audio, and works with any disc player.
Up-Sampling (192 kHz/32-bit)
The Up-Sampling feature of the Audio Scaler upgrades the sound
with reduced noise, providing maximum quality audio playback of
up to 192 kHz/32-bit.
Digital Filter
The digital filter lets you enjoy two types of sound
characters by switching the DAC—“Slow” for soft and
warm, and “Sharp” for solid and tight sound.
Input
176.4 kHz/192 kHz
32-bit
176.4 kHz/192 kHz
16-bit/24-bit
88.2 kHz/96 kHz
32-bit
44.1 kHz/48 kHz
32-bit
44.1 kHz/48 kHz
16-bit/24-bit
Output
176.4 kHz/192 kHz
32-bit
SHARP
176.4 kHz/192 kHz
32-bit
SLOW
176.4 kHz/192 kHz
16-bit/24bit
SLOW
176.4 kHz/192 kHz
16-bit/24bit
SHARP
88.2 kHz/96 kHz
32-bit
SLOW
88.2 kHz/96 kHz
32-bit
SHARP
88.2 kHz/96 kHz
16-bit/24-bit
SLOW
88.2 kHz/96 kHz
16-bit/24-bit
SHARP
44.1 kHz/48 kHz
32-bit
SLOW
44.1 kHz/48 kHz
32-bit
SHARP
44.1 kHz/48 kHz
16-bit/24-bit
SLOW
44.1 kHz/48 kHz
16-bit/24-bit
SHARP
88.2 kHz/96 kHz
16-bit/24-bit
2ch only
Auto
Manual
Red
Red + Blue
Audio Scaler Upscaling
24-bit vs 32-bit signal wave form comparison
Actual Effects
1
0
Level Ch1/FS
Time / s
0 2m 4m 6m 8m 10m 12m 14m
-1
Level Ch2/FS
1
0
Level Ch1/FS Level Ch2/FS
Time / s
0 2m 4m 6m 8m 10m 12m 14m
-1
32-bit Extension Processing 24-bit Processing
32-bit resolution
32-bit resolution
24-bit resolution
24-bit resolution
24-bit resolution
input signals
Close up
24-bit sine wave
32-bit DAC +
Hi-bit32
32-bit DAC
Previous
24-bit DAC
DAC + signal
processing
–> closer to
original signal
(in red)
DAC alone
makes no
difference
Previous
24-bit Signals
Red: original analog signals (ideal)
Black: 24-bit digital signals (actual)
Bit expansion processing required to bring out the real
performance from 32-bit DAC.
Effects of Bit Expansion Processing
Digital Filter
Slow
Short
Sharp
Slow
Short
Sharp
Slow Sharp
Multi-Channel
Stereophonic Philosophy
Audio
Technologies
Video
Technologies
Audio Formats
Sophisticated
Listening Modes
Connectivity Network Features Advanced Control Construction

Pioneer SC-LX701 Specifications

General

Display	-
Product color	Silver
Audio decoders	DTS 96/24, DTS-ES, DTS-HD, DTS-HD HR, DTS-HD Master Audio, Dolby Digital Plus, Dolby Surround, Dolby TrueHD
Audio amplifier	Yes
Apple docking compatibility	Not supported
Receiver type	Surround
Frequency range	20 - 20000 Hz
Audio output channels	9.2 channels
Dynamic power per channel (4 Ohm)	220 W
Power output per channel (1KHz@6 Ohm)	185 W
Power output per channel (1KHz@8 Ohm)	135 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	8
Digital audio optical in	3
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	2
Headphone connectivity	3.5 mm
Multichannel audio output type	Terminals
Speakers connectivity type	Binding post
Audio formats supported	AAC, AIFF, ALAC, DSD, FLAC, MP3, WAV, WMA
Bluetooth version	4.1
Bluetooth profiles	A2DP, AVRCP
Supported radio bands	AM, FM
Preset stations quantity	40
Internet radio services supported	Pandora, TuneIn
Card reader integrated	No
AC input voltage	220-230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.15 W
Power consumption (typical)	310 W
Supported video modes	1080p, 2160p
Cables included	AC

Weight and Dimensions

Depth	441 mm
Width	435 mm
Height	185 mm
Weight	15300 g
