Speaker combinations
In any of the combinations, up to two powered subwoofers can be connected.
Points to note with speaker combinations
＊ 1: It is not possible to use Speaker B, Bi-AMP, and ZONE speakers at the same time. However, with 2.1
ch to 7.1 ch, it is possible to use Bi-AMP (FRONT) and ZONE 2 speakers at the same time.
＊ 2: You can also use Bi-Amping connections with Speakers B.
＊ 3: If you have not connected ZONE 3 speakers in another room but have only connected ZONE 2
speakers, connect the ZONE 2 speakers to the HEIGHT 1 jacks. However, if you want to use at the
same time as Bi-AMP (FRONT), connect the ZONE 2 speakers to the HEIGHT 2 jacks.
＊ 4: If front speakers are to be Bi-Amping connected, height speakers need to be connected to the
HEIGHT 2 jacks.
＊ 5: ZONE 2 speakers need to be connected to the HEIGHT 1 jack, ZONE 3 speakers need to be
connected to the SURROUND BACK jacks, and height speakers need to be connected to the
HEIGHT 2 jacks.
＊ 6: This unit consists of a 9 ch amplifier, so when using a Bi-Amping connection for the front speakers,
use an RCA cable to connect the power amplifier to the PRE OUT HEIGHT 2 jacks, then connect the
height speakers to the power amplifier.
＊ 7: This unit consists of a 9 ch amplifier, so with this combination use an RCA cable to connect the power
amplifier to the PRE OUT SURR BACK jacks, then connect the surround back speakers to the power
amplifier.
HEIGHT 1/HEIGHT 2
When connecting 2 sets of height speakers, the height speaker combinations you can choose are as follows.
– Height 1 Speaker: Top Middle, Height 2 Speaker: Rear High
– Height 1 Speaker: Front High, Height 2 Speaker: One of Rear High/Top Middle/Top Rear/Dolby Enabled
Speaker (Surround)/Dolby Enabled Speaker (Surround Back)
– Height 1 Speaker: Top Front or Dolby Enabled Speaker (Front), Height 2 Speaker: One of Rear High/Top
Rear/Dolby Enabled Speaker (Surround)/Dolby Enabled Speaker (Surround Back)
When connecting only one set of height speakers, select one type of height speakers from the types
available.

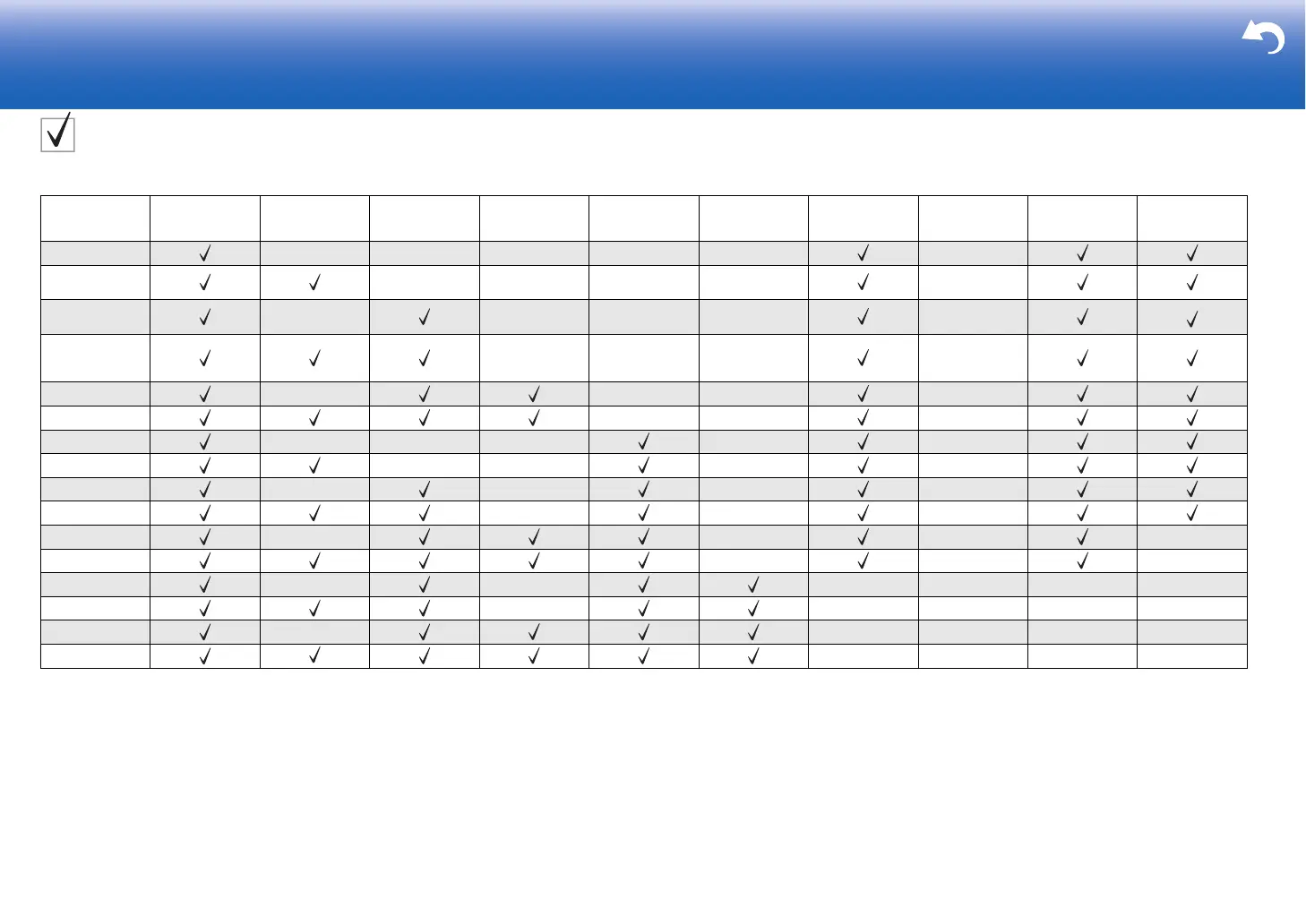

Speaker
Channels
FRONT CENTER SURROUND
SURROUND
BACK
HEIGHT 1 HEIGHT 2
SP B
＊ 1
(Speaker B)
Bi-AMP
＊ 1
ZONE 2
＊ 1
(P19)
ZONE 3
＊ 1
(P20)
2.1 ch
＊ 2
FRONT
3.1 ch
＊ 2
FRONT,
FRONT/CENTER
4.1 ch
＊ 2
FRONT,
FRONT/SURROUND
5.1 ch
＊ 2
FRONT,
FRONT/CENTER,
FRONT/SURROUND
6.1 ch
＊ 2
FRONT
＊ 3
7.1 ch
＊ 2
FRONT
＊ 3
2.1.2 ch
＊ 4
FRONT
＊ 5
3.1.2 ch
＊ 4
FRONT
＊ 5
4.1.2 ch
＊ 4
FRONT
＊ 5
5.1.2 ch
＊ 4
FRONT
＊ 5
6.1.2 ch
＊ 6
FRONT
7.1.2 ch
＊ 6
FRONT
4.1.4 ch
5.1.4 ch
6.1.4 ch
＊ 7
7.1.4 ch
＊ 7

Pioneer SC-LX701 Specifications

General

Display	-
Product color	Silver
Audio decoders	DTS 96/24, DTS-ES, DTS-HD, DTS-HD HR, DTS-HD Master Audio, Dolby Digital Plus, Dolby Surround, Dolby TrueHD
Audio amplifier	Yes
Apple docking compatibility	Not supported
Receiver type	Surround
Frequency range	20 - 20000 Hz
Audio output channels	9.2 channels
Dynamic power per channel (4 Ohm)	220 W
Power output per channel (1KHz@6 Ohm)	185 W
Power output per channel (1KHz@8 Ohm)	135 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	8
Digital audio optical in	3
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	2
Headphone connectivity	3.5 mm
Multichannel audio output type	Terminals
Speakers connectivity type	Binding post
Audio formats supported	AAC, AIFF, ALAC, DSD, FLAC, MP3, WAV, WMA
Bluetooth version	4.1
Bluetooth profiles	A2DP, AVRCP
Supported radio bands	AM, FM
Preset stations quantity	40
Internet radio services supported	Pandora, TuneIn
Card reader integrated	No
AC input voltage	220-230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.15 W
Power consumption (typical)	310 W
Supported video modes	1080p, 2160p
Cables included	AC

Weight and Dimensions

Depth	441 mm
Width	435 mm
Height	185 mm
Weight	15300 g
