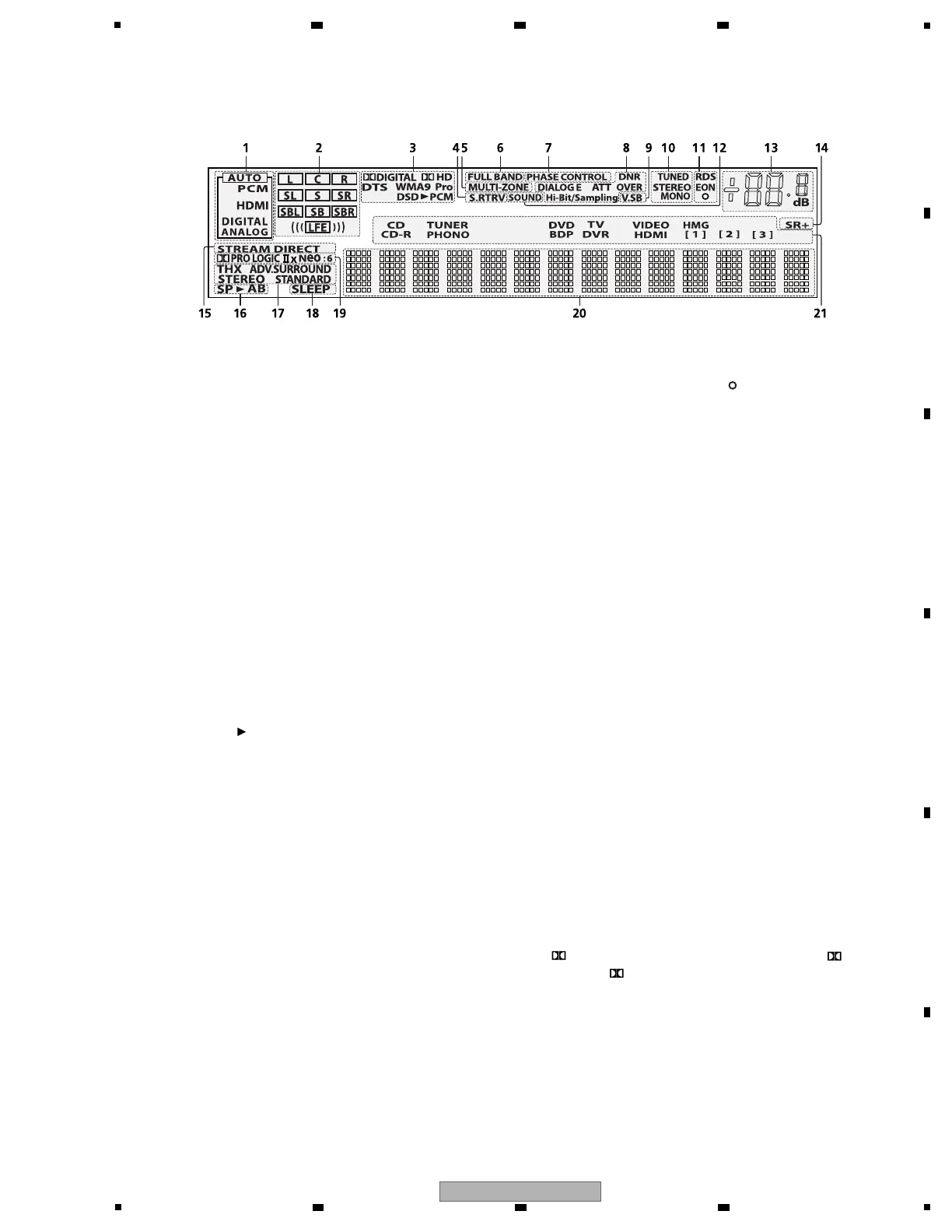

1 SIGNAL indicators
Light to indicate the currently selected input signal.
AUTO
lights when the receiver is set to select the input
signal automatically.
2 Program format indicators
These change according to which channels are active in
digital sources.
L
– Left front channel
C
– Center channel
R
– Right front channel
SL
– Left surround channel
S
– Surround channel (mono)
SR
– Right surround channel
SBL
– Left surround back channel
SB
– Surround back channel (mono)
SBR
– Right surround back channel
LFE
– Low frequency effects channel (the
((( )))
indicators
light when an LFE signal is being input)
3 Digital format indicators
Light when a signal encoded in the corresponding format
is detected (
DSD PCM
lights during DSD (Digital
Stream Direct) to PCM conversion with SACDs).
4 S.RTRV
Lights when the Sound Retriever is switched on.
5 MULTI-ZONE
Lights when the MULTI-ZONE feature is active.
6 FULL BAND
Lights when the Full Band Phase Control is switched on.
7 PHASE CONTROL
Lights when the Phase Control or Full Band Phase
Control is switched on.
8 Sound processing indicators
Light according to the active Audio parameter(s)
and/or
ANALOG ATT
.
9 V.SB
Lights during Virtual surround back processing.
10 TUNER indicators
TUNED
– Lights when a broadcast is being received.
STEREO
– Lights when a stereo FM broadcast is
being received in auto stereo mode.
MONO
– Lights when the mono mode is set using
MPX
.
[3] Display
11 EON/RDS indicators
EON
– Lights when the EON mode is set (flashes
during EON reception). The indicator lights when
the current station carries the EON service.
RDS
– Lights when an RDS broadcast is received.
12 SOUND
Lights when any of the Midnight, Loudness or tone
controls feature is selected.
13 Master volume level
Shows the overall volume level.
80dB
indicates the
minimum level, and
+12dB
indicates the maximum level.
14 SR+
Lights when the SR+ mode is switched on.
15 STREAM DIRECT
Lights when Direct/Pure Direct is selected.
16 Speaker indicators
Lights to indicate the current speaker system,
A
and/or
B
.
17 Listening mode indicators
THX
– Lights when one of the Home THX modes is
selected.
ADV.SURROUND
– Lights when one of the
Advanced Surround modes has been selected.
STEREO
– Lights when stereo listening is switched
on.
STANDARD
– Lights when one of the Standard
Surround modes is switched on.
18 SLEEP
Lights when the receiver is in sleep mode.
19 Matrix decoding format indicators
PRO LOGIC IIx
This lights to indicate Pro
Logic II / Pro Logic IIx decoding.
Neo:6
When one of the Neo:6 modes of the receiver
is on, this lights to indicate Neo:6 processing.
20 Character display
Displays various system information.
21 Input source indicators
Light to indicate the input source you have selected.
