Pioneer SC-LX85 Service Manual

25
SC-57
5
6 7 8
5
6 7 8
A
B
C
D
E
F

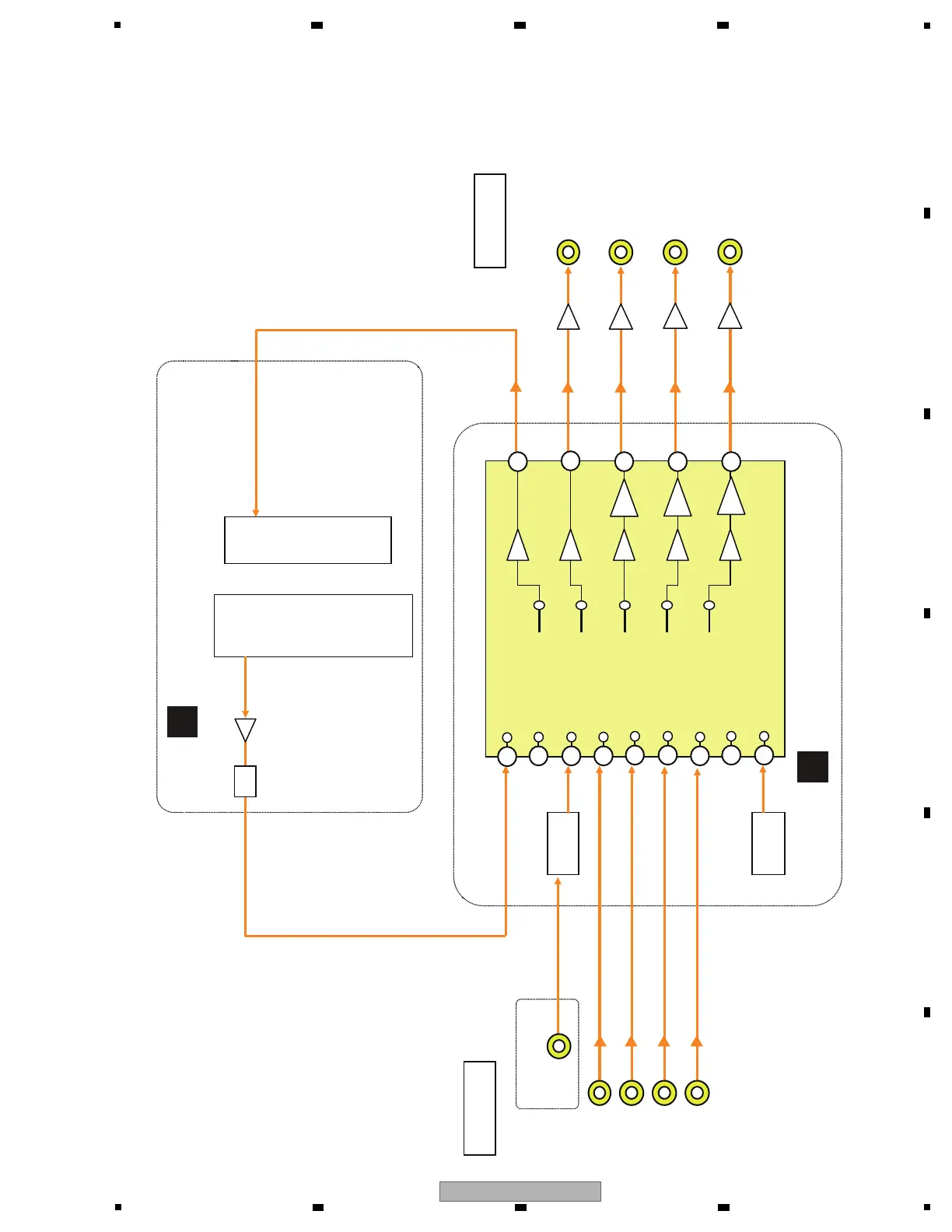

4.6 BLOCK DIAGRAM FOR COMPOSITE VIDEO BLOCK
COMPOSITE VIDEO BLOCK DIAGRAM
IC8301
IC8401
IC8501
EMMA
COMPOSITE
INPUT
COMPOSITE
OUTPUT
VDEC
OSD IC
PDC162A
LPF
FRONT VIDEO
DVD
TV/SAT
VIDEO
DVR/BDR
VIDEO AMP NJM2505AF
iPod
ZONE2 OUT MONITOR OUT DVR/BDR OUT
95
94
93
92
91
89
88
87
83
82
81
79
77
75
75
75
VIDEO SW NJW1327FU1
96
ZONE3 OUT
F
DIGITAL MAIN ASSY
COMPONENT ASSY
H

Pioneer SC-LX85 Specifications

General

Frequency range	5 - 100000 Hz
Output impedance	6 Ω
Input sensitivity	400 mV
Audio output channels	9.2 channels
Audio A/D Converter (ADC)	24-bit/192kHz
Signal-to-Noise Ratio (SNR)	103 dB
Power output per channel (1KHz@6 Ohm)	190 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	7
AC (power) in	Yes
Composite video in	4
Digital audio coaxial in	2
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	3
Headphone connectivity	3.5 mm
Connectivity technology	Wired & Wireless
Speakers connectivity type	RCA
Wi-Fi	-
Supported radio bands	AM, FM
Preset stations quantity	63
Optical drive included	No
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS, DTS 96/24, DTS Neo:6, DTS-ES, DTS-HD, THX Surround EX
Volume control	Rotary
Apple docking compatibility	iPad, iPhone, iPod
Graphical user interface (GUI) language	English, French, German, Italian, Russian, Spanish
AC input voltage	220-230 V
AC input frequency	50 - 60 Hz
THX-certified	THX

Weight and Dimensions

Depth	442 mm
Width	435 mm
Height	185 mm
