Connecting up (continued)
LINE LEVEL
INPUT
Powered
Subwoofer (
SW
)
Front Right (
R
) Front Left (
L
)Center (
C
)
Surround Right
(
SR
)
Surround Left
(
SL
)

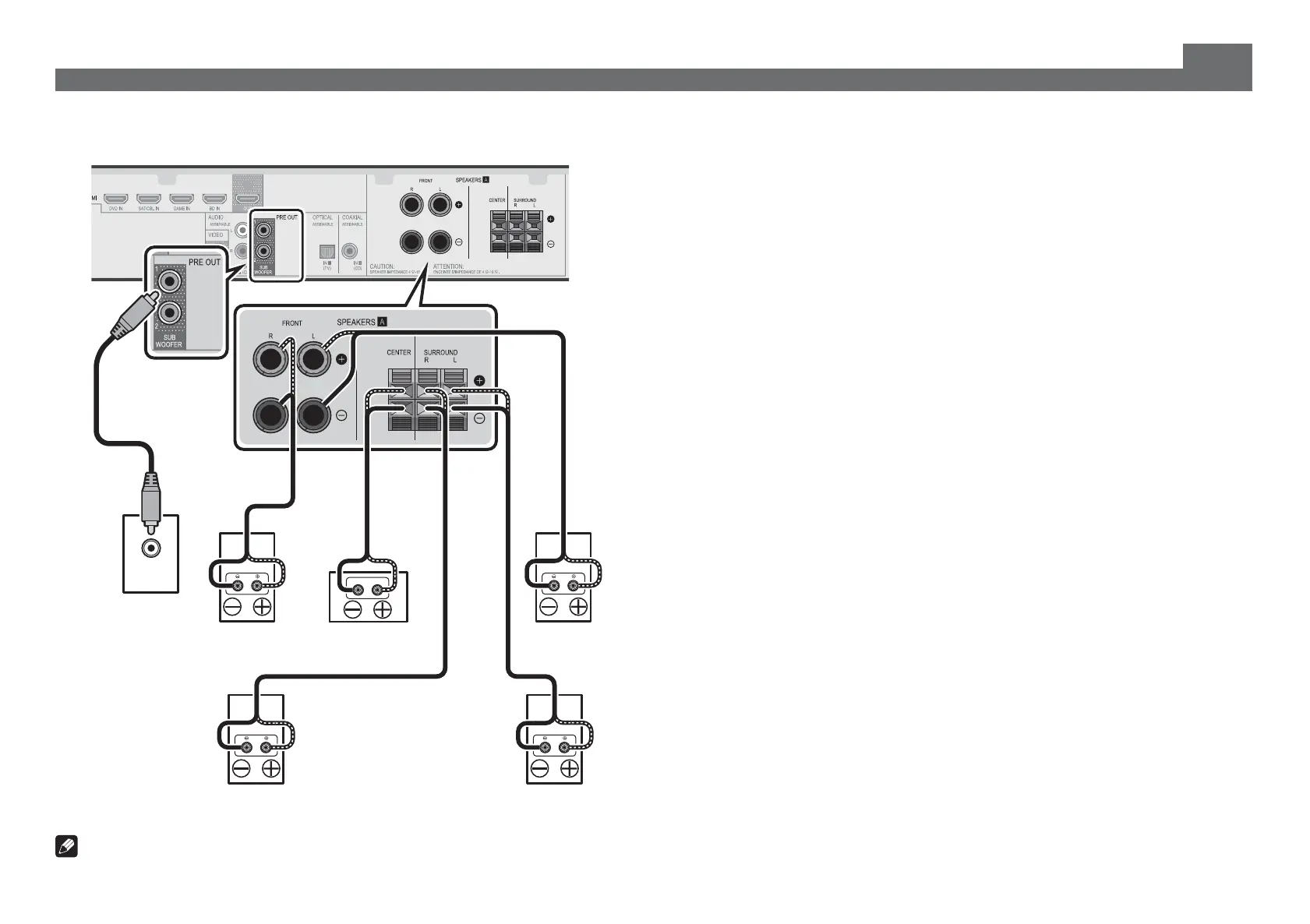

VSX-S310 connection diagram
Note
• This unit supports speakers with a nominal impedance of 4
:
to 16
:
.
