Pioneer XR-A770 Service Manual

3
XR-A880, XR-A770

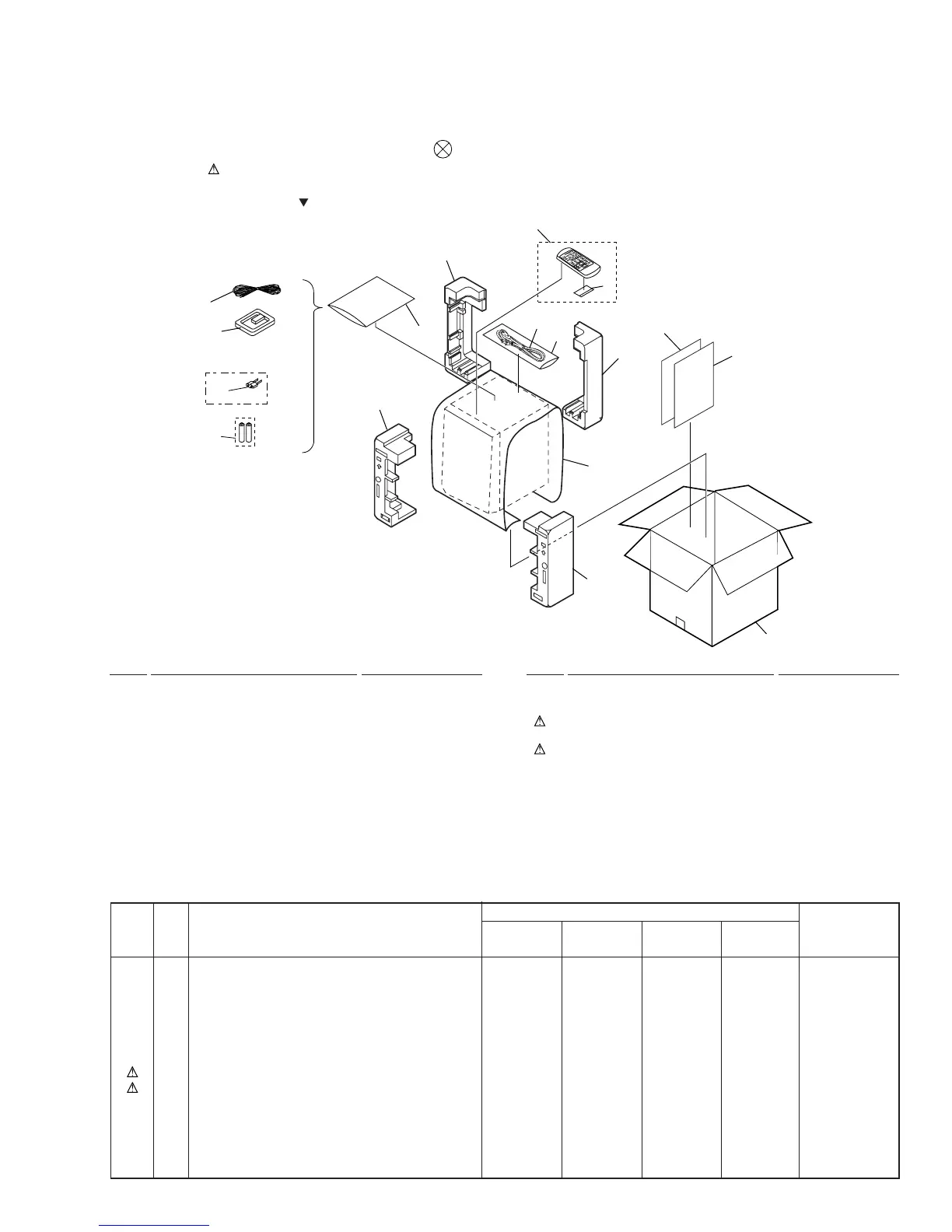

2.1 PACKING
1 FM Antenna ADH7004
2 Operating Instructions See Contrast table (2)
3 AM Loop Antenna XTB3001
4 Remote Control Unit See Contrast table (2)
5 Battery Cover AZA7204
NSP 6 Dry Cell Battery (R6P, AA) VEM-013
7 Polyethylene Bag Z21-038
(0.03 × 230 × 340)
8 Front Pad XHA3005
9 Rear Pad XHA3006
(1) PACKING PARTS LIST
Mark No. Description Part No.
2. EXPLODED VIEWS AND PARTS LIST
NOTES:
•
Parts marked by "NSP" and can not be supplied.
•
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
•
Screws adjacent to mark on the product are used for disassembly.
10 Packing Case See Contrast table (2)
11 Packing Sheet AHG7049
12 Power-cord Plug See Contrast table (2)
Conversion Adapter
13 Power Cord See Contrast table (2)
NSP 14 Polyethylene Bag AHG7033
15 Operating Instructions See Contrast table (2)
Mark No. Description Part No.
(2) CONTRAST TABLE
XR-A880/DBDXJ, DXJ/NC, XR-A770/DBDXJ and DXJ/NC are constructed the same except for the following :
Mark No. Symbol and Description
Part No.
Remarks
XR-A880 XR-A880 XR-A770 XR-A770
/DBDXJ /DXJ/NC /DBDXJ /DXJ/NC
2 Operating Instructions Not used XRE3010 Not used XRE3010
(English/Spanish/Portuguese)
2 Operating Instructions (English/Spanish/Chinese) XRE3011 Not used XRE3011 Not used
4 Remote Control Unit (CU-XR050) XZN3008 XZN3008 Not used Not used
4 Remote Control Unit (CU-XR049) Not used Not used XZN3007 XZN3007
10 Packing Case XHD3051 XHD3034 XHD3047 XHD3033
12 Power-cord Plug Conversion Adapter Not used VKX1007 Not used VKX1007
13 Power Cord ADG1158 ADG1154 ADG1158 ADG1154
15 Operating Instructions (English/French/German/ Not used Not used XRE3016 XRE3016
Italian/Dutch/Swedish/Spanish/Portuguese/Chinese)
15 Operating Instructions (English/French/Spanish/ XRE3018 XRE3018 Not used Not used
Portuguese/Chinese)
12
V
O
L
K
A
R
A
O
K
E
S
F
C
D
I
S
C
D
I
S
C
D
I
S
C
C
L
E
A
R
S
T
A
T
I
O
N
R
E
M
O
T
E
C
O
N
T
R
O
L
U
N
I
T
C
U
-X
R
0
2
5
M
O
N
O
B
A
N
D
P
G
M
R
E
P
E
A
T
R
A
N
D
O
M
A
U
X
P
.
B
A
S
S
D
I
S
P
L
A
Y
S
L
E
E
P
P
O
W
E
R
6
1
3
DXJ/NC Type Only
7
9(1/2)
8(1/2)
8(2/2)
9(2/2)
10
2
13
14
11
15
4
5
