46
XR-MT3

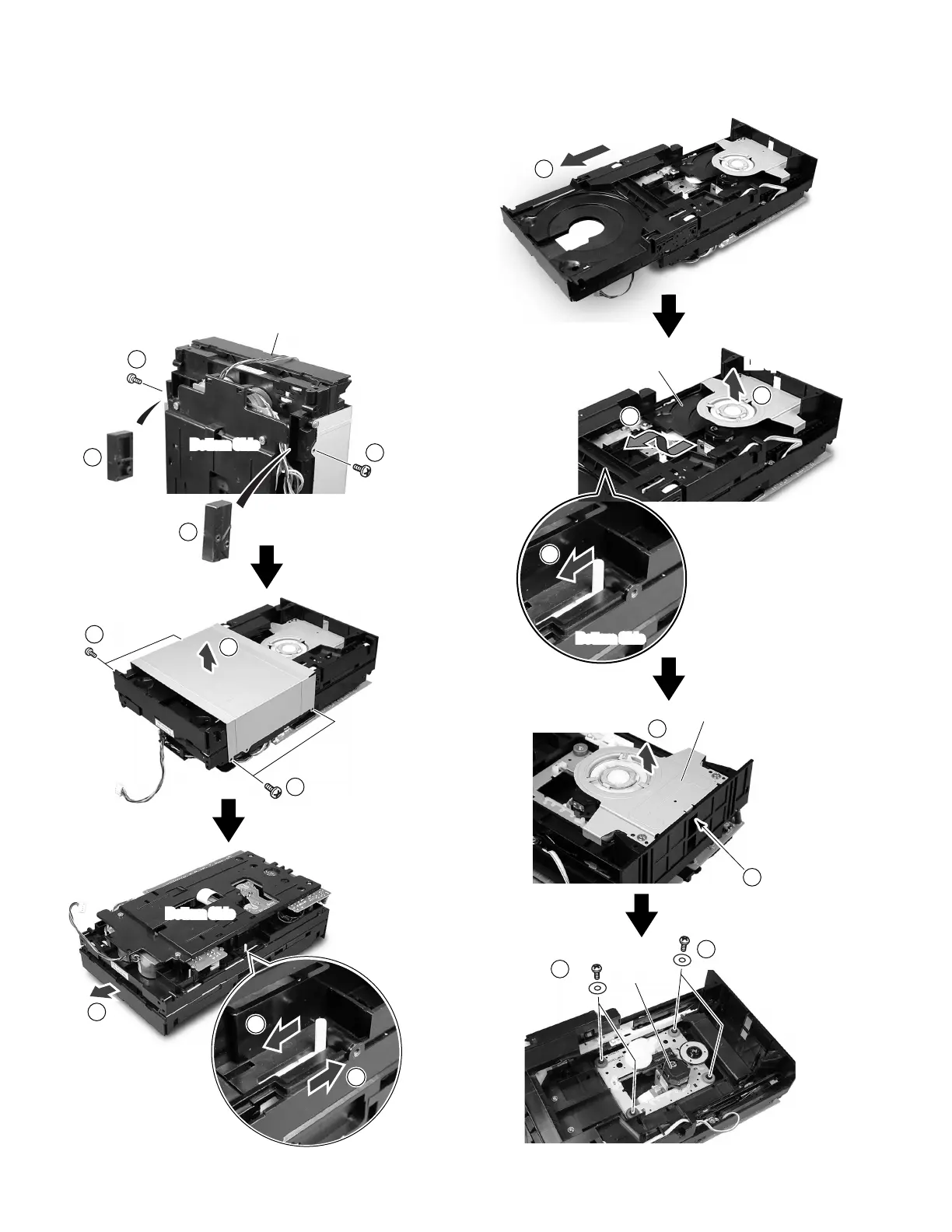

(2) CD MECHA.
7
Pickup Unit
CAUTION
•
If Tray Panel Set is not detached when the CD MECHA. is
repaired, the CD MECHA. cannot be removed from the main
body of the product.
When Drawer was not able not to open and shut by some
something wrong's (The power supply does not enter, etc.)
occurring, and remove Tray Panel Set, Slider 2 of the CD
MECHA. is moved from the ditch of the chassis on the bottom
side of the product with a minus driver and Drawer is drawn out.
Afterwards, please remove Front Unit after removing Tray Panel
Set .
1
2
2
3
4
3
1
CD MECHA.
Carriage 300
Ass'y Clamper S0
Bottom Side
Bottom Side
×2
×2
×2
×2
5
6
6
Bottom Side
7
8
11
12
12
9
8
Lift up
Disconnect the Hook
Pickup Unit
10
Drawer is drawn out.
Clamper is raised and
Carriage 300 is taken out.
To Next Page
