47
XR-MT3
7

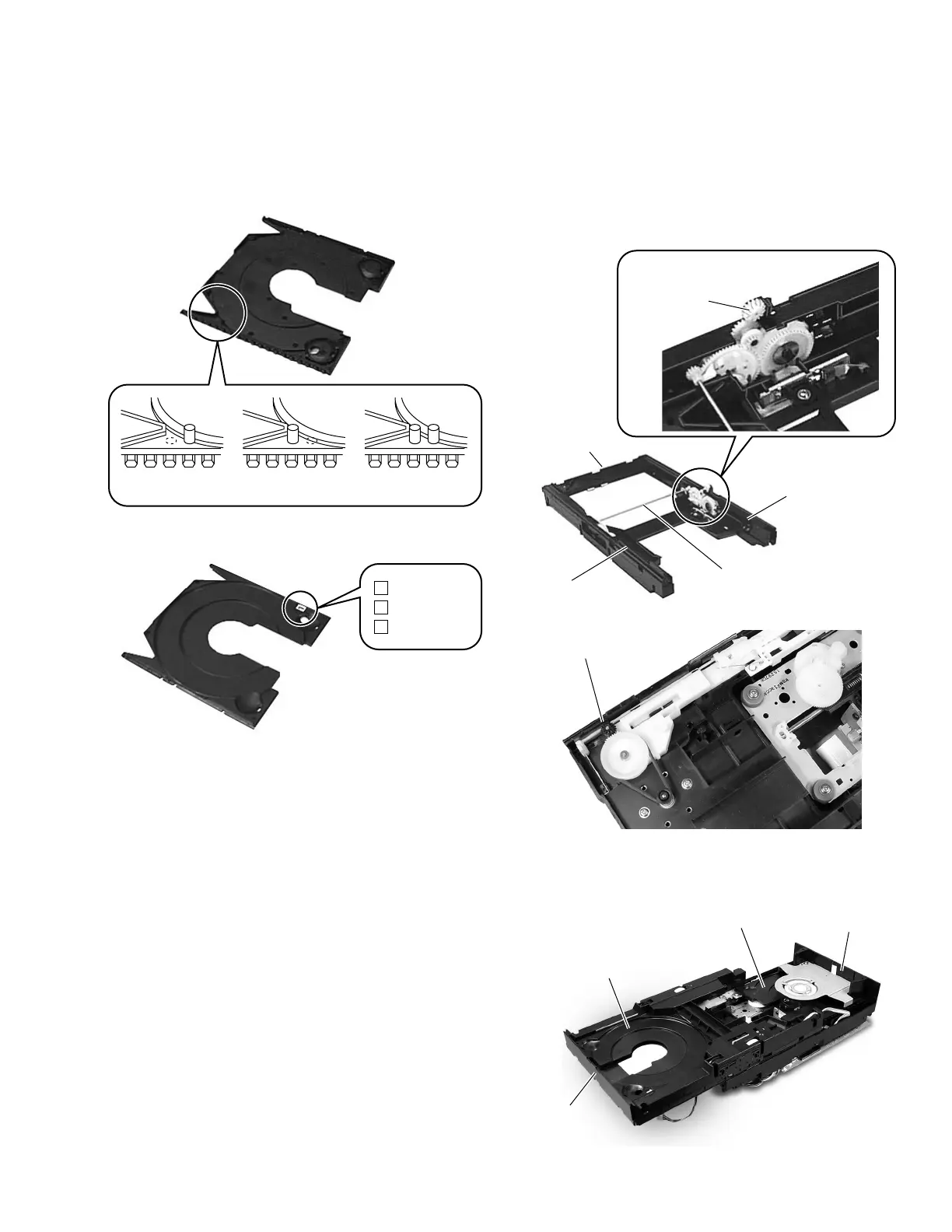

Caution for Disassembly/Assembly of CD MECHA.
1. As for the distinction method of Carriage100, 200, and 300,
Switch distinguishes the shape of the projection part on its back.
Please confirm the number seal pasted to the surface of
Carriage and the projection shape of the figure below when you
exchange it.
2. Please do not disassemble Assy Holder L, R and the inside of
and Drawer, and do not disassemble Assy Gear Drive which
connects Assy Holder L with R.
(The position match of each gear is necessary)
3. Please do not lose the gear (Bevel Gear 4 and Gear Idler A) not
fixed while put in the axis.
Carriage 100
Method of distinguishing the back of Carriage.
Method of distinguishing surface of Carriage.
Carriage 200 Carriage 300
Carriage 1001
Carriage 2002
Carriage 3003
4. Carriage 300 is put in the Chassis side, and please put in the
Drawer side without fail in order of Carriage 100 and 200.
Bevel Gear 4
Drawer
Assy Gear Drive
Assy Holder R
Assy Holder L
Gear Idler A
Carriage 100, 200
Carriage 300
Chassis
Drawer
To Next Page
