Pioneer XR-MT3 User Manual

2
X-MT2000
SYSTEM
SPEAKER
SIDE
FRONT
XR-MT3
REARREAR
2
3
1
5
10
6
4
8
15
14
15
15
11
16
17
18
12,13
7(2/2)
9
7(1/2)
1 AM loop antenna ANT-PMT1E-AL
2 Remote control unit See Contrast table (2)
3 Speaker Codes 122002020604
NSP 4 ‘AAA’ size R03 batteries 130115004000
5 FM wire antenna See Contrast table (2)
6 Remote Batt. Door 500RC4603050
7 Polyform Unit 800PMT190000
8 Polytheneform Sheet 801999000004
NSP 9 PE Polybag (AC Cord) See Contrast table (2)
NSP 10 PE Polybag (Antenna) 805070100000
NSP 11 PE Polybag (I Book) See Contrast table (2)
12 Warranty Card See Contrast table (2)
13 Operating Instructions See Contrast table (2)
14 Carton See Contrast table (2)
15 Corrugate Card 815001407262
16 Top Protector See Contrast table (2)
17 Bottom Protector See Contrast table (2)
18 Poly Bag See Contrast table (2)

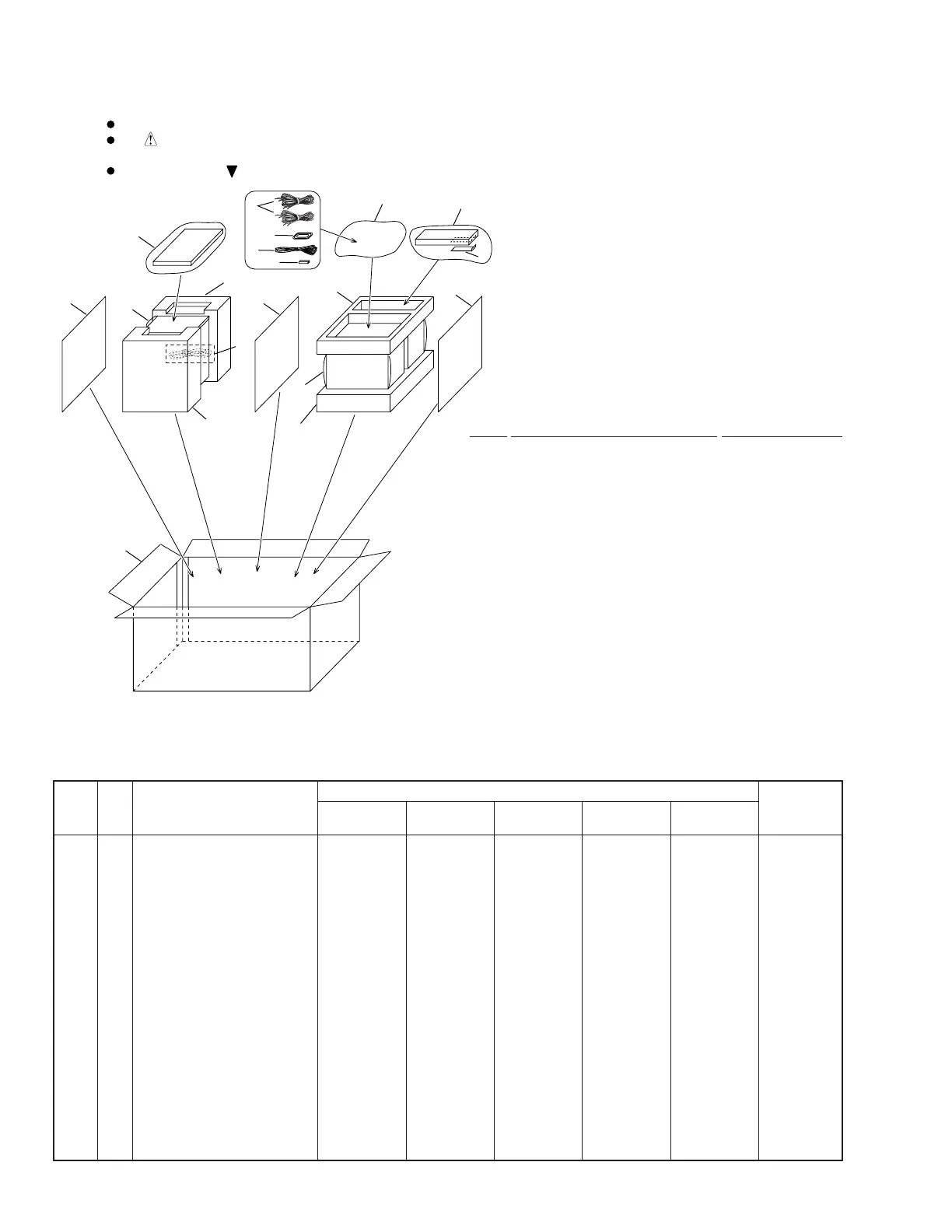

1. EXPLODED VIEWS AND PARTS LIST
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screws adjacent to mark on product are used for disassembly.
NOTES:
1.1 PACKING
(1) PACKING PARTS LIST
(2) CONTRAST TABLE
X-MT2000/KUCXCN and MYXCN, NVXCN, DBDXCN, DLXCN/NC are constructed the same except for the following :
Part No.
Mark No. Symbol and Description X-MT2000 X-MT2000 X-MT2000 X-MT2000 X-MT2000 Remarks
/KUCXCN /MYXCN /NVXCN DBDXCN DLXCN/NC
2 Remote control unit AXD7261 AXD7292 AXD7292 AXD7292 AXD7292
5 FM wire antenna 132030001001 054010A50090 054010A50090 132030001001 132030001001
NSP 9 PE Polybag (ACCord) 805032115000 805032115000 805040130000 805032115000 805032115000
NSP 11 PE Polybag (I Book) 805085140000 805085120000 805085140000 805085120000 805085120000
12 Warranty Card 810PMT195010 810PMT195020 810PMT195020 Not used Not used
13 Operating Instructions 811PMT191010 Not used Not used Not used Not used
(English/French)
13 Operating Instructions Not used 811PMT191021 811PMT191021 Not used Not used
(English/French/German/Italian)
13 Operating Instructions (Spanish/ Not used 811PMT191031 Not used Not used Not used
Portuguese/Dutch/Swedish)
13 Operating Instructions Not used Not used Not used 811PMT191041 Not used
(English/Spanish/Chinese)
13 Operating Instructions Not used Not used Not used Not used 811PMT191051
(English/Chinese)
14 Carton 813PMT193010 813PMT193030 813PMT193020 813PMT193040 813PMT193050
16 Top Protector SHA2245 SHA2243 SHA2243 SHA2243 SHA2243
17 Bottom Protector SHA2246 SHA2244 SHA2244 SHA2244 SHA2244
18 Poly Bag SHC1762 SHL1257 SHL1257 SHL1257 SHL1257
