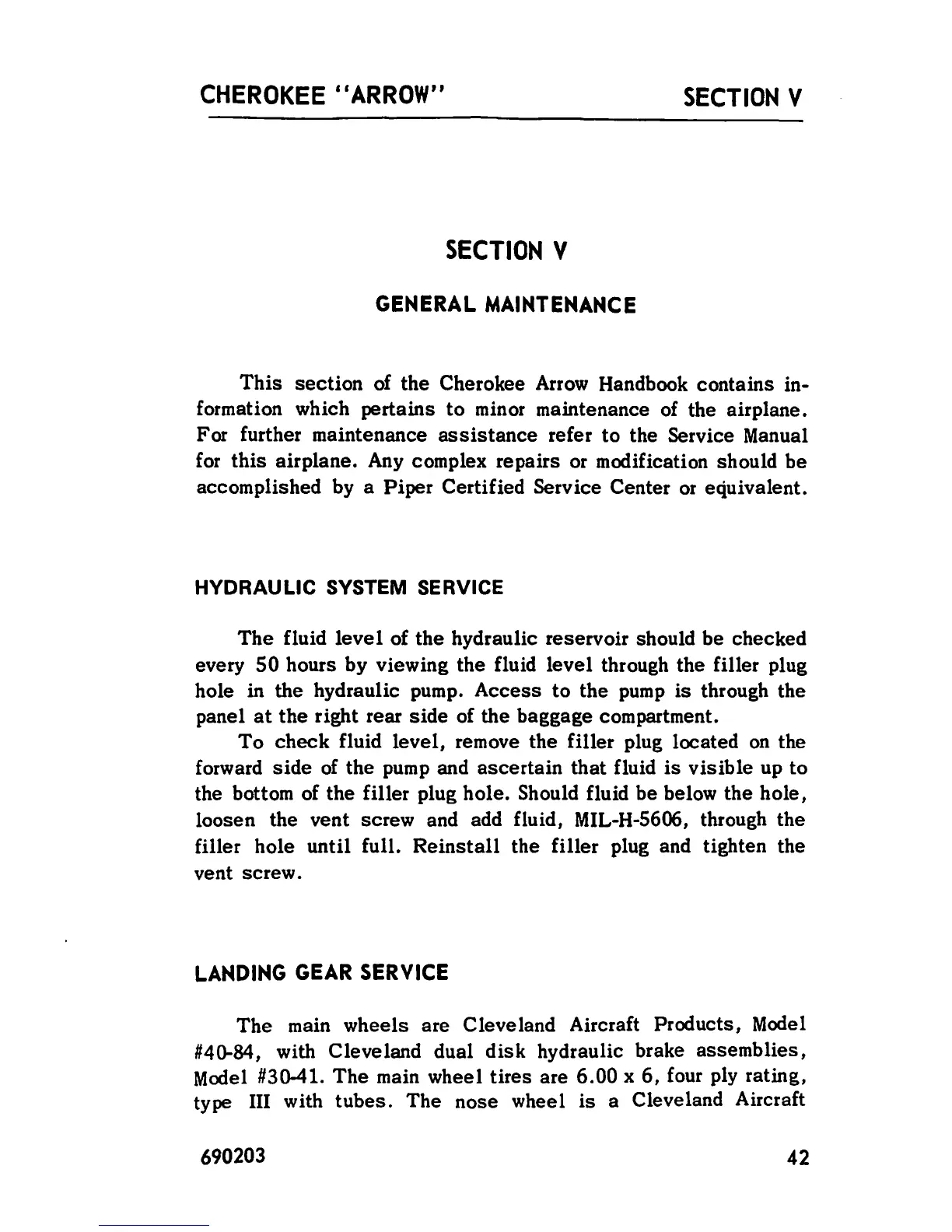

CHEROKEE
''ARROW"
SECTION
V
SECTION
V
GENERAL
MAINTENANCE
This
section
of
the
Cherokee Arrow Handbook contains in-
formation which pertains
to
minor maintenance of the airplane.
For further maintenance
assistance
refer
to
the Service Manual
for
this
airplane. Any complex repairs or modification should
be
accomplished by a
Piper
Certified Service Center or equivalent.
HYDRAULIC SYSTEM SERVICE
The
fluid
level
of
the
hydraulic reservoir should be checked
every
50
hours by viewing
the
fluid
level
through
the
filler plug
hole in the hydraulic pump.
Access
to
the
pump
is
through the
panel
at
the
right rear
side
of
the
baggage compartment.
To
check
fluid
level,
remove
the
filler plug located on the
forward
side
of
the
pump and
ascertain
that
fluid
is
visible
up
to
the bottom of
the
filler plug
hole.
Should fluid
be
below
the
hole,
loosen the vent screw and add fluid,
MIL-H-5606, through
the
filler
hole
until
full.
Reinstall
the
filler
plug and tighten the
vent screw.
LANDING
GEAR
SERVICE
The
main
wheels
are
Cleveland Aircraft Products, Model
#40-84, with Cleveland dual
disk
hydraulic brake
assemblies,
Model #30-41.
The
main wheel
tires
are
6.00
x
6,
four ply rating,
type III with
tubes.
The
nose
wheel
is
a Cleveland Aircraft
690203
42
