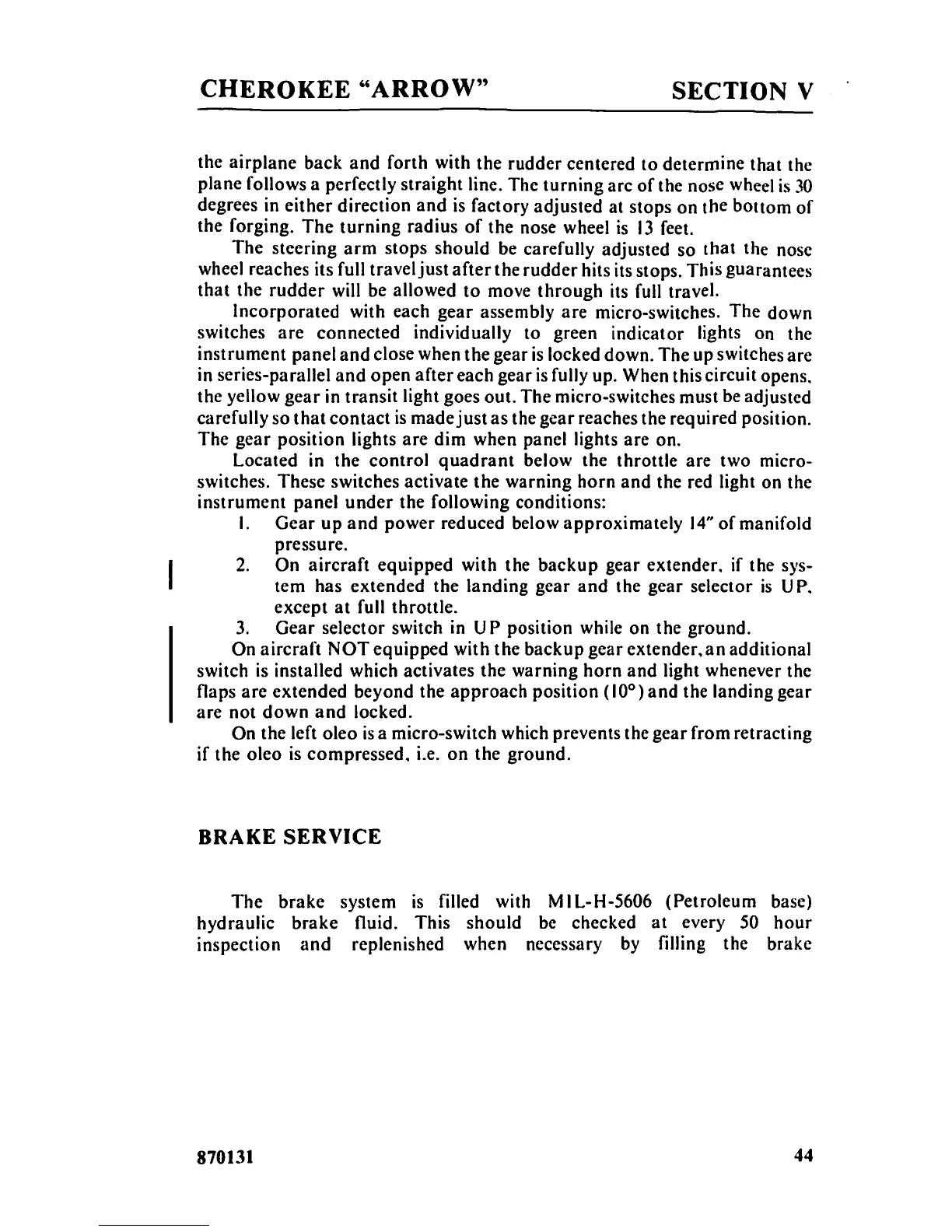

CHEROKEE
"ARROW"
SECTION
V
the
airplane
back
and
forth with the rudder centered
to
determine
that
the
plane follows a perfectly straight line. The
turning
arc
of
the nose wheel
is
30
degrees in
either
direction
and
is factory adjusted at stops
on
the
bottom
of
the forging.
The
turning
radius
of
the nose wheel
is
13
feet.
The
steering
arm
stops
should
be carefully adjusted so
that
the nose
wheel reaches its full travel
just
after
the
rudder
hits its stops. This guarantees
that
the
rudder
will be allowed
to
move
through
its full travel.
Incorporated
with each
gear
assembly
are
micro-switches.
The
down
switches
are
connected individually to green indicator lights on the
instrument
panel
and
close when
the
gear
is
locked down.
The
up switches are
in
series-parallel
and
open
after
each gear
is
fully up. When this circuit opens.
the yellow
gear
in transit light goes out. The micro-switches must be adjusted
carefully so
that
contact
is
made
just
as
the gear reaches the required position.
The gear position lights
are
dim when panel lights are on.
Located in the
control
quadrant
below the throttle are two micro-
switches. These switches activate
the
warning
horn
and
the red light on the
instrument panel
under
the following conditions:
I.
Gear
up
and
power reduced below
approximately
14"
of
manifold
pressure.
2.
On
aircraft
equipped with the
backup
gear extender. if the sys-
tem has extended the landing gear
and
the gear selector
is
UP.
except
at
full throttle.
3.
Gear
selector switch in
UP
position while on the ground.
On
aircraft
NOT
equipped with
the
backup
gear extender.
an
additional
switch
is
installed which activates the warning
horn
and
light whenever the
flaps
are
extended
beyond the
approach
position
(10°)and
the
landinggear
are
not
down
and
locked.
On the left oleo
is
a micro-switch which prevents the gear from retracting
if the oleo
is
compressed.
i.e.
on
the
ground.
BRAKE
SERVICE
The
brake
system
is
filled with MIL-H-5606 (Petroleum base)
hydraulic
brake
fluid. This should
be
checked
at
every 50
hour
inspection
and
replenished when necessary
by
filling the brake
