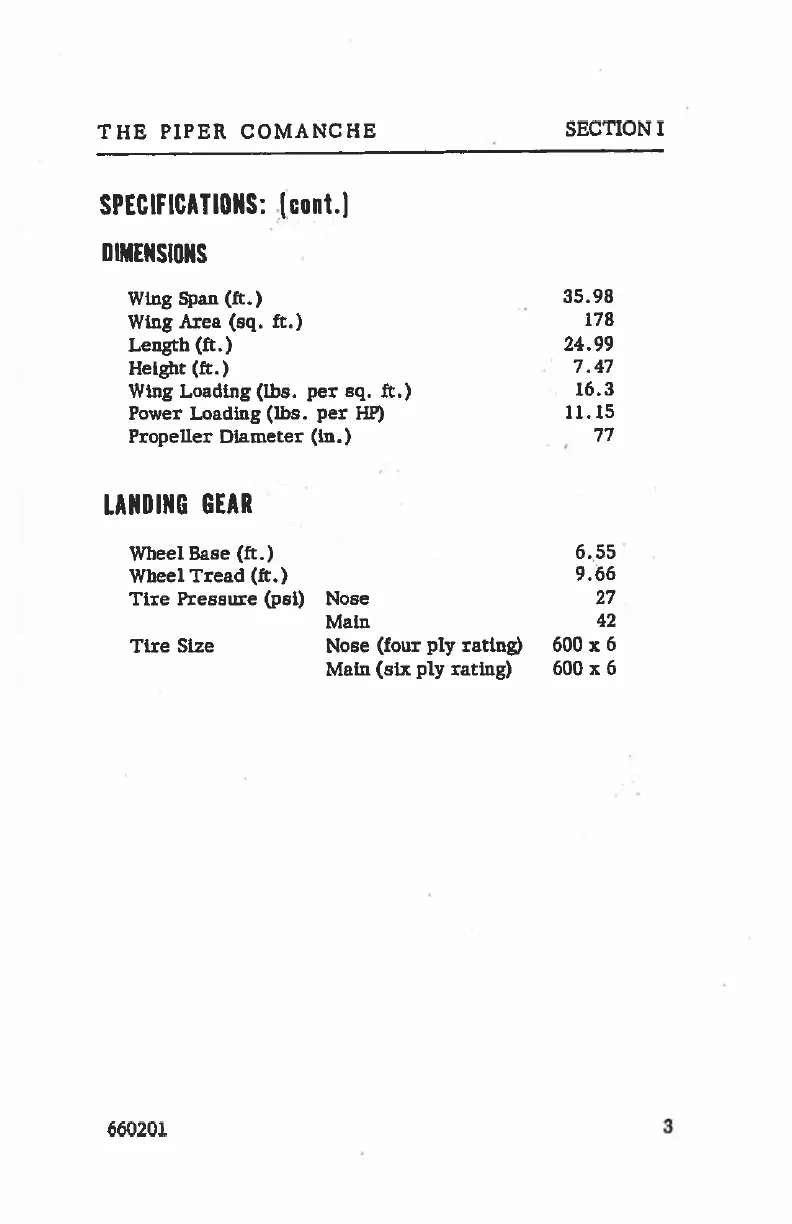

THE PIPER COMANCHE ) SECTION I
SPECIFICATIONS: {cont.)
DIMENSIONS
Wing Span (ft.) ~ 35.98
Wing Area (sq. ft.) 178
Length (ft.) 24.99
Height (ft.) 7.47
Wing Loading (lbs. per sq. ft.) 16.3
Power Loading (lbs. per HP) 11.15
Propeller Diameter (in.) .
LANDING GEAR
Wheel Base (ft.) 6.55
Wheel Tread (ft.) 9.66
Tire Pressure (psi) Nose 27
Main 42
Tire Size Nose (four ply rating) 600 x 6
Main (six ply rating) 600 x 6
660201 3
