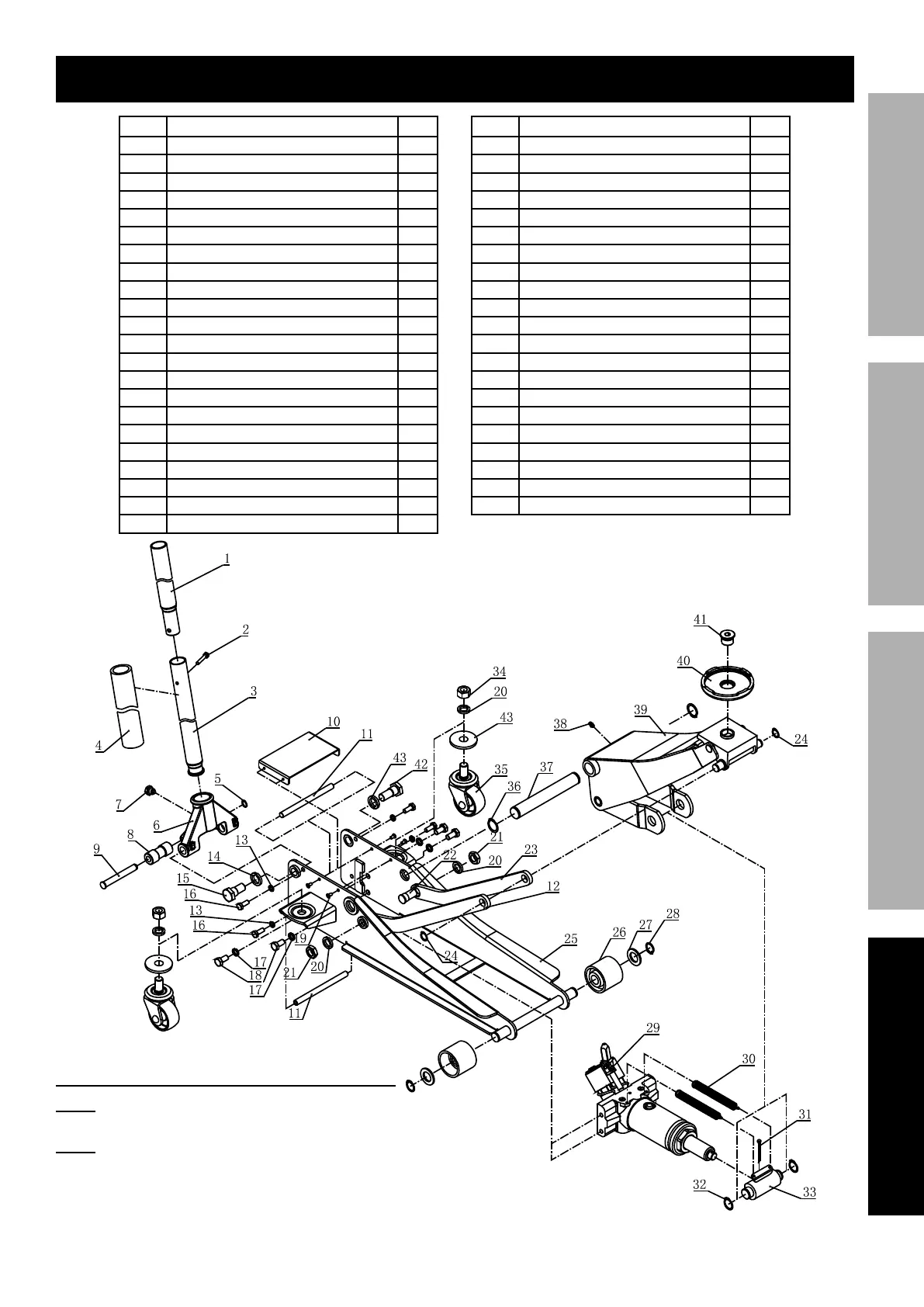

Parts List and Assembly Diagram
Part Description Qty
1 Upper Handle 1
2 Bolt 1
3 Lower Handle 1
4 Handle Foam 1
5 Ring 1
6 Handle Socket 1
7 Screw 1
8 Roller Wheel 1
9 Pin 1
10 Cover Plate 1
11 Limiting Bar 2
12 Right adjustment plate 1
13 Lock Washer 4
14 Lock Washer 1
15 Bolt 1
16 Bolt 4
17 Lock Washer 4
18 Bolt 4
19 Screw 4
20 Lock Washer 4
21 Nut 2
22 Screw 2
Part Description Qty
23 Left adjustment plate 1
24 Ring 2
25 Frame 1
26 Wheel 2
27 Washer 2
28 Ring 2
29 Pump 1
30 Spring 2
31 Cotter Pin 1
32 Ring 2
33 Top Bar 1
34 Nut 2
35 Wheel 2
36 Ring 2
37 Axle 1
38 Oil Cup 1
39 Lifting Arm 1
40 Saddle 1
41 Screw 1
42 Bolt 1
43 Lock Washer 1
Record Product’s Serial Number Here:
Note: If product has no serial number,
record month and year of purchase instead.
Note: Some parts are listed and shown
for illustration purposes only, and are not
available individually as replacement parts.
Specify UPC 193175365736 when ordering parts.
