Pixel King - Installation Guide; Transmitter and Receiver Mounting

10

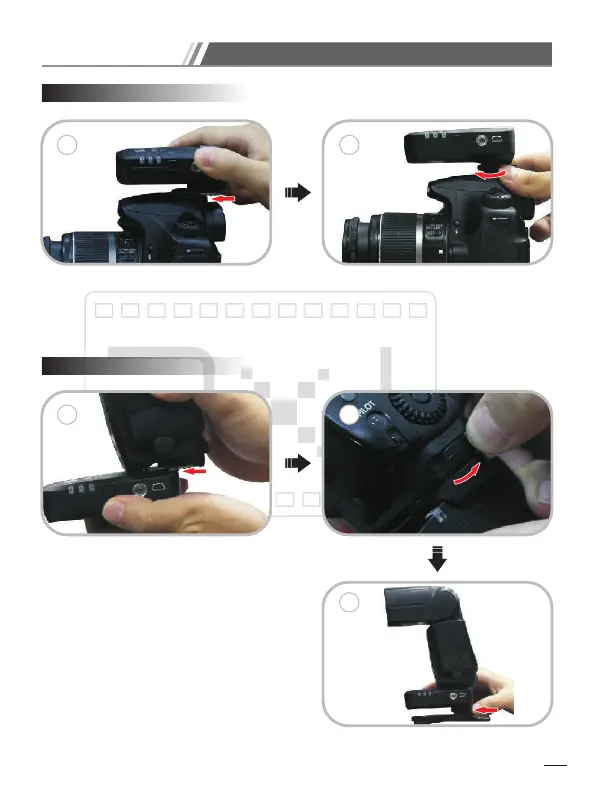

1. Loosen the transmitter lock ring to the right and insert into camera hot shoe;
tighten the transmitter lock ring to the left.
Device Installation
1. Loosen the flashgun lock switch.
2. Insert flashgun to receiver hot shoe.
3. Follow the flashgun locking system to
lock the flash.
4. Insert this receiver on the multi use flash
holder and tight the transmitter lock ring
to the left.
A
C
B
D
E
Transmitter Installation
Receiver Installation
