INSTALLATION INSTRUCTIONS (cont.)
Connecting The Cables

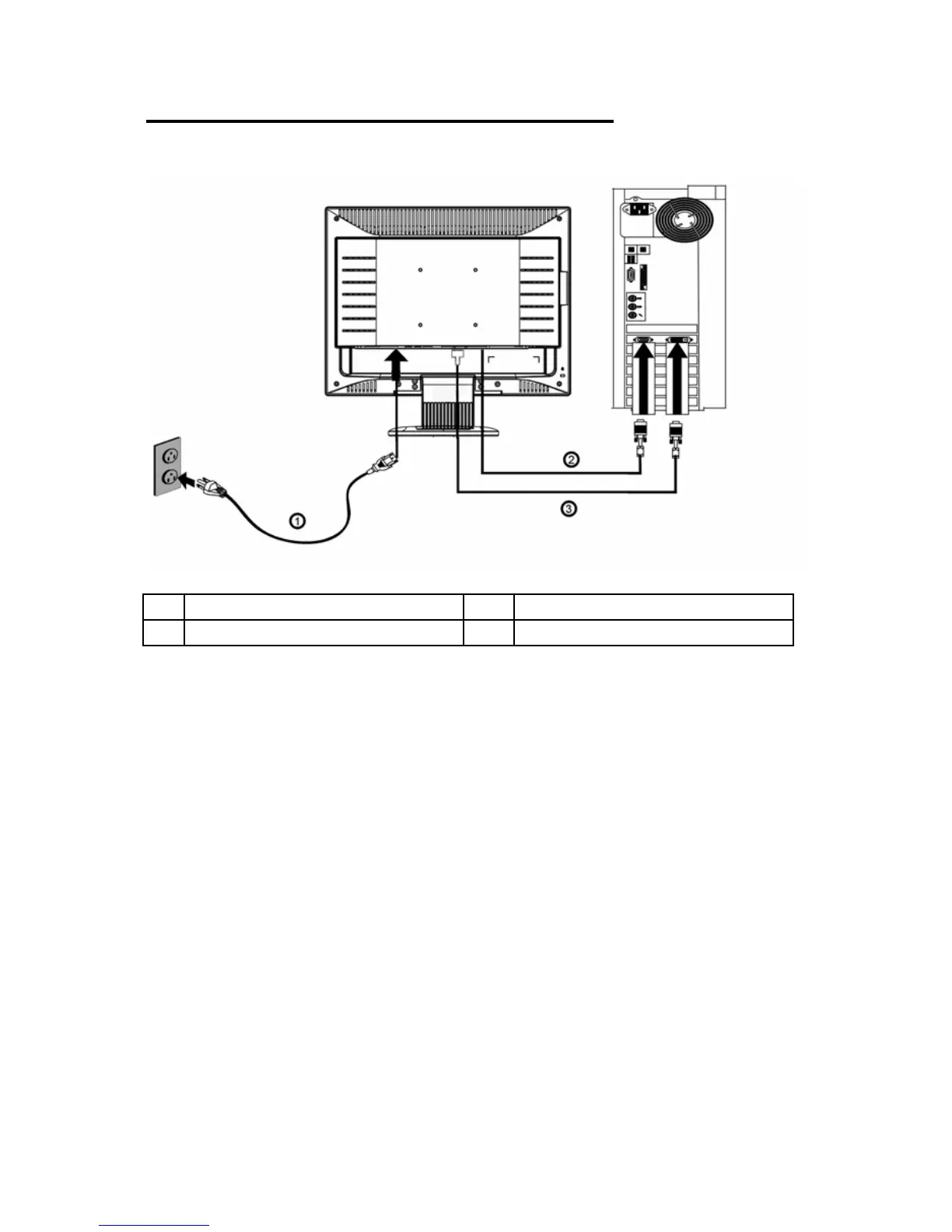

Figure 2 Connecting Cables
1. AC Power Cord 2. 15-pin D-SUB Cable
3. DVI Cable
Turn off your computer before performing the procedure below.
1. Connect the female end of the AC power cord to the AC-in port on the back
of the monitor. Connect the other end to a nearby AC-outlet.
2. Connect one end of the 15-pin D-Sub cable to the back of the monitor and
connect the other end to the computer’s D-Sub port.
3. (Optional – Requires a video card with DVI port) Connect one end of the
24-pin DVI cable to the back of the monitor and connect the other end to the
computer’s DVI port. be tightened.
4. Turn on your monitor and computer. If you monitor diplays an image,
installation is complete. If not, refer to the FAQ (frequently asked questions)
section for troubleshooting.
