Planar PE2010 - Connector Pin Assignment

22
APPENDIX (cont.)

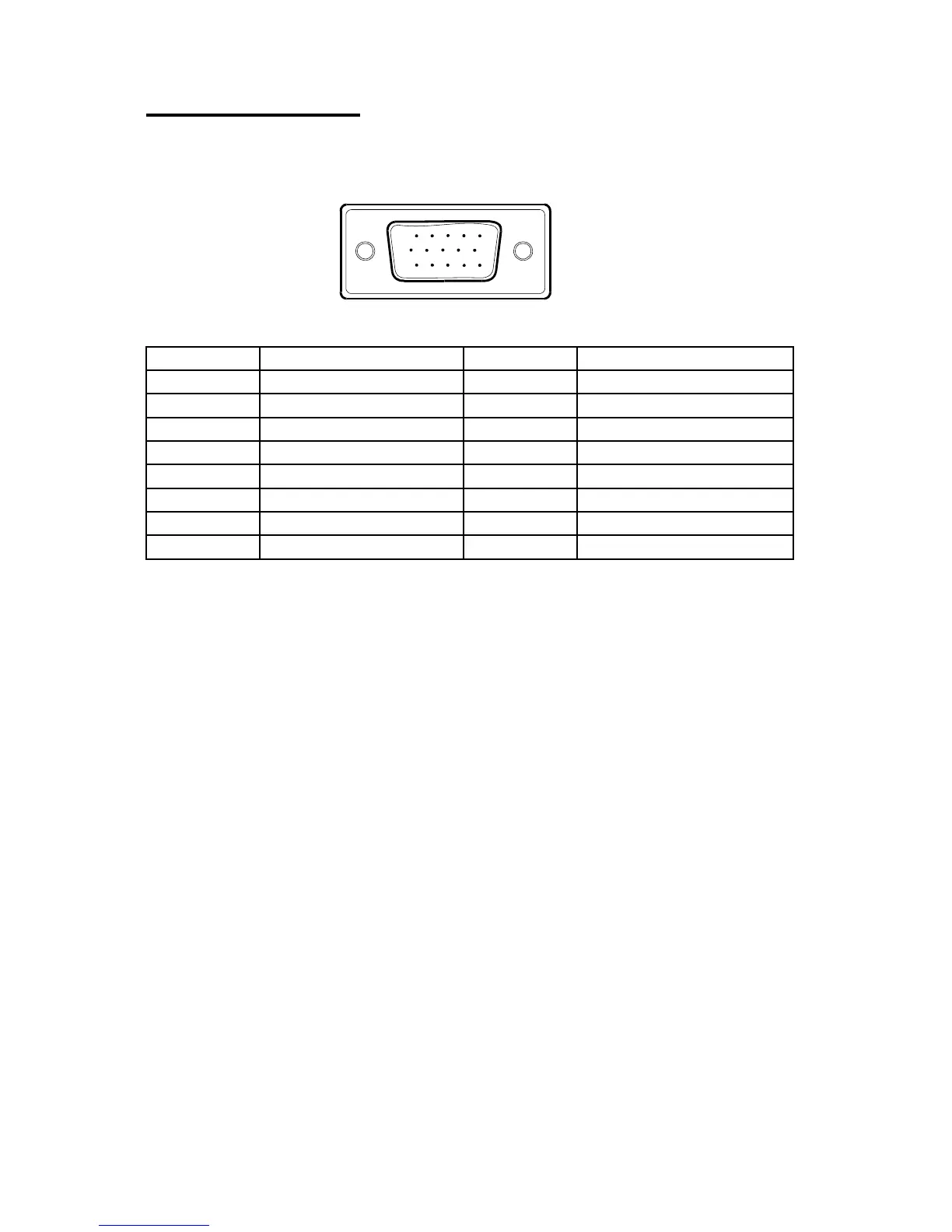

Connector Pin Assignment
15
6
10
11 15
15 - Pin Color Display Signal Cable
PIN NO. DESCRIPTION PI N NO. DESCRIPTION
1. Video-Red 9. +5V
2. Video-Green 10. Detect Cable
3. Video-Blue 11. NC
4. NC 12. DDC-Serial data
5. Ground 13. H-sync
6. GND-R 14. V-sync
7. GND-G 15. DDC-Serial clock
8. GND-B
