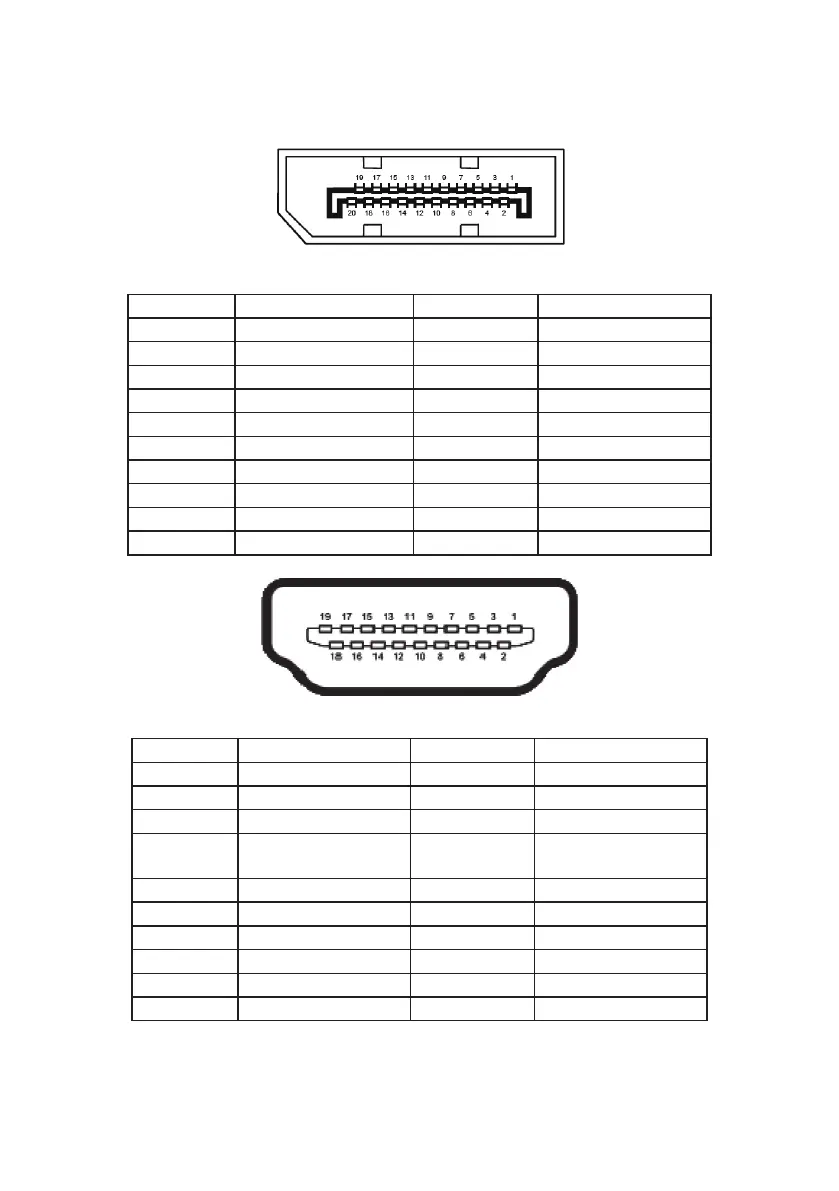

CONNECTOR PIN ASSIGNMENT
20 - Pin Color Display Signal Cable
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 ML_Lane 3 (n) 11 GND
2 GND 12 ML_Lane 0 (p)
3 ML_Lane 3 (p) 13 CONFIG1
4 ML_Lane 2 (n) 14 CONFIG2
5 GND 15 AUX_CH(p)
6 ML_Lane 2 (p) 16 GND
7 ML_Lane 1 (n) 17 AUX_CH(n)
8 GND 18 Hot Plug Detect
9 ML_Lane 1 (p) 19 Return DP_PWR
10 ML_Lane 0 (n) 20 DP_PWR
19 - Pin Color Display Signal Cable
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1. TMDS Data 2+ 11. TMDS Clock Shield
2. TMDS Data 2 Shield 12. TMDS Clock-
3. TMDS Data 2- 13. CEC
4. TMDS Data 1+ 14. Reserved (N.C. on
device)
5. TMDS Data 1 Shield 15. SCL
6. TMDS Data 1- 16. SDA
7. TMDS Data 0+ 17. DDC/CEC Ground
8. TMDS Data 0 Shield 18. +5V Power
9. TMDS Data 0- 19. Hot Plug Detect
10. TMDS Clock+
