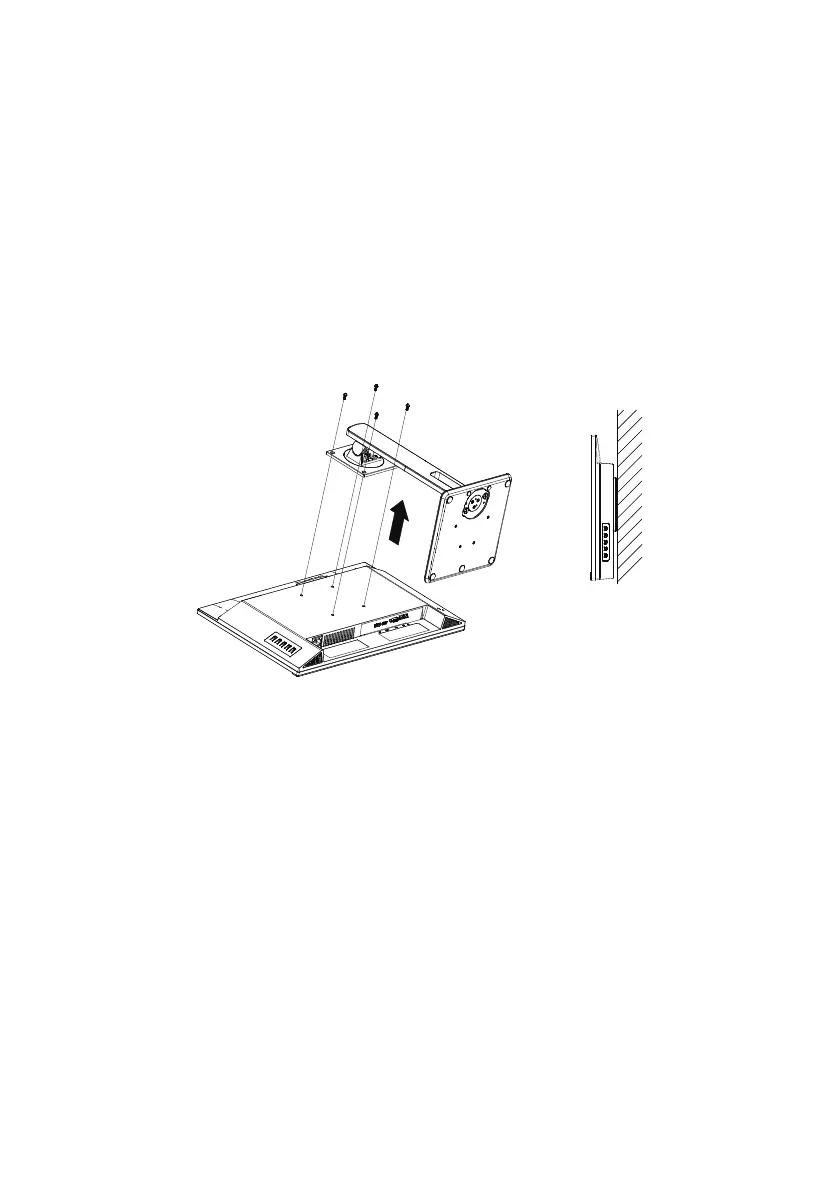

WALL MOUNTING (OPTIONAL)
Refer to the instructions that come with the base mounting kit. To convert your display from
a desk-mounted to a wall-mounted display, do the following:
1. Verify that the power button is turned O, then disconnect the power cord.
2. Remove the four screws attaching the base (screw dimension: M4 x 12mm).
3. Attach the mounting bracket from the VESA compatible wall mounting kit (100 mm x 100
mm distance),VESA Mounting Screw M4x15mm.
4. Attach the display to the wall, following the instructions in the wall-mounting kit.
NOTE: For use only with wall mount bracket with minimum weight/load: 26.5lb (12kg.)
Figure 7
