11
Step 2: Drilling

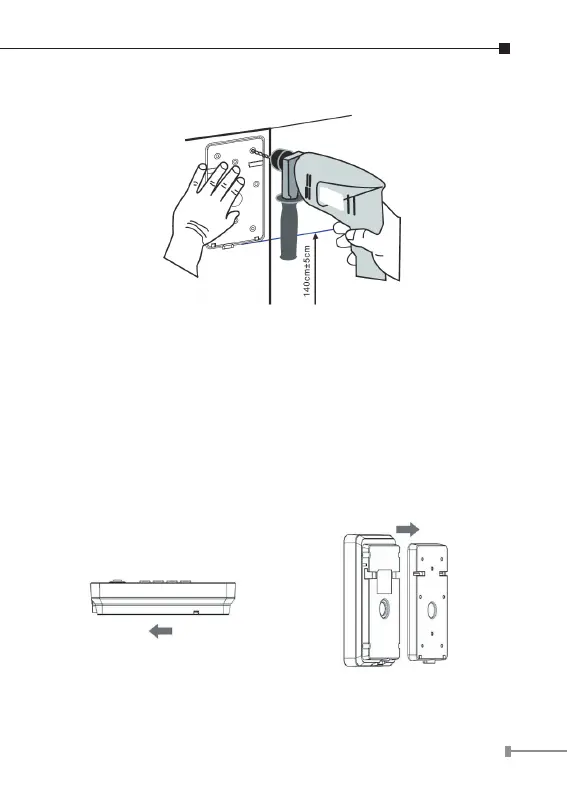

Figure 2 Wall Mounting
A. Place the mounting template with dimensions on the surface of a wall in
adesiredatposition.
B. Use an electric drill to drill the 4 holes marked on the mounting
template. It is recommended to drill about 30mm deep. Remove the
templatewhennishingdrilling.
C. Push or hammer screw anchors into the drilled holes.
Step 3: Removing Hanging Panel
A. Remove the hanging shell in Figure 3 and Figure 4.
Figure 3 Figure 4
