12
B.
With Phillips screwdriver

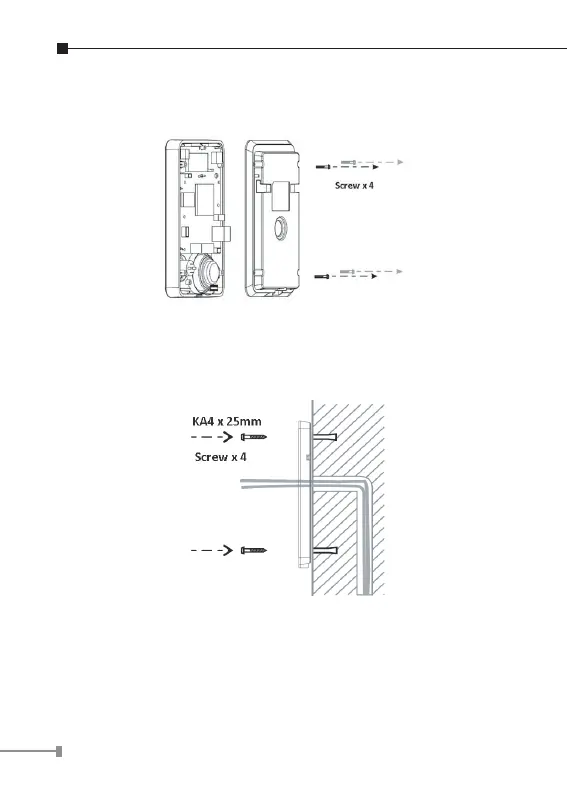

, unpack the Back Panel and the main part of
intercom as shown in Figure 5.
Figure 5
Step 4:
Hanging Shell Fixing and Cabling
Figure 6
A.
Select the hole for cable supply; cable length of 15cm to 20cm is
recommended.
B.
With 4 KA4 x 25mm screws, tighten the wall-mounted hanging shell
as
shown in Figure 6.
11
13
Table of Contents
Table of Contents
2
Package Contents
3
Physical Specifications
4
Front Panel
4
I/O Control Description
6
Installation
10
Searching Door Phone IP Address
15
SIP Door Phone Setting
16
Door Unlocking Setting
18
Customer Support
22
