Step 5: Connection Line

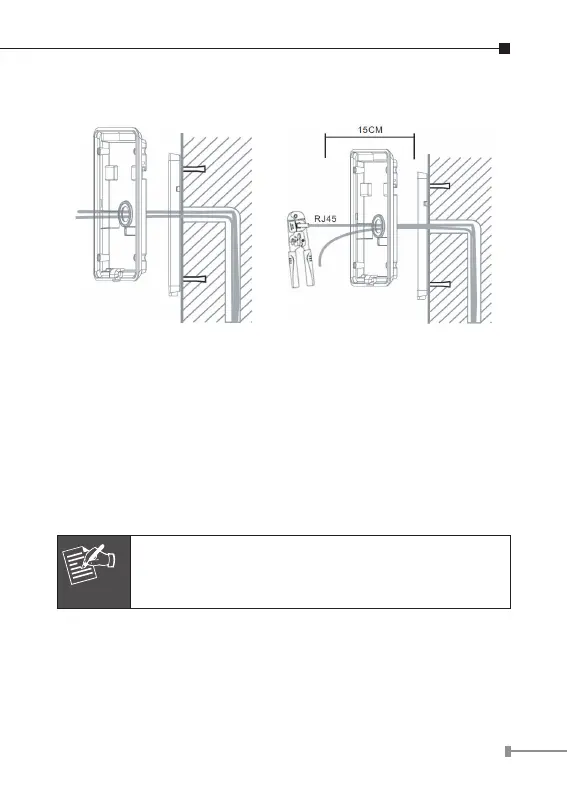

Figure 7 Figure 8
A. Select the hole for cable supply.
B. Connect the cables of RJ45, power, and electric-lock to the motherboard
socket as mentioned in connectors description (refer to Section 2).
C. Test whether there is electricity by doing the following:
1. Press the # button for 3 seconds to get the IP address of intercom
by voice.
2. Input access password or press the indoor switch to check electric-
lock installation.
Note
Do not proceed mounting until you have finished checking
the electricity!
