Planet ISW-501T User Manual

4
2. Hardware Introduction
2.1 Switch Front Panel
The front panel of the Industrial Ethernet Switch consists of Ethernet interfaces
and LED indicators.
 Front View
P1 P2 Alarm
10/100
ISW-501T
ACT
LNK
2
3
4
5
1
P1 P2 Alarm
6
7
8
5
2
3
4
1
10/100
ISW-801T
ACT
LNK

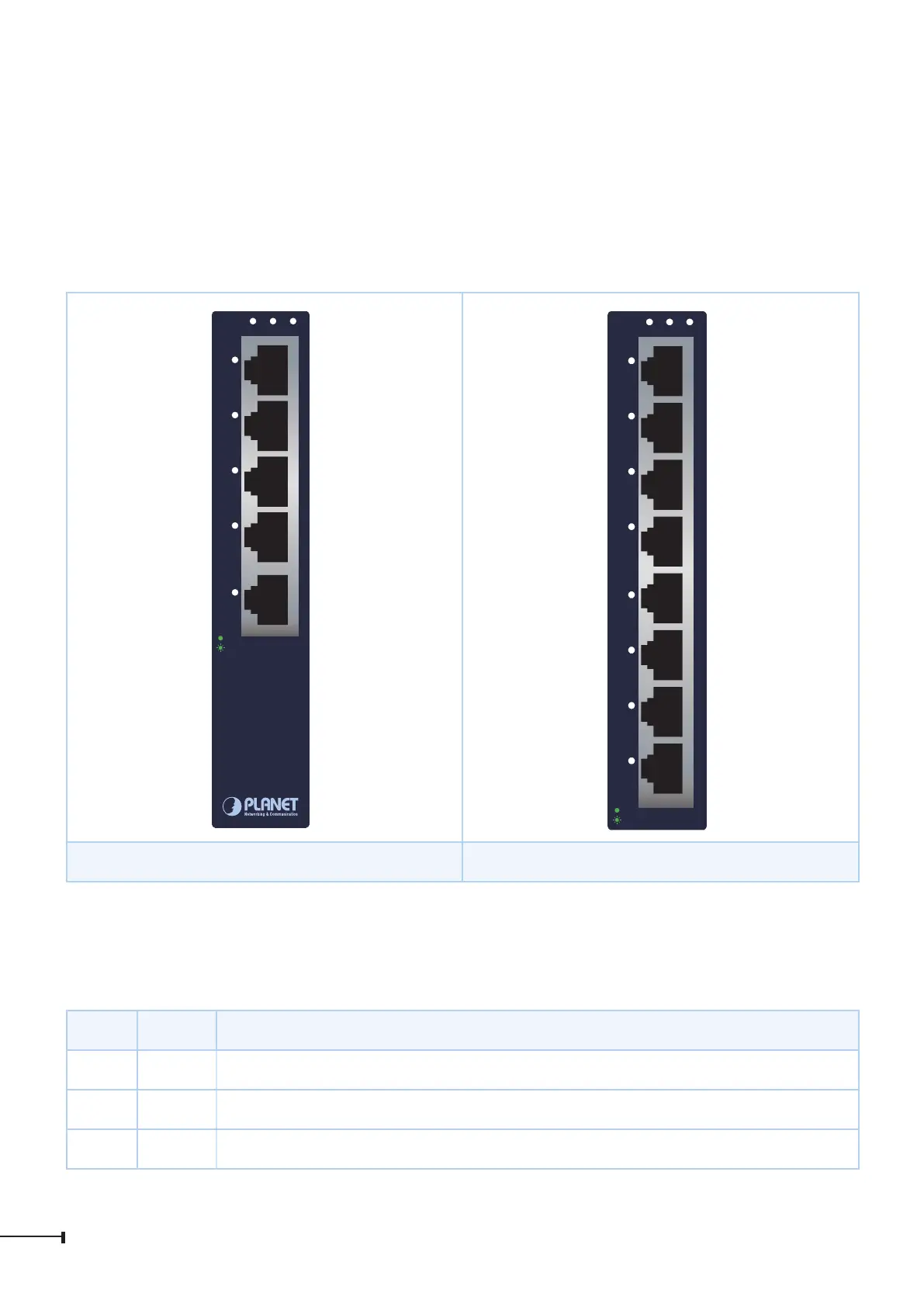

Figure 1: ISW-501T Front View Figure 2: ISW-801T Front View
2.2 LED Indicators
 System
LED Color Function
DC1 Green Lights: to indicate DC power input 1 has power.
DC2 Green Lights: to indicate DC power input 2 has power.
Alarm Red Lights: to indicate that AC or DC power has failed.
