Planet MGSW-24160F Quick Installation Guide

11

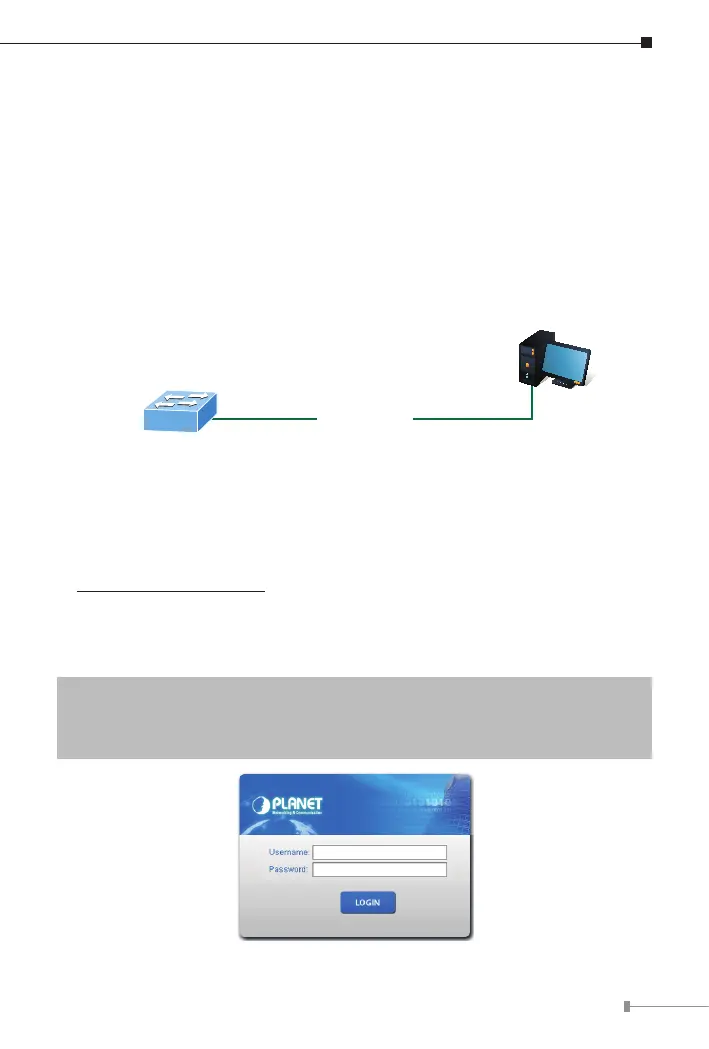

5. Starting Web Management
The following shows how to start up the Web Management of the Managed
Metro Switch. Note the Industrial Metro Switch is congured through an
Ethernet connection. Please make sure the manager PC must be set to the
same IP subnet address as shown in Figure 5-1.
For example, the default IP address of the Managed Metro Switch is
192.168.0.100, then the manager PC should be set to 192.168.0.x(wherex
is a number between 1 and 254, except 100), and the default subnet mask is
255.255.255.0.
PC / Workstation
with Web Browser
192.168.0.x
Managed Switch
RJ45/UTP Cable
IP Address: 192.168.0.100
Figure 5-1: IP Management Diagram
5.1 Logging in to the Managed Metro Switch
1.Use Google Chrome or above Web browser and enter IP address
https://192.168.0.100 to access the Web interface.
2. When the following dialog box in Figure 5-2 appears, please enter the
default user name and password. Refer to Section 4.1 to determine your
initial login password.
DefaultIPAddress:192.168.0.100
DefaultUsername:admin
Default Password: sw + the last 6 characters of the MAC ID in lowercase
Figure 5-2: Web Login Screen

Planet MGSW-24160F Specifications

General

Console port	RS-232
Compatible memory cards	Not supported
SFP module slots quantity	16
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
10G support	No
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Private VLAN, Protocol-based VLAN, Port-based VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-FX, 100BASE-TX, 100BASE-T, 1000BASE-T, 1000BASE-TX
MAC address auto-learning supported	Yes
Throughput	35.6 Mpps
Jumbo frames	10000
MAC address table	16000 entries
Form factor	1U
Product color	Blue
Number of fans	2 fan(s)
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	38 W
Number of multicast groups filtered	255
Switch type	Managed
Switch layer	L2+
DHCP features	DHCP server, DHCP client
Security algorithms	SNMP, SSH, SSL/TLS
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	5 - 95 %
Transmission distance (max)	120 km
Fiber ethernet cabling technology	1000BASE-X
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	200 mm
Width	440 mm
Height	44.5 mm
Weight	3000 g
