Chapter 2 Installation
2.1 Hardware Installation
To install the UPS in a 19-inch standard rack, please follows the instructions
described below.
Step1: Place the switch on a hard flat surface, with the front panel positioned
towards the front side.
Step2: Attach the rack-mount bracket to each side of the UPS with supplied screws
attached to the package.

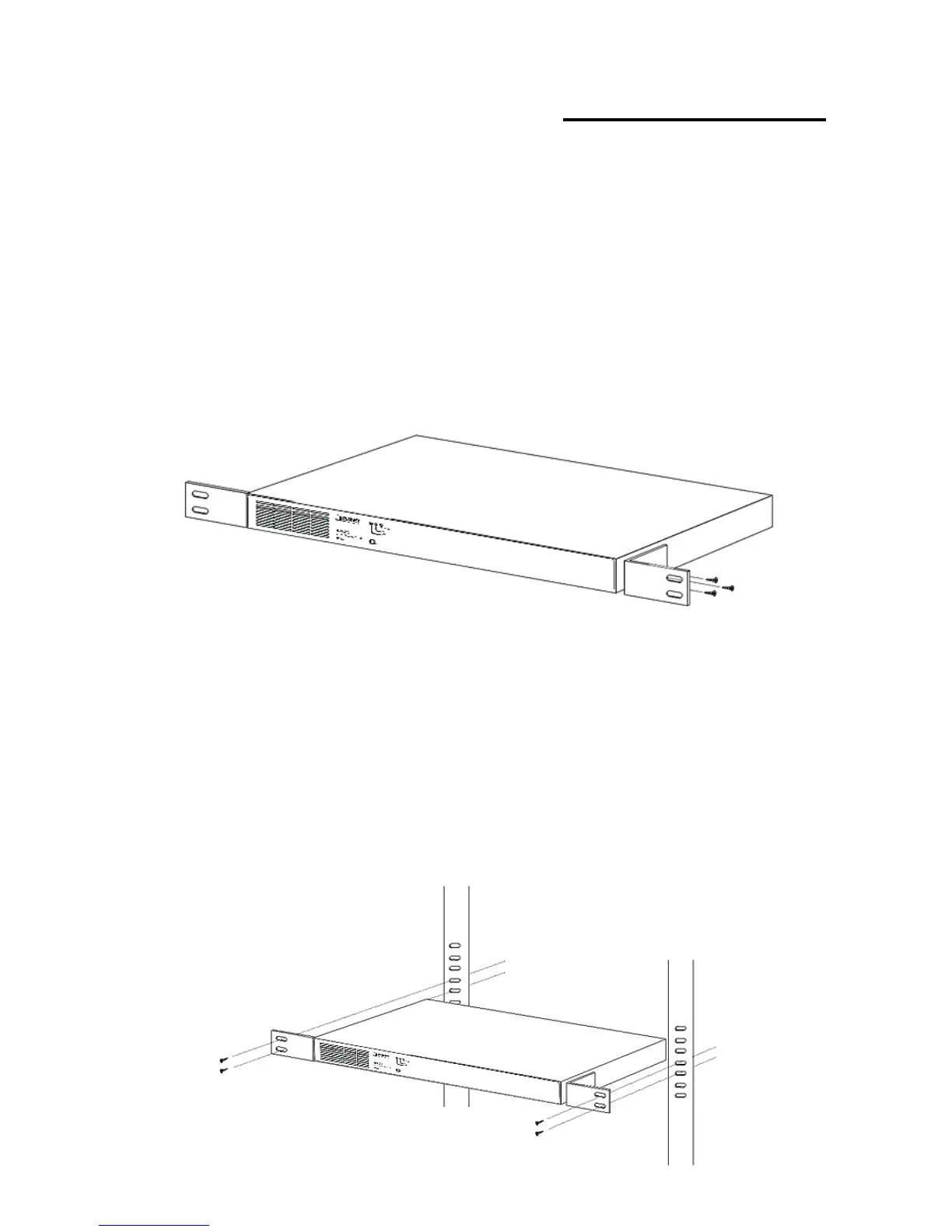

Figure 2-1 shows how to attach brackets to one side of the UPS.
Figure 2-1 Attach brackets to the UPS.
Caution:
You must use the screws supplied with the mounting brackets. Damage caused to
the parts by using incorrect screws would invalidate the warranty.
Step3: Secure the brackets tightly.
Step4: Follow the same steps to attach the second bracket to the opposite side.
Step5: After the brackets are attached to the UPS, use suitable screws to securely
attach the brackets to the rack, as shown in Figure 2-2
