User Manual of WDRT-731U
-10-
WPS
Flash
The system is performing WPS authentication on a client
device.
On The 5G WiFi is activated
5G
Flash Device is transmitting data wirelessly over 5GHz
On The 2.4G WiFi is activated
2.4G
Flash Device is transmitting data wirelessly over 2.4GHz
On Link is established
Flash Packets are transmitting or receiving
LAN
1~4
Off LAN port is not connected
On Link is established
Flash Packets are transmitting or receiving
WAN
Off WAN port is not connected
On The USB port is correctly connected
USB
Off The USB port is not connected
Table 2-1 The LEDs indication
2.1.3 The Rear Panel
The rear panel provides the physical connectors connected to the power adapter and any other network devices.

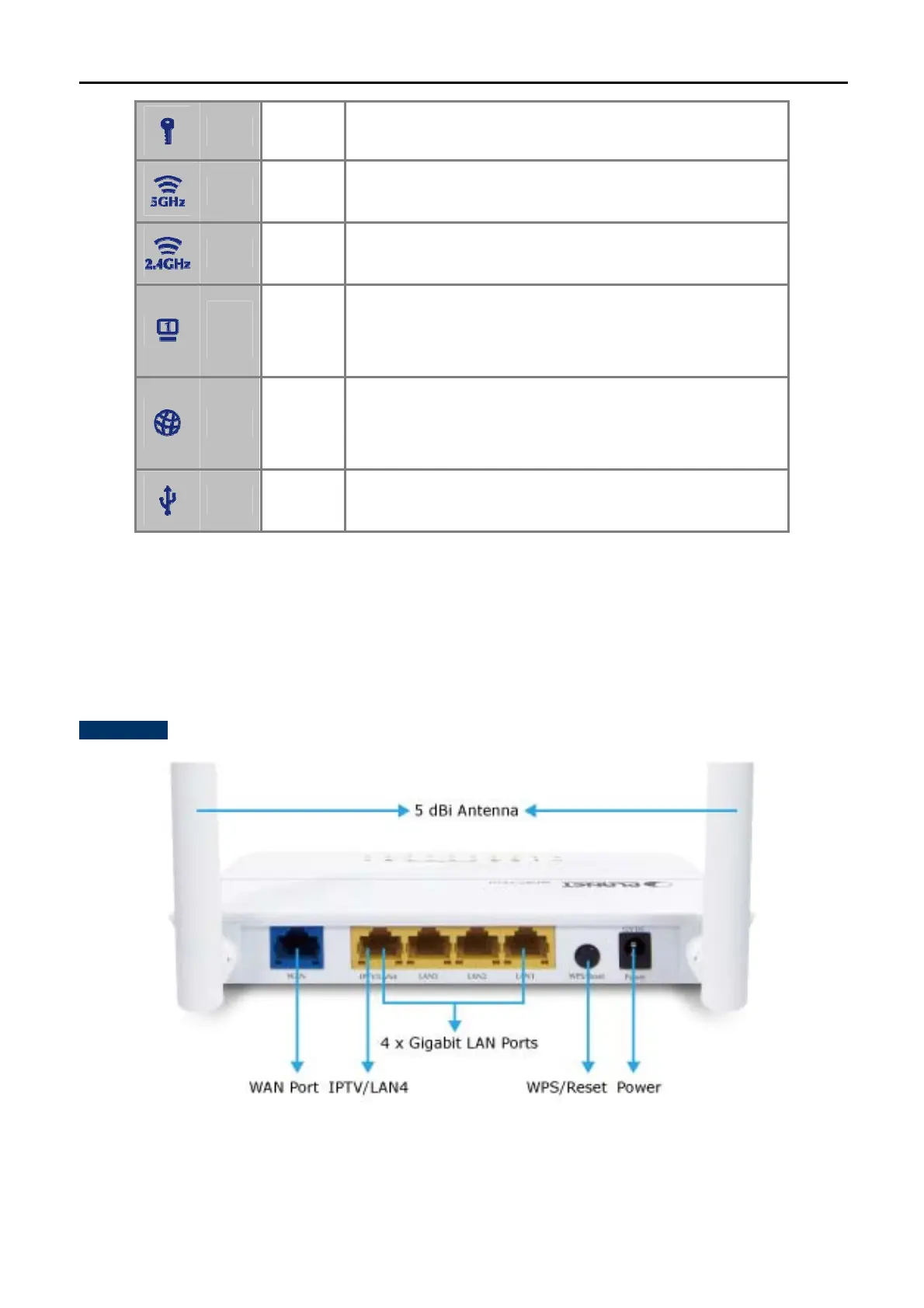

Figure 2-3 shows the rear panel of WDRT-731U.
Rear Panel
Figure 2-4 Rear Panel of WDRT-731U
