2.3 Product Architecture
2.3.1 Base Unit

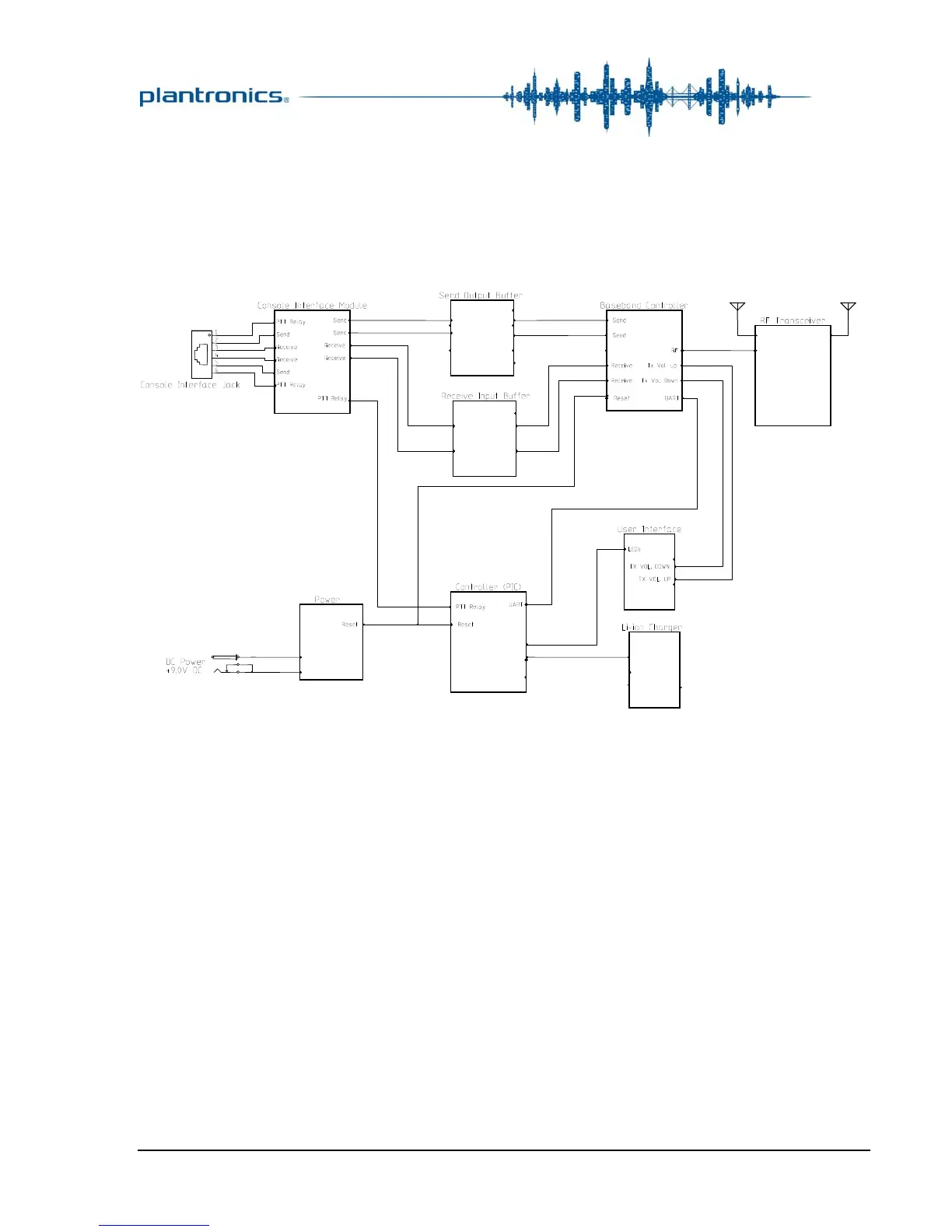

The block diagram of the Model CA12CD base is shown in Figure
2.
Figure 2: Base-Unit Block Diagram
