0-10 vsc control Zone 1
0-10 vsc control Zone 2
Light Line Zone or Circuit 1
Power In
110-240 Volts
Light Line Zone or Circuit 2
Cannot have common
Neutral between
Light Lines and
Dimmer/Controller
Dimmer
Plasson
Controller
Hot Neutral Ground
Hot
Neutral
Hot
Neutral
ENTER
POWER
EXIT PROGRAM
BACK
ENTER
EXIT
POWER
BACK
PROGRAM
Normal
Alarm
Fig. 5: Keypad
Fig. 6: Leds
Power
on/o key
Back key
Exit key
Program key
Up key
Down key
Left, right key
Entry key

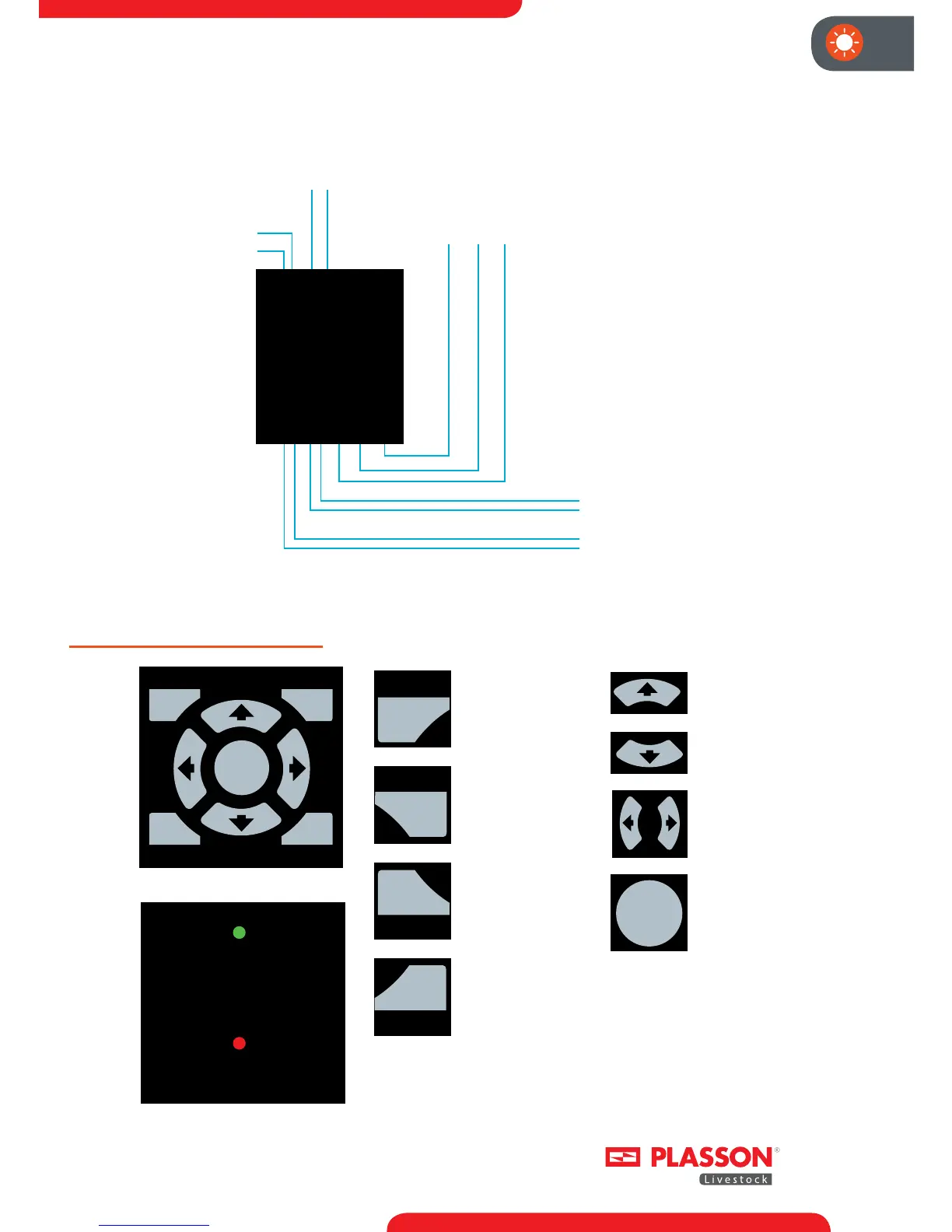

Fig 4: Full installation wiring
for Plasson Dimmer-Controller
