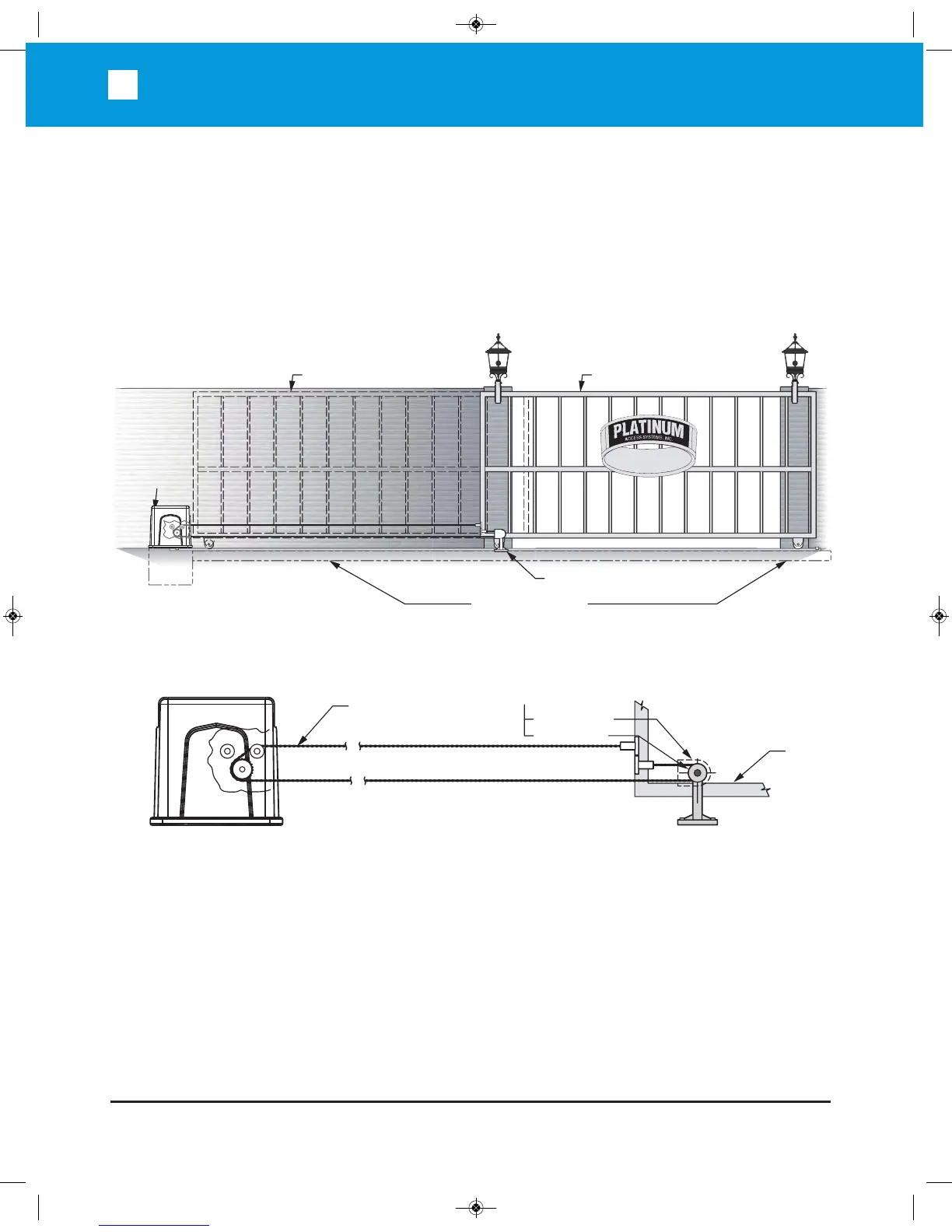

Types of Installations
REAR INSTALLATION
Gate
Safety Guard
Fixed Pulley
Route Chain
As Shown
etail of Rear Install ain Rote
Gate Operator
Concrete Pad
Gate Operator
Concrete Pad
Gate
Operator
Open Position Closed Position
Track Concrete Pad
See Detail Below
Parts Not Supplied by
Platinum Access Systems
