Platinum BLSL2250 - Primary;Secondary Connections

22
TECHNICAL SUPPORT: (909) 259-6001
BLSL2250

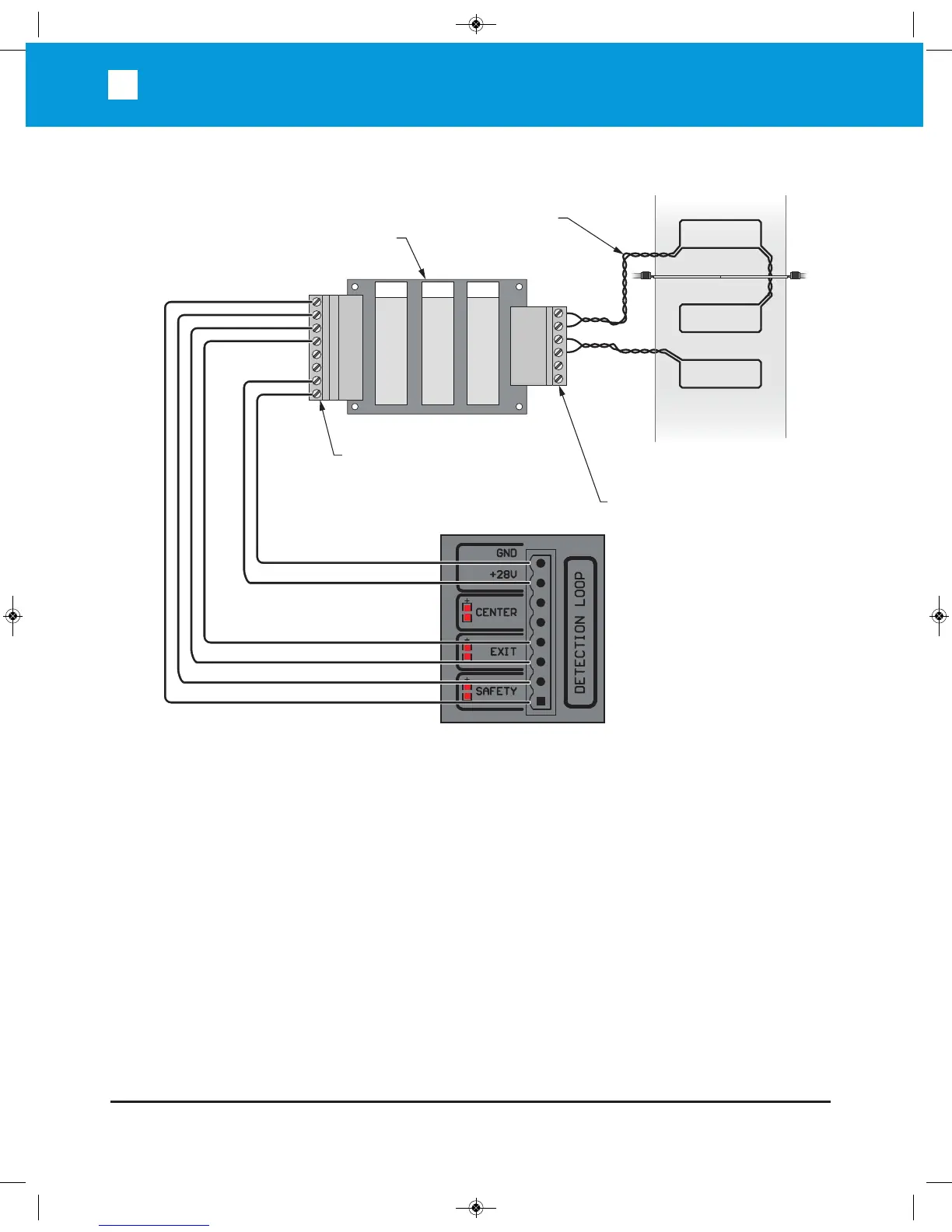

Installation: Loop Rack
Exit
Safety
Inside
Outside
Center
Exit
Gnd
Safety
Twist Wire Outside the
Loop 6 Twists/Foot
Until Its Connection
to the Loop Rack
Inside Safety
Loop
Outside Safety
Loop
Exit
Loop
Loop Connector
Control Board
Connector
Loop Rack (#GOC-LDR)
Safety Exit Center
28V
Gnd
Gnd
Gnd
