CONCRETE PAD
1.
Follow the local building code to determine the requirement of the concrete pad.
2. We recommend the Pad measurements should be at least 28
"
long, 20
"
wide,
and 24
"
deep to ensure the stable operation of the operator, and a minimum
of 4
"
above level grade to avoid any flooding of the operator.
3. To support the weight of the gate, we recommend the path of the track should be
at least 10
"
wide and 6
"
deep.
D
rill for a
1
/
2
"
x 3
1
/
2
"
R
ed Head Anchor
(
4) Places
2
0"
24"
1
0"
6
”
T
rack
2
"
9
1
/
4
"
Minimum
4"
M
inimum
28"
2
0
3
/
8
"4
"

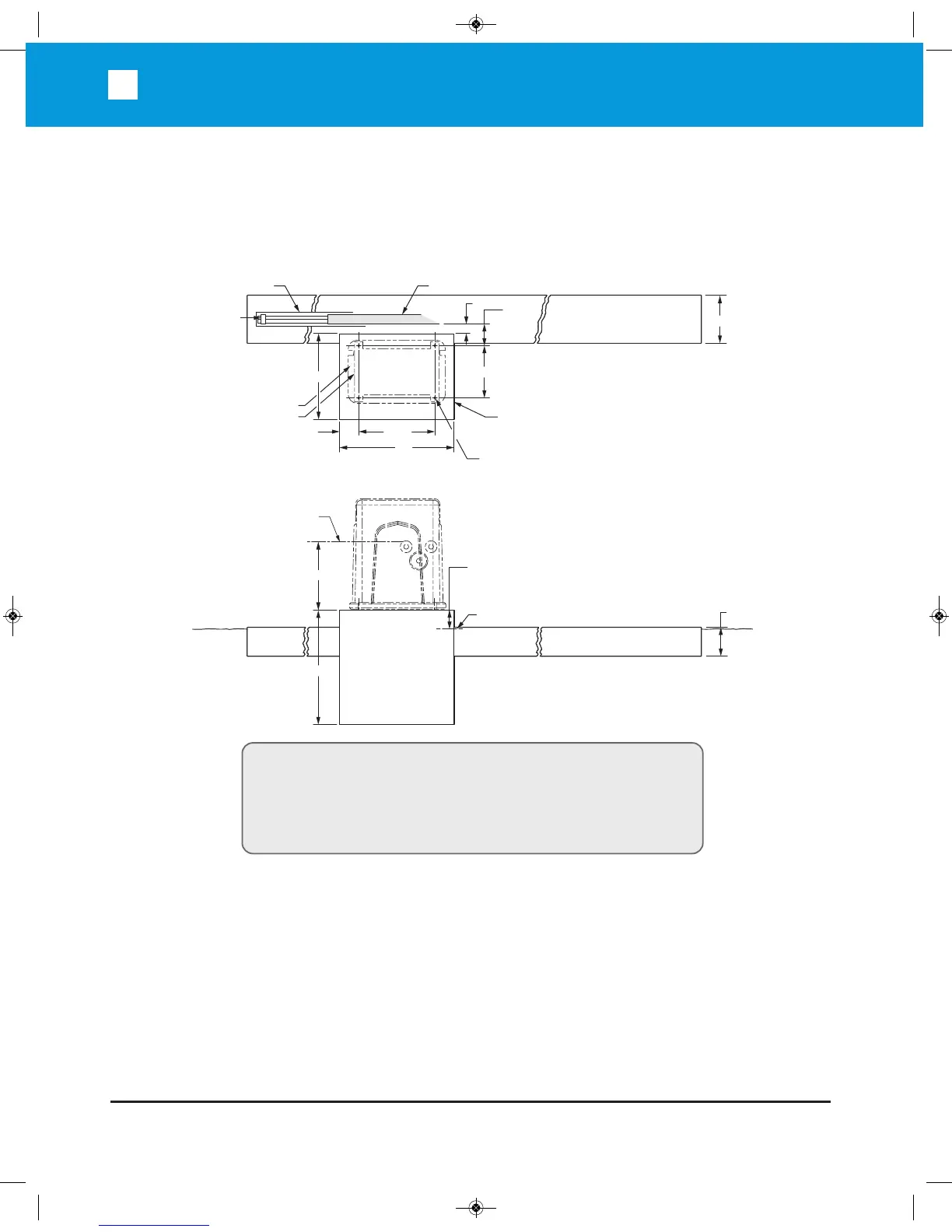

Gate Operator Concrete Pad
Gate Operator Concrete Pad
Install a
Positive Stop
a
t Both Ends
o
f the Track
O
perator Cover
Track Concrete Pad
T
rack Concrete Pad
G
ate
Grade Level
See Note 2
Operator Chassis
12
7
/
8
"
Chain
6"
To Next Page
