BLSL2250
Installation: Electrical

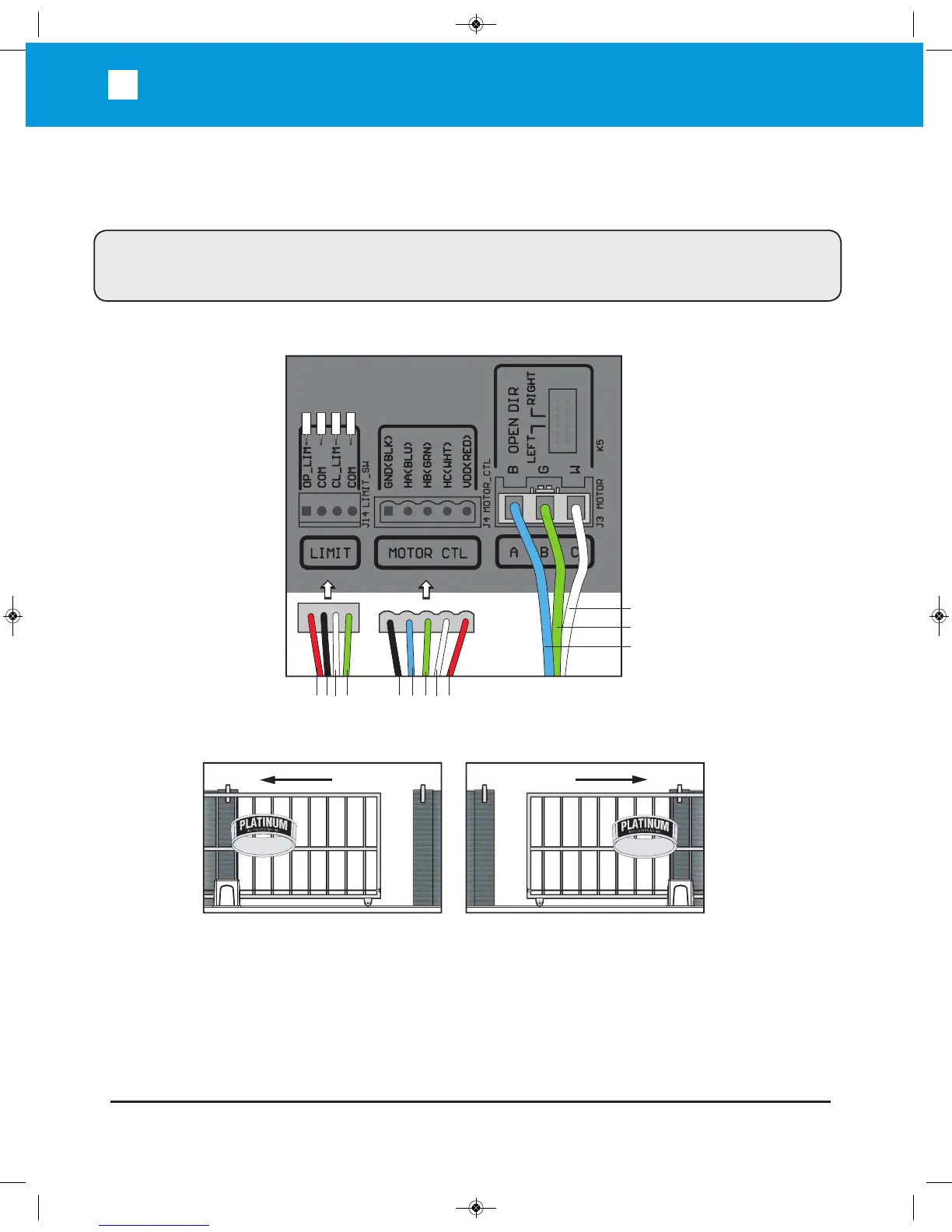

CONNECTING POWER: (PRE-WIRED)
Connect the LIMIT harness to J14, and MOTOR CTL harness to J4.
On the OPEN DIR switch: Select “RIGHT” to open right.
Select “LEFT” to open left.
OPEN LEFT OPEN RIGHT
White
Green
Black Red
White
Green
Blue
Black
Blue
Green White
Red
Red Black
White
Green
