Plinius SB-301 - Amplifier Features - REAR PANEL

7
PUSH PUSH
Z258
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
A M P L IFIER CON FIGURATION SELECT OR
REFER TO OW NERS MANUAL FOR USAGE INSTRUCTIONS
RCA STEREO XLR STEREO
1100VA
PLINIUS SB-301
STEREO POW ER
A
MPLIFIER
SERIAL No. MAINS FUSE
POWER
CONS UM PTI ON
FREQUENCYVOLTAGE
AMPLIFIER FEATURES – REAR PANEL
This panel incorporates all the terminals for connecting the input signals from your processor, and output
to the loudspeakers, and mains supply. A reasonable understanding of this amplifier and a logical
approach should ensure that you are listening to this amplifier without any difficulties at all.
Please remember that your Plinius SB-301 Power Amplifier is a high quality electronic instrument capable
of an exceptional level of performance. Be sure that you understand your system’s requirements fully
before you make any connection to this amplifier or adjust the ACS (Amplifier Configuration Selector).

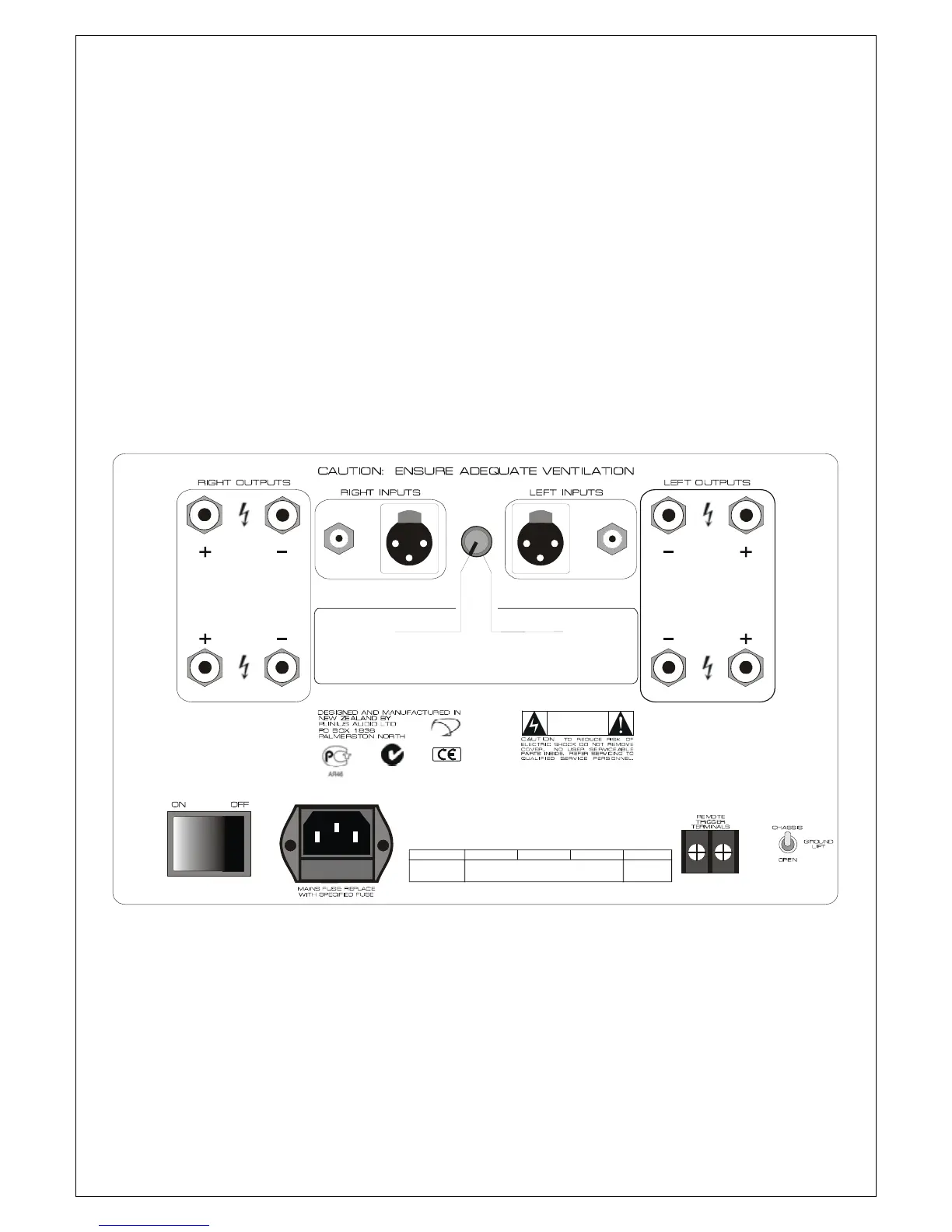

REAR PANEL OF THE PLINIUS SB-301 SHOWING ALL OF THE AVAILABLE
FACILITIES INCLUDING INPUT AND OUTPUT TERMINALS, ACS (AMPLIFIER CONFIGURATION SELECTOR),
M
AINS INPUT, REMOTE TRIGGER AND GROUND LIFT.
