11

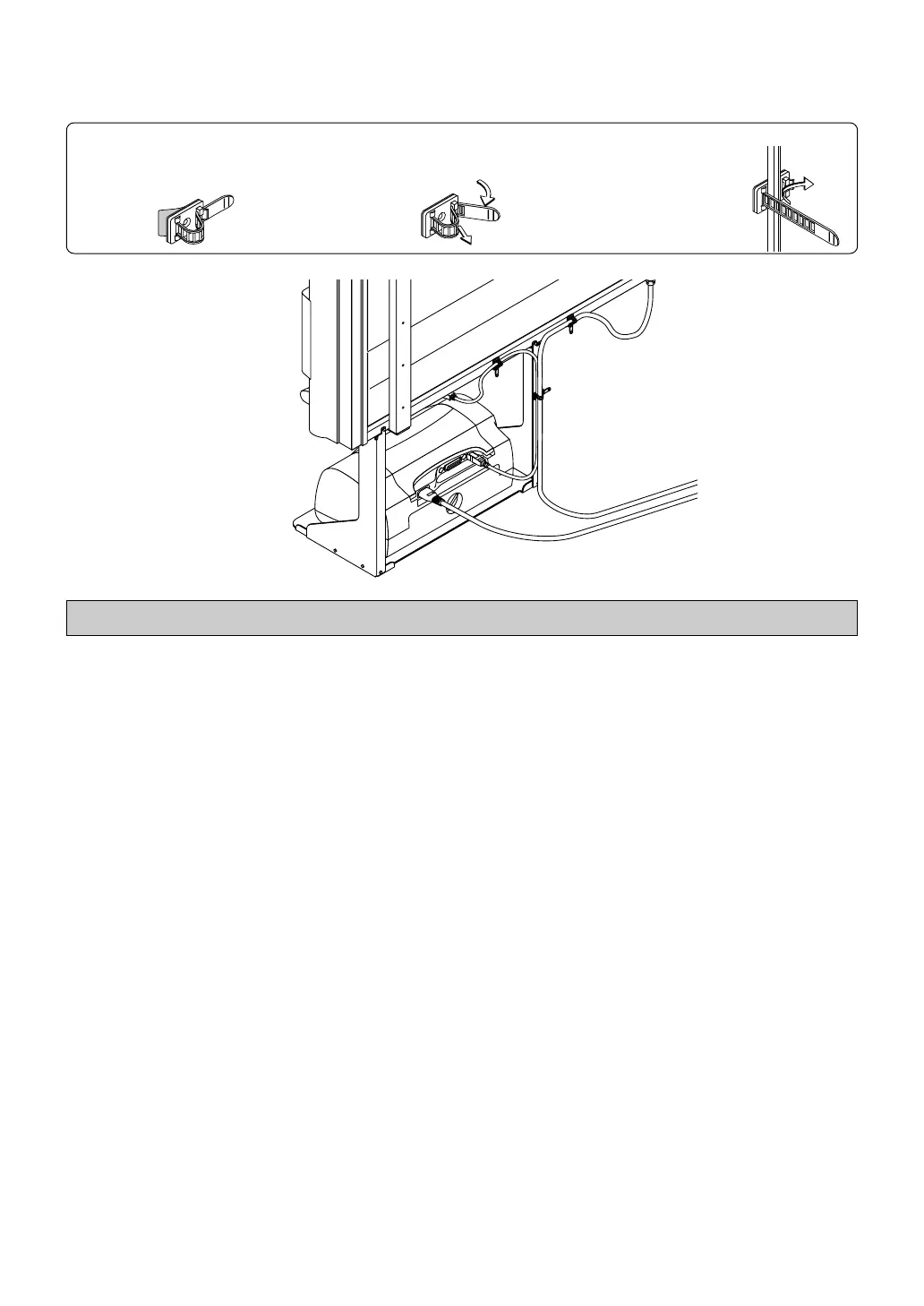

(3) Fasten the power cable and the USB cable with the supplied cable clips.
This completes the installation. Please check once again that the screws and connectors are securely fastened.
1.Remove the backing paper from
the rear surface of the clip and
affix the clip at the desired loca-
tion.
2.Raise the band of the clip, dis-
engage it from the hook, and pull
it out.
3.After finishing the cable
wiring, pass the band end
of the clip through the
guide slot and fasten it by
engaging it on the hook.
Wiring Example
To Next Page
