w Pot_1 = measuring range 100...180W,
Pot_2 = measuring range 100...400W.
w Reaction with sensor break:
S_UP = action as input value higher than display range, 99999 blinking
S_do = action as input value lower than display range, 00000 blinking
w noCAL = no calibration. However, the scaling values can be changed
(x
0
/x
100
fixed, w
0
/w
100
variable).
w CAL = Calibrate as follows:
+
With display 0!o, bring the transducer to span start and press
I and D to adjust the required start of display range, e.g. 0%.
Press M to confirm.
+
With display 100!o, bring the transducer to span end and press
I and D to adjust the required end of display range, e.g. 100%.
Press M to confirm.

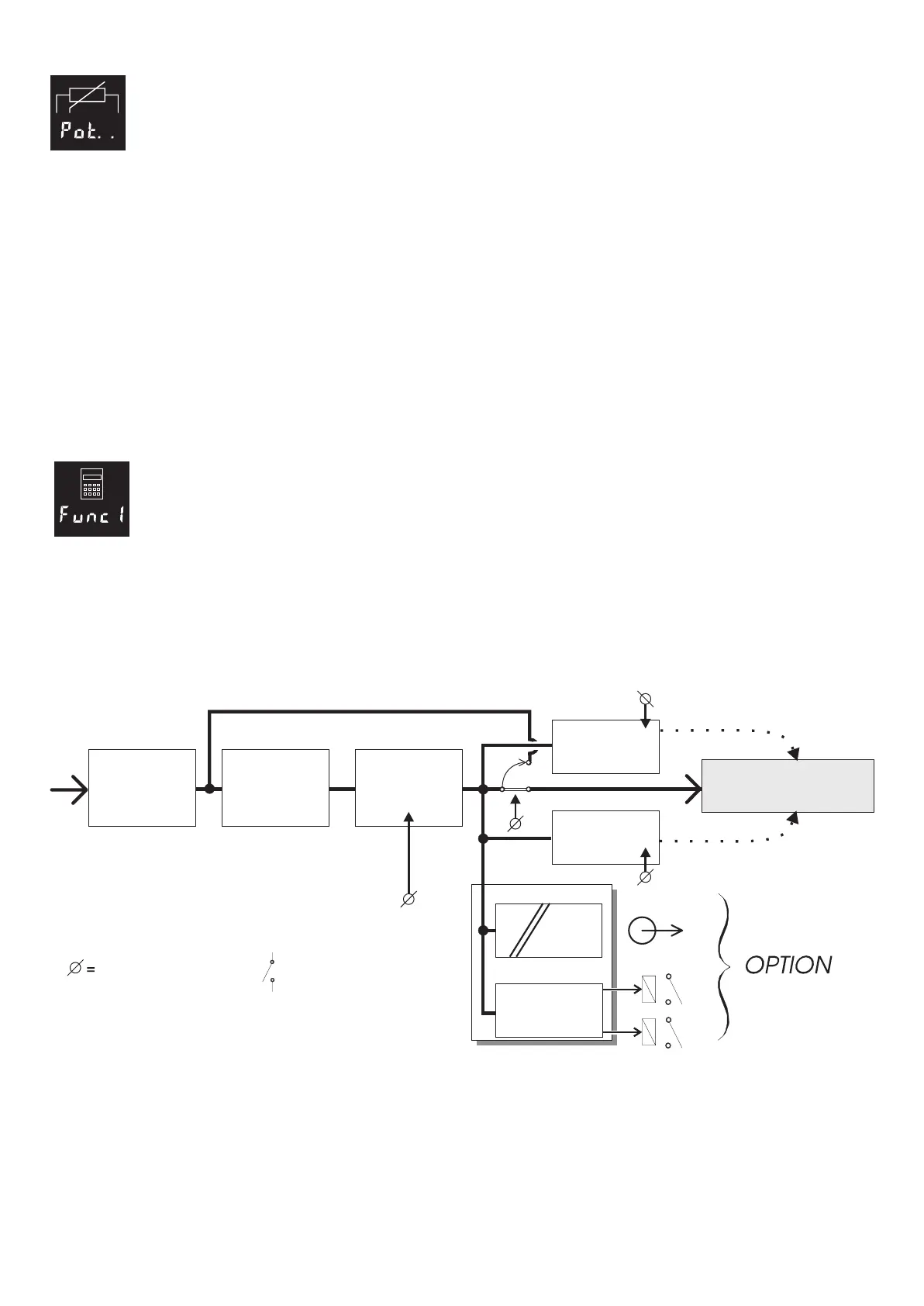

One of 7 mathematic functions can be selected. With thermocouples, Pt100
and standard signals with linearization, the input variable of mathematic
function 1 is a temperature in °Cor°F. With all other measuring ranges,
function 1 refers to the values for w
0
/w
100
adjusted in menu Input.
9499-040-24701 9
InPut
Func1 Func2
Ct-di
Ct-Hi
displ
Ct-Lo
OutP
AlAr
Ct-F2
CHAr LAG1
SQrT QUAd Ln
LG E-Fct
,,
,,,
,
TArA TrSt
IntE LEAd
LAG1
,,
,,
143.21
Function 1
Function 2
Maximum
value
Minimum
value
Analog
output
Limit
contacts
Measurement
&
Monitoring
control contact or function key F
(_)Ct-
