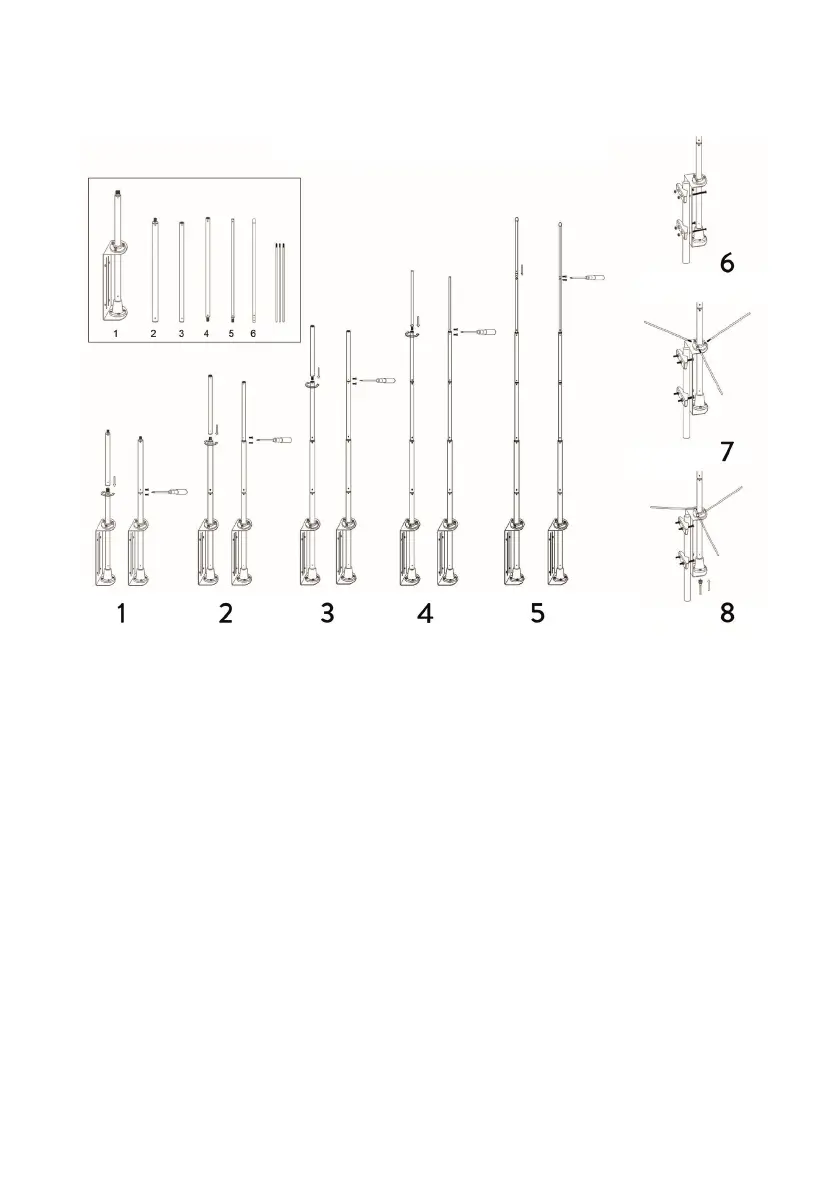

Installation instructions Base Antenna PNI DBA27
1. Screw the second segment of the antenna onto the base structure of the
antenna. Fix the two segments with 2 screws.
2. Screw the third segment of the antenna onto the previously mounted
segment. Fix the two segments with 2 screws.
3. Screw the fourth segment of the antenna onto the previously mounted
segment. Fix the two segments with 2 screws.
4. Screw the fifth segment of the antenna onto the previously mounted
segment. Fix the two segments with 2 screws.
5. Screw the sixth segment of the antenna onto the previously mounted
segment. Fix the two segments with 2 screws.
6. Fix the base of the antenna to the pole with the help of screws.
7. Screw the 3 metal rods.
8. Connect the cable to the SO239 connector of the antenna.
