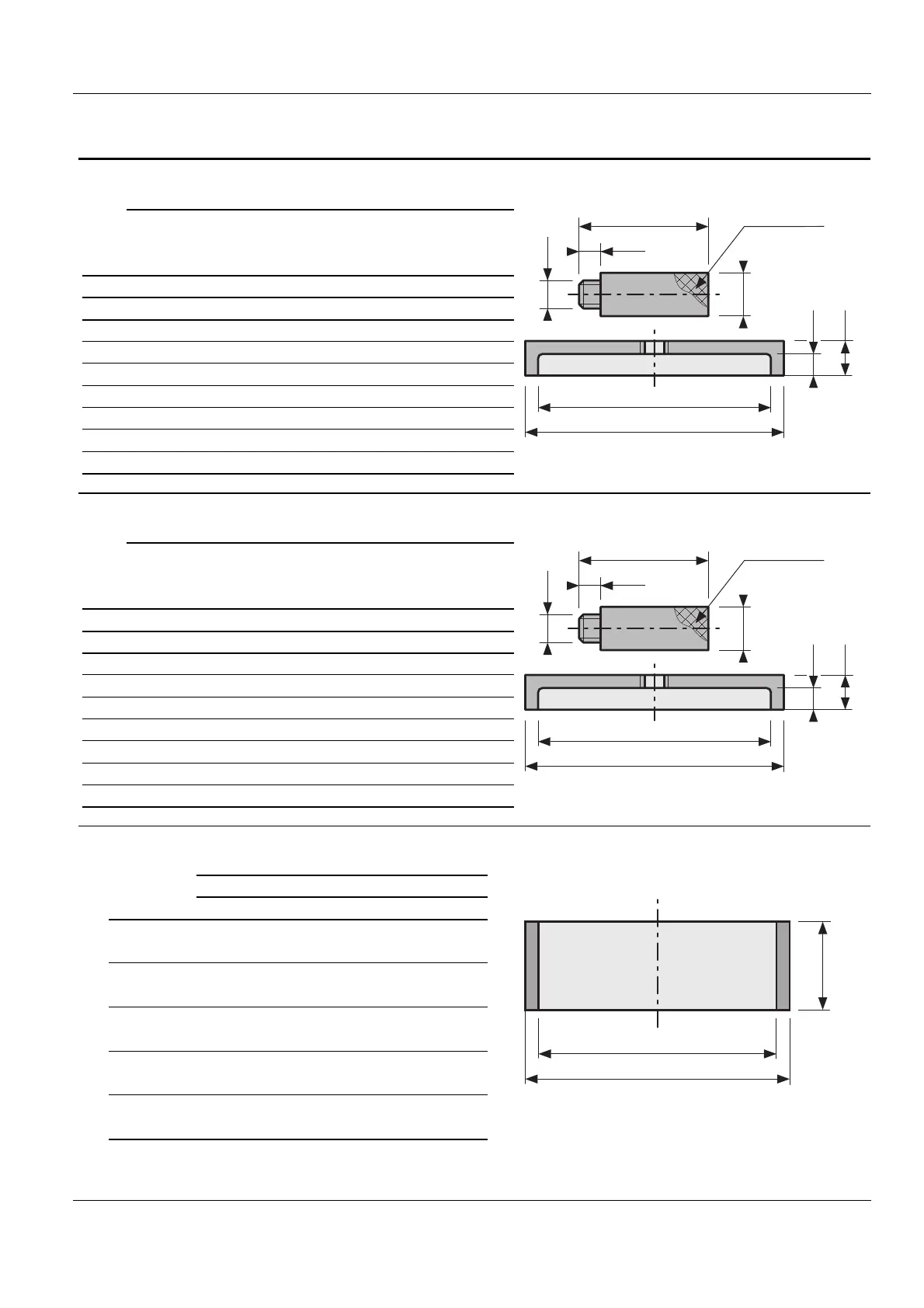

Désignation
Description
Mandrin pour comprimer la
rondelle élastique
Mandrel to compress the
spring washer
F02-F03
F04-F05
F07
F08-F09
F11-F12
F12- F19
F21
MX
M12 M12 M16 M16
mm
in mm in mm in mm in
ØA
100 3.93 115 4.53 150 5.90 180 7.08
ØB
110 4.30 125 4.93 160 6.30 190 7.48
C
100 3.93 100 3.93 100 3.93 100 3.93
ØD
35 1.37 35 1.37 35 1.37 35 1.37
E
20 0.78 20 0.78 20 0.78 20 0.78
F
30 1.18 30 1.18 30 1.18 30 1.18
G
10 0.39 10 0.39 10 0.39 10 0.39
ØB
ØA
F
G
ØD
C
E
MX
Moletage
Milling
Mandrin pour monter la coiffe
de frein
Mandrel to install the brake
cover
F02-F03
F04-F05
F07
F08-F09
F11-F12
F12- F19
F21
MX
M12 M12 M16 M16
mm
in mm in mm in mm in
ØA
125 4.92 145 5.71 185 7.28 205 8.07
ØB
135 5.31 155 6.10 195 7.67 215 8.46
C
100 3.93 100 3.93 100 3.93 100 3.93
ØD
35 1.37 35 1.37 35 1.37 35 1.37
E
20 0.78 20 0.78 20 0.78 20 0.78
F
30 1.18 30 1.18 30 1.18 30 1.18
G
10 0.39 10 0.39 10 0.39 10 0.39
ØB
ØA
F
G
ØD
C
E
MX
Moletage
Milling
Tube pour immobiliser le mo-
teur
Tube to immobilize the motor
ØA ØB L
mm
in mm in mm in
MS02
MSE02
45 1.78 55 2.16 110 4.33
MS05
MSE05
60 2.36 70 2.75 120 4.72
MS08
MSE08
75 2.95 85 3.35 140 5.51
MS11
MSE11
85 3.35 95 3.74 160 6.3
MS18
MSE18
100 3.94 110 4.33 200 7.87
ØB
ØA
L
