FROGGY - Portable monitor, 750 lpm FROGGY - Portable monitor, 750 lpm
13
MOP_LMM_02144_EN_A - 13/03/2019 - Copyright© POK SAS - Illustrations are only informative
Installation
Instructions for use
Installation
Instructions for use
• Connecting
- 1 - Connect the diuser or branchpipe (not inclued with monitor) on the outlet tting and connect the hose
on the inlet tting with the relevant coupling (Fig. 7)
- 2 - A straight hose lenght of 5 meters must be set behind the monitor (Fig. 8).

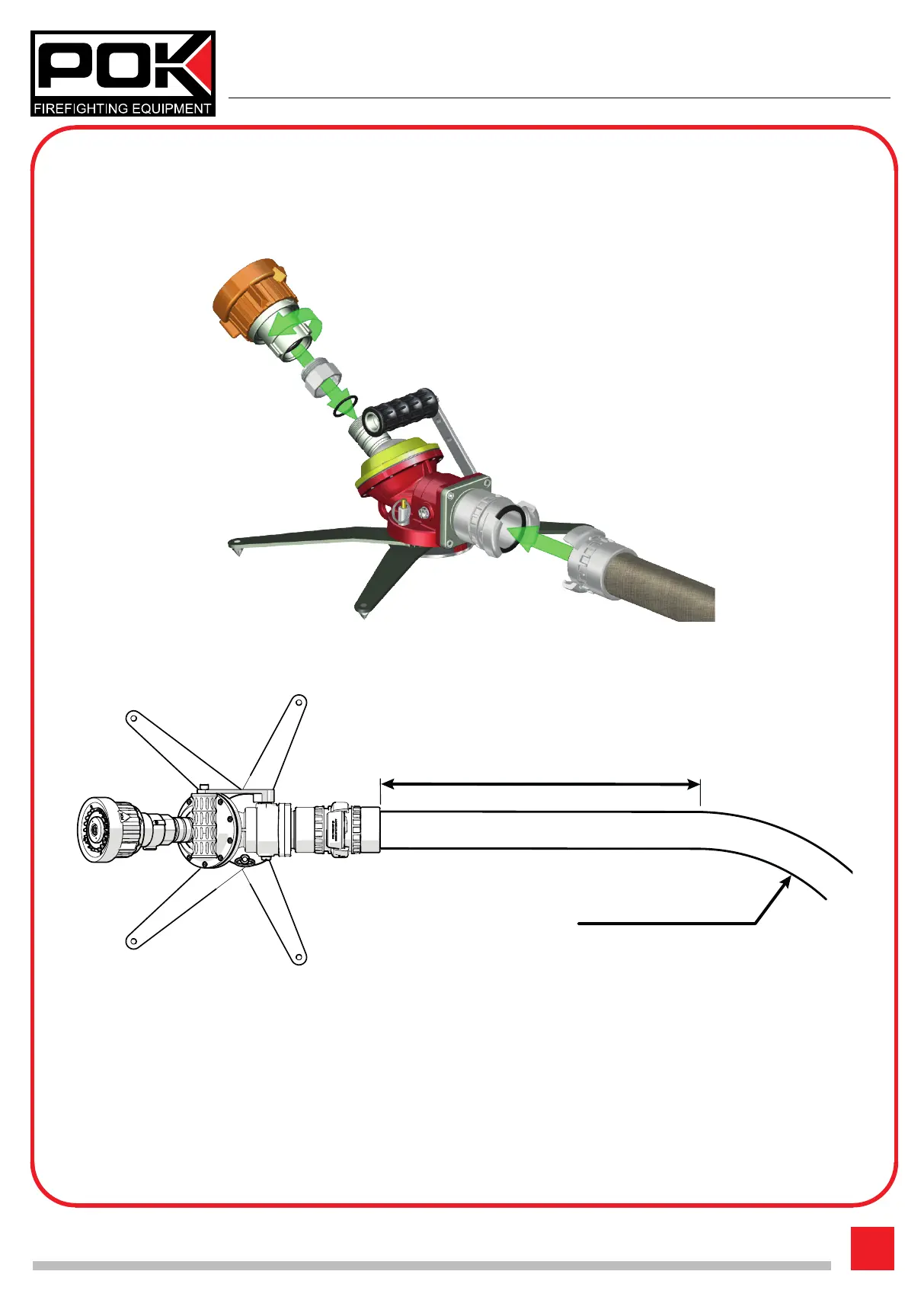

Fig. 7
Fig. 8
5 meters mini.
R 20 meters mini.
