77
ADULT SECTION
Maintenance
Handlebar Adjustment
6. Slide the handlebar pad
upward to access the adjuster
bolts. If additional room is
required, unzip one of the
handlebar pad zippers and roll
the pad to the side.

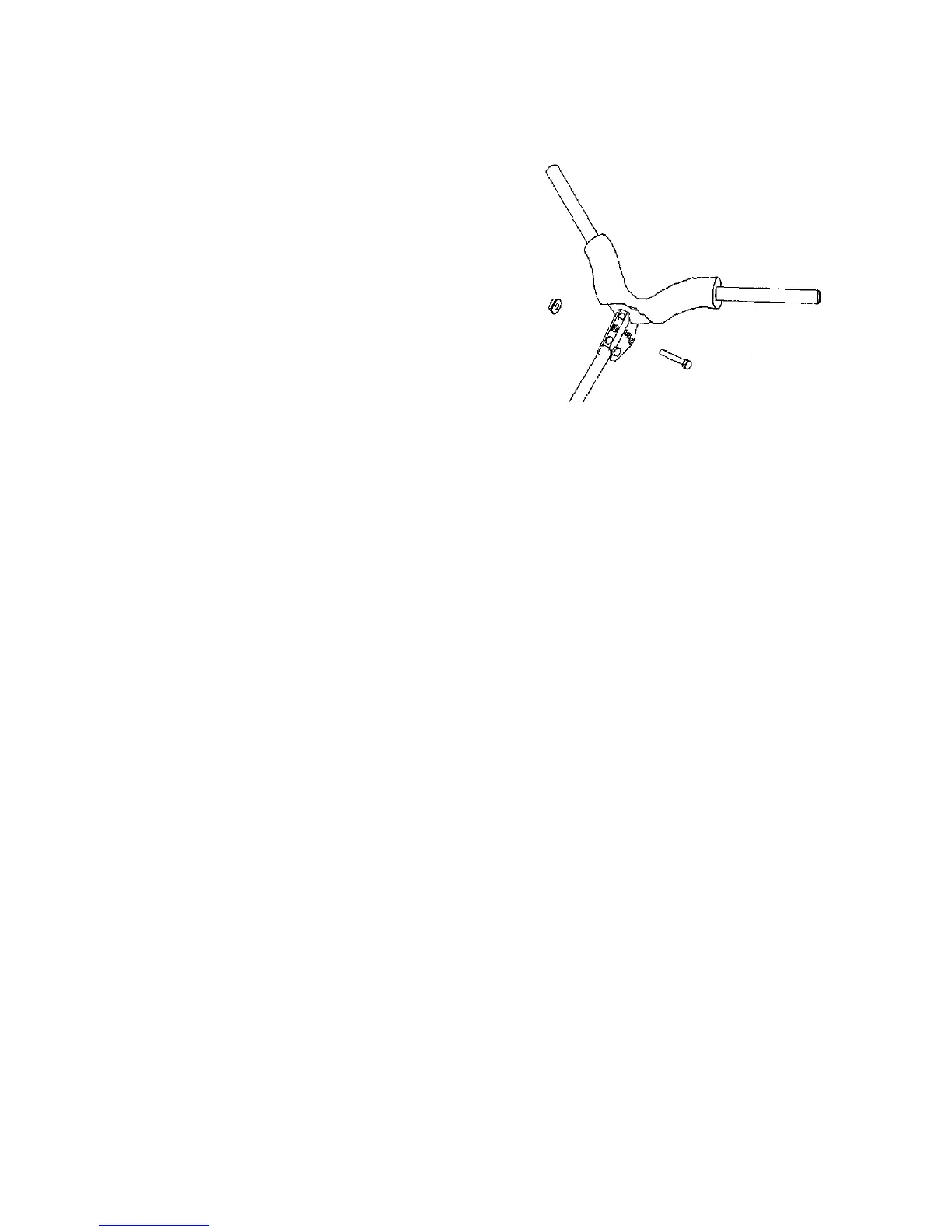

7. To adjust, remove the upper
flange nut and carriage bolt.
8. Loosen the lower flange nut
only enough so the bracket can
move freely.
9. Position t he handlebar to the desired height and re-install the upper
carriage bolt and flange nut.
10. Torque the flange nuts to 15-17 ft. lbs. (20-23 Nm).
11. Reinstall the handlebar pad.
