Maintenance
Suspension Components

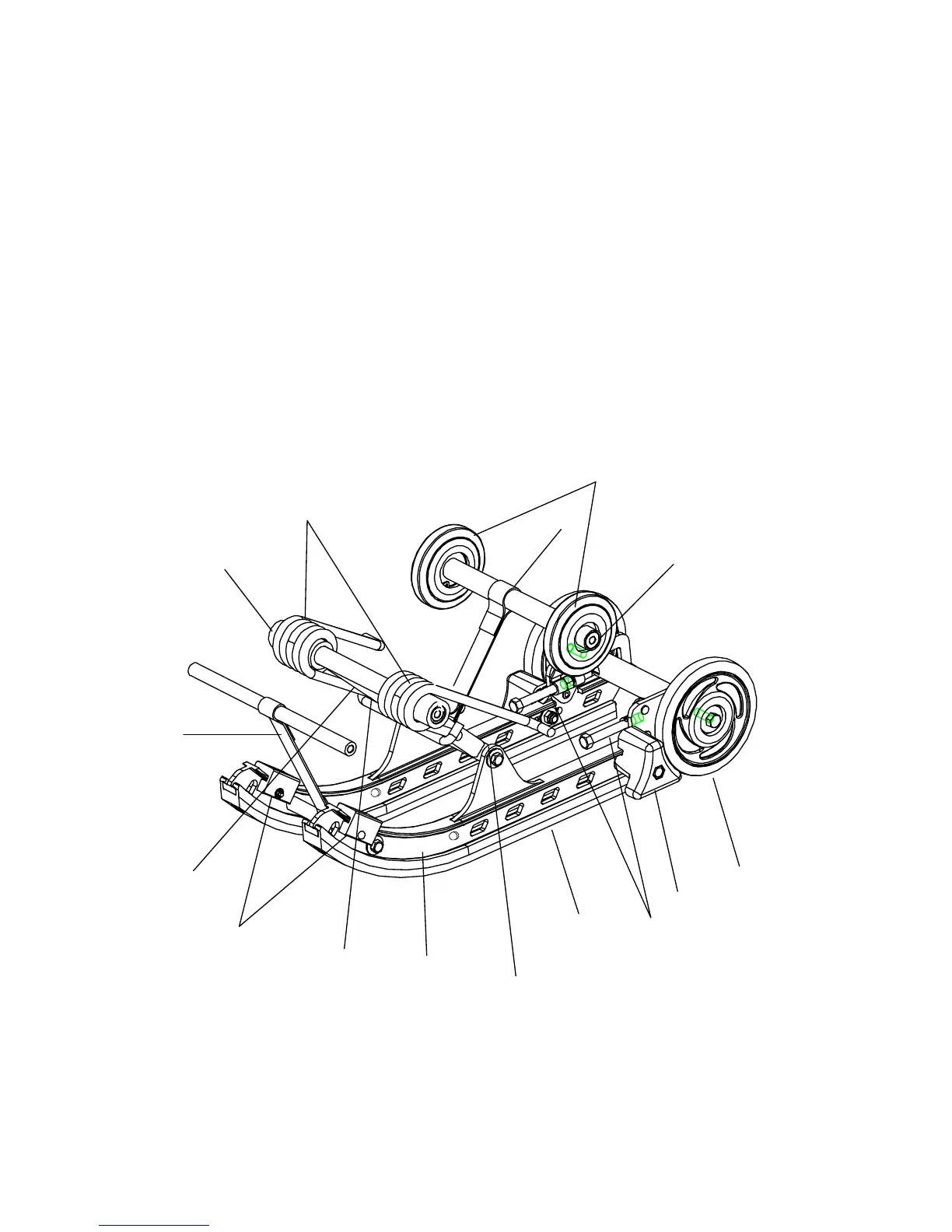

Suspension Lubrication points are indicated by a L.
1. Front Limiter Strap 8. Rail Bumper
2. Torsion Spring Sleeves 9. Torque Arm
3. Torsion Spring 10. Rail
4. Carrier Wheel 11. Slider
5. Rear Limiter Strap 12. Toe Guard
6. Spacer 13. Idler Wheel
7. Adjuster Bolts
4
6
2
1
5
12
11
8
10
9
L
L
3
7
13
