117
MAINTENANCE
Throttle Cable Freeplay
Adjust throttle cable freeplay at the handlebar.

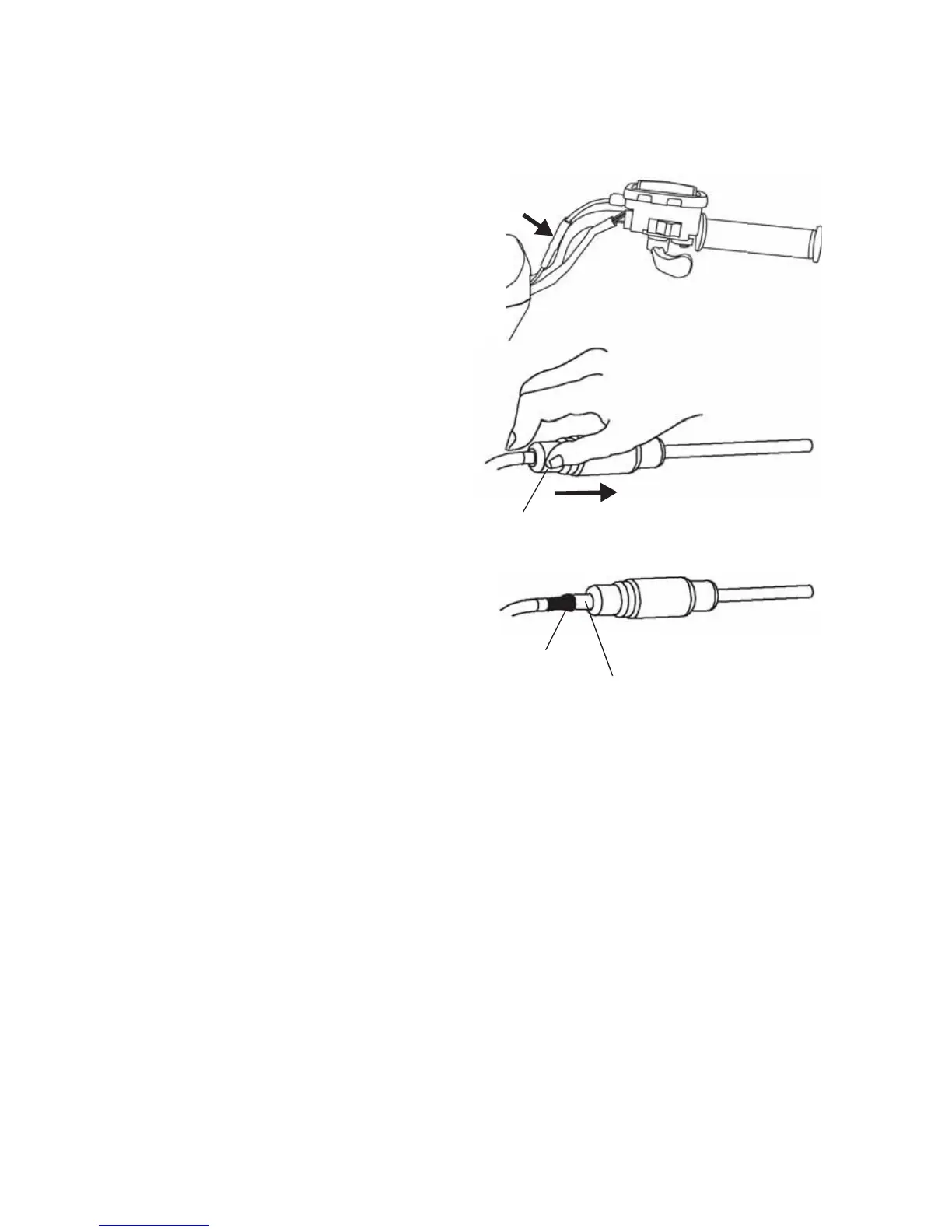

1. Locate the throttle cable
adjuster at the handlebar.
2. Squeeze the end of the
rubber boot and slide it far
enough to expose the end of
the inline cable adjuster.
3. Loosen the adjuster lock nut.
4. Rotate the boot to turn the
adjuster until 1/16" to 1/8"
(1.5-3 mm) of freeplay is
achieved at the thumb lever.
While adjusting freeplay, be
sure to flip the throttle lever
back and forth.
5. Tighten the lock nut.
6. Squeeze the end of the
rubber boot and slide it over
the cable adjuster to its
original position.
Lock Nut
Adjuster
Boot
