Polaris 2878839 - Attach Supports and Middle Section

7515243-418E
A-7515243
FRONT BRUSHGUARD
KIT PN 2878839
- 2-
Imprimé en Chine / Printed in China
INSTALLATION INSTRUCTIONS

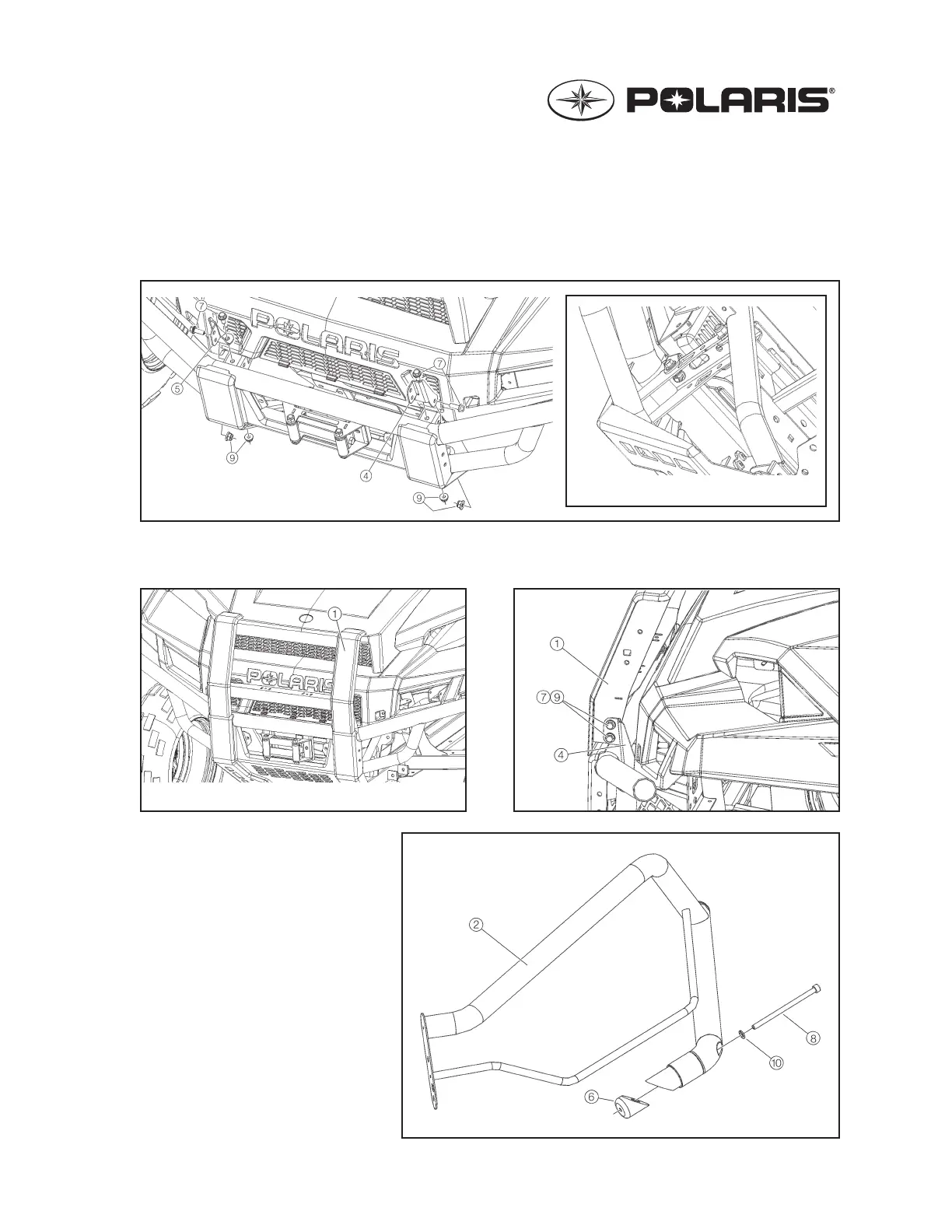

1. Position and fasten the (2) left d and right e supports onto the existing front bumper using (4) M8-1.25 X 20 mm
flange bolts g and (4) M8-1.25 flange nylock nuts i (finger tighten at this time).
2. Position and fasten the middle section of the front brushguard  onto the left d and right e supports installed
in step 1 using
(4) M8-1.25 X 20 mm flange bolts g and (4) M8-1.25 flange nylock nuts i (finger tighten at this time).
FRONT VIEW
FRONT VIEW
LEFT FRONT
VIEW
3. Position the taper block f onto the
end of the left brushguard section 
and fasten using a M8-1.25 X 130 mm
Allen socket machine screw h and a
M8 lock washer j. Tighten until the
taper block f leaned against the left
section.
Do not overtighten to facilitate the
insertion.
Under View - Left Side
