6.18
ENGINE

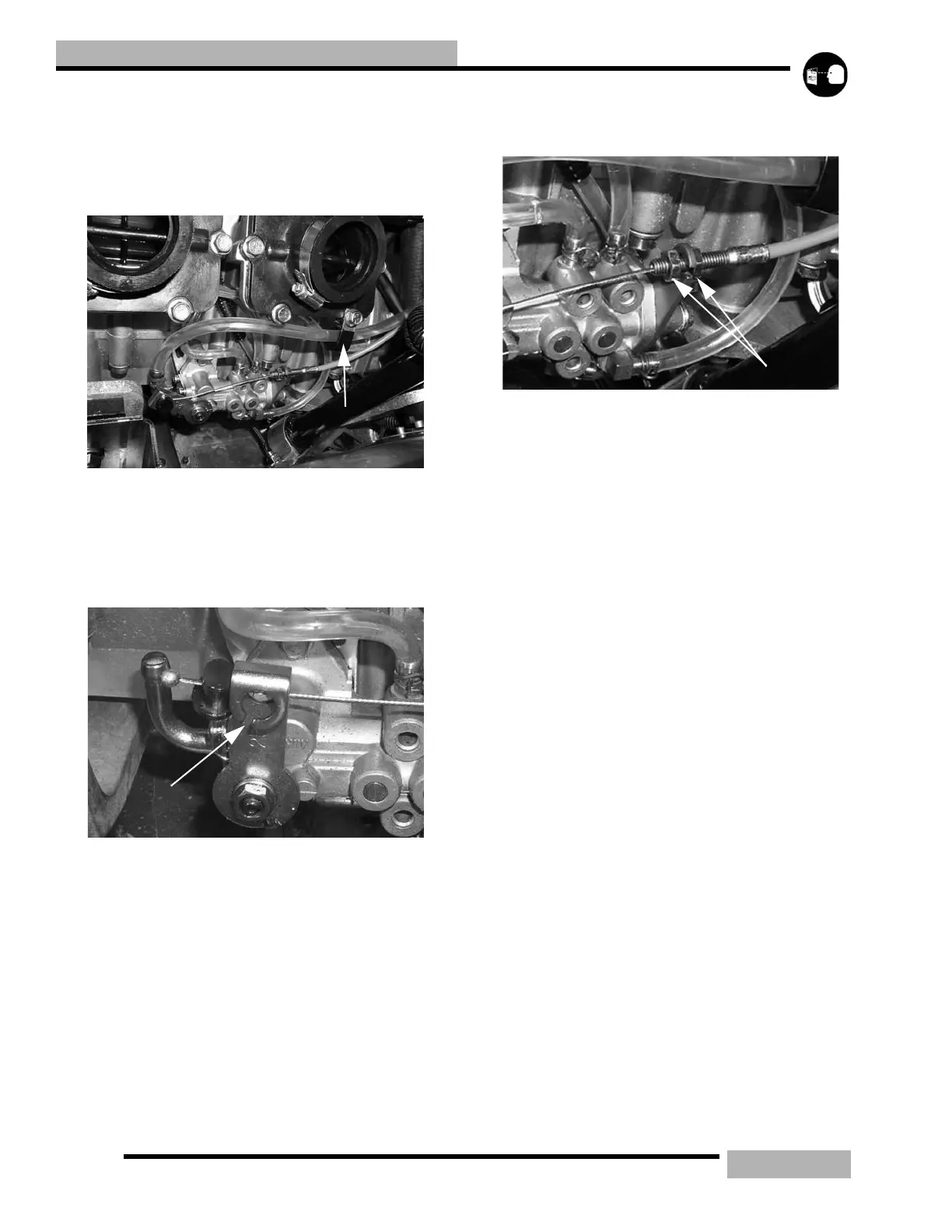

30. Remove the LH nose pan plug located on the nose pan
next to the shock tower. This will allow access to the front
fasteners for the LH chassis brace.
31. Remove and plug the oil supply line going to the oil pump,
and route it through the guide (18).
32. Lift the front of the engine up and then tilt the rear so that
the engine straps clear the motor mount studs.
33. Carefully place the engine on top of the shock tower brace.
34. Remove the oil cable from the oil pump lever by holding
the pump open and rotating the cable and keeper to the slot
(19) in the pump arm.
35. Remove the cable from the engine. Loosen up the lock
nuts (20).
36. Remove the engine from the chassis.
